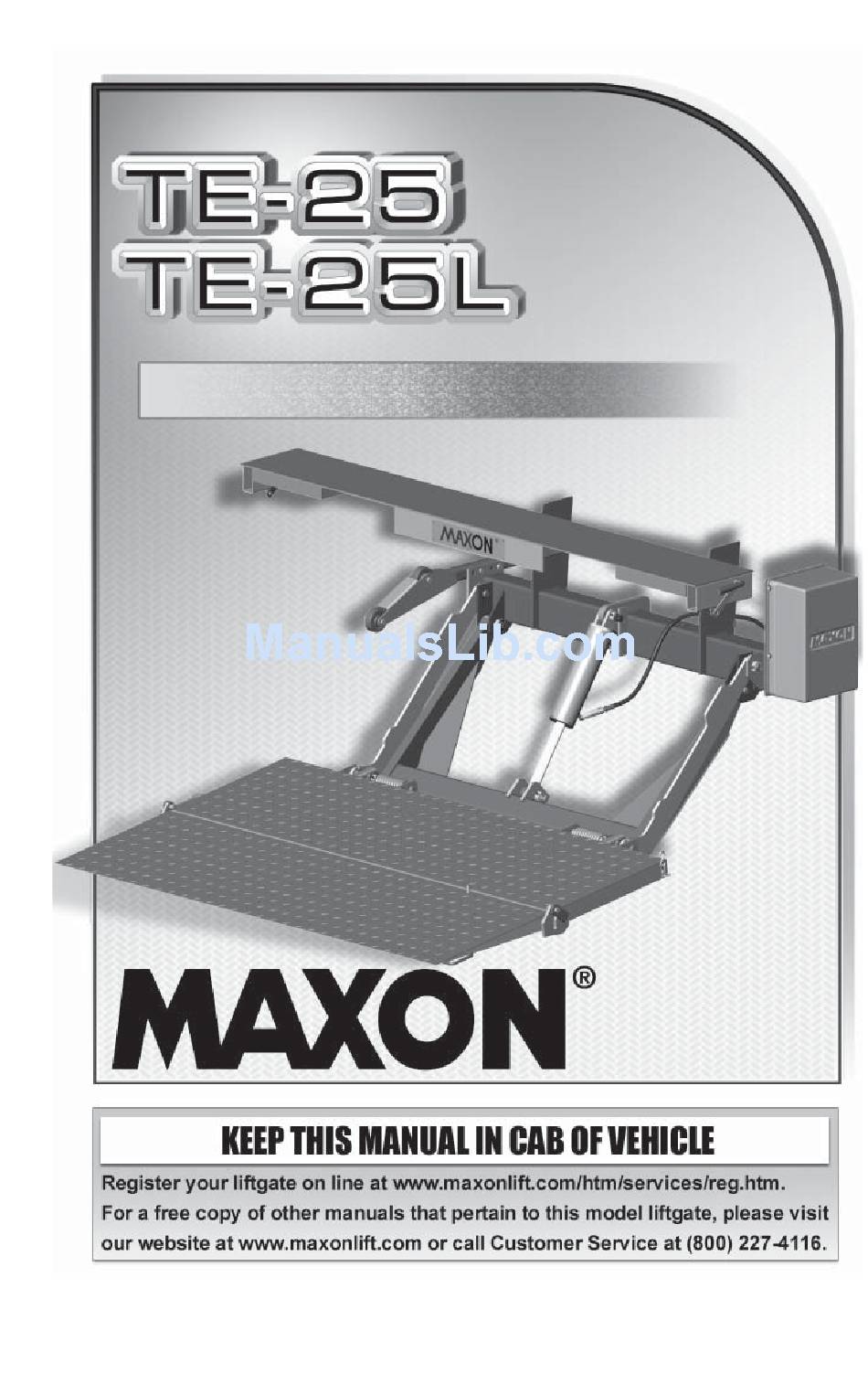

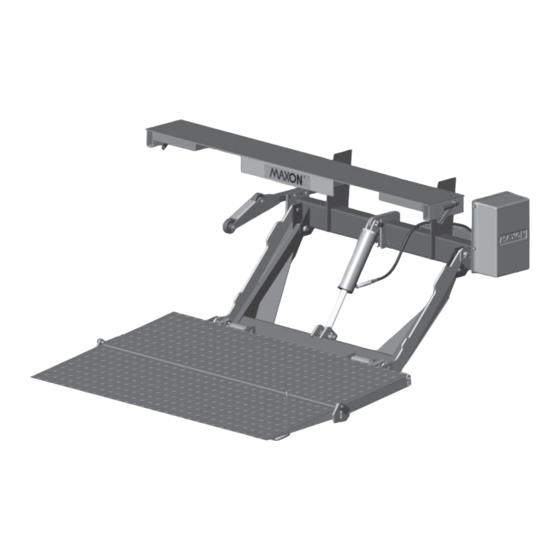

  • Page 1 M-11-19 MARCH 2013 OPERATION MANUAL © 2013 MAXON LIFT CORP.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS WARNINGS ................4 LIFTGATE TERMINOLOGY ............ 6 PAINTED MODELS ..............6 GALVANIZED MODELS ............7 RECOMMENDED DAILY OPERATION CHECKS ....8 ATTACH DECALS ..............10 FORKLIFT ADVISORY ............12 ROADSIDE OPERATION ADVISORY ........13 OPERATION ................14...

  • Page 4: Warnings

    5. Comply with all attached instruction decals and warning decals. 6. Keep decals clean and legible. If decals are illegible or missing, have them replaced. Get free replacement decals from Maxon. 7. Never drive a forklift on the Liftgate platform.
  • Page 5 THIS PAGE INTENTIONALLY LEFT BLANK...

  • Page 6: Liftgate Terminology

    LIFTGATE TERMINOLOGY PAINTED MODELS CONTROL SWITCH LIFT CYLINDER EXTENSION CONTROL PLATE HANDLE PLATFORM OPENER LIFT FRAME PARALLEL ARM PLATFORM PUMP COVER MAIN FRAME WEDGE FLIPOVER FIG. 6-1...

  • Page 7: Galvanized Models

    GALVANIZED MODELS CONTROL SWITCH EXTENSION PLATE LIFT CYLINDER DOCK BUMPER PLATFORM OPENER LIFT FRAME PARALLEL ARM PUMP COVER MAIN FRAME STEP PLATFORM WEDGE FLIPOVER FIG. 7-1...

  • Page 8: Recommended Daily Operation Checks

    RECOMMENDED DAILY OPERATION CHECKS NOTE: Before you check the Liftgate, park vehicle on fl at ground and set the parking brake. NOTE: If any of the following operation checks reveal a need to service or repair Liftgate, do not operate the Liftgate until a qualifi...
  • Page 9  With the platform at ve- hicle bed height and no load on platform, outboard edge of platform must be higher than extension plate as shown in the YES illustration. If the LEVEL LINE platform is tilted up like FIG. 9-1 the YES illustration, you can operate Liftgate.

  • Page 10: Attach Decals

    ATTACH DECALS NOTE: Ensure there is no residue, dirt or corrosion where decals are attached. If necessary, clean surface before attaching decals. CAPACITY DECAL P/N 220382 DECAL P/N 264507 CAPACITY DECAL (SPECIAL LIFTGATES ONLY) P/N 220387 DECAL P/N 282479-01 DECAL (2 PLACES, LH SIDE NOT SHOWN) DECAL...
  • Page 11 WARNING DECAL RAISE/LOWER DECAL P/N 265736-01 P/N 264507 WARNING DECAL P/N 282479-01 INSTRUCTION DECAL P/N 251867-03...

  • Page 12: Forklift Advisory

    FORKLIFT ADVISORY WARNING Keep forklift OFF of platform. FIG. 12-1 FIG. 12-2...

  • Page 13: Roadside Operation Advisory

    & vehicle. Making the loading area more visible to passing traffi c can help reduce the chance of injury and damage. NOTE: MAXON recommends placing at least 2 traffi c cones on the traf- fi c side of the platform loading area as illustrated below. Remove cones after platform is stowed and before moving the vehicle.

  • Page 14: Operation

    OPERATION CAUTION Before lowering Liftgate, make sure chain (FIG. 14-1A) is se- cured to platform and hooked to handle on the fl ipover. 1. Standing to the side of EXTENSION platform (FIG. 14-1), PLATE push down control PLATFORM handle if equipped (FIG.14-1A), and push HANDLE FIG.
  • Page 15 3. Unhook chain from HANDLE FLIPOVER handle on the fl ipover CHAIN (FIG. 15-1A). Use handle (FIG. 15-1B) to unfold the fl ipover (FIG. 15-1). HOOK UNHOOKING CHAIN FIG. 15-1A FLIPOVER USING HANDLE FIG. 15-1B UNFOLDING FLIPOVER FIG.15-1 NOTE: While operating the Liftgate, release toggle switch to stop the platform.
  • Page 16 OPERATION - Continued WARNING A load should never extend past the edges of the platform. Do not place unstable loads on platform and do not allow load to exceed the lifting capacity of the Liftgate. If standing on plat- form, do not allow your feet to extend beyond the inboard edge of the platform.
  • Page 17 WARNING Pulling the load from vehicle to platform can result in a fall from platform and serious injury. When unloading vehicle, always push the load out on the platform. INBOARD 7. Load the platform at bed level EDGE (FIG. 17-1) as follows. Push load out of the vehicle to cor- TRUCK rect position on the platform.
  • Page 18 OPERATION - Continued WARNING Never move the vehicle unless the Liftgate is properly stowed. 9. Before moving the vehicle, prepare the Liftgate as follows. Make sure load is removed from platform. If the platform is at bed level, FIG. 18-1A push the toggle switch to the LOWER position as shown in FIG.
  • Page 19 11. Use handle (FIG. 19-1A) to fold fl ipover (FIG. 19-1). USING HANDLE FIG. 19-1A FOLDING FLIPOVER FIG. 19-1 WARNING Keep hands clear of the extension plate when folding the platform under the extension plate. 12. Fold the fl ipover (FIG. 19-2). Hook the chain on the handle (FIG.
  • Page 20 CAUTION Before raising Liftgate, make sure chain is secured to platform and hooked to handle on the fl ipover. 13. Fold the platform against opener (FIG. 20-1). OPENER PLATFORM FOLDING PLATFORM AGAINST OPENER FIG. 20-1 CAUTION Stow Liftgate under hydraulic pressure.
