- Page 1 MultiTel 2 867 / 868 / 915 MHz Operating instructions Keep the operating instructions in a safe place! 182030001_EN_0514...
-
Page 2: Table Of Contents
Product types Technical data Operation Bidirectional radio system Initial operation Power supply Operating mode Menu mode Programming the transmitter Changing the batteries Cleaning and care of the device Ⓒ elero GmbH EN | 3 Ⓒ elero GmbH 2 | EN... -
Page 3: General Information
Repair Notes on the operating instructions Address The contents are arranged by the life phases of the MultiTel 2 radio remote control (referred to below as Disposal the "device"). The manufacturer reserves the right to make changes to the technical data in the operating instructions. They... -
Page 4: Intended Use
Predictable misuse is considered use that is not If you did not purchase the device directly from elero, in accordance with the purposes approved by the contact the supplier of the device. -
Page 5: Safety
The device is designed for use as specified in the chapter on "Proper use". Improper use Ⓒ elero GmbH EN | 9 Ⓒ elero GmbH 8 | EN... -
Page 6: Requirements For Personnel
It can be used exclusively for bidirectional data or permanently reduce attention span and judgement communications (compatible with the elero ProLine 2 (e.g. fatigue). program). ‰ Minors or persons under the influence of alcohol, drugs... -
Page 7: Device Explanation

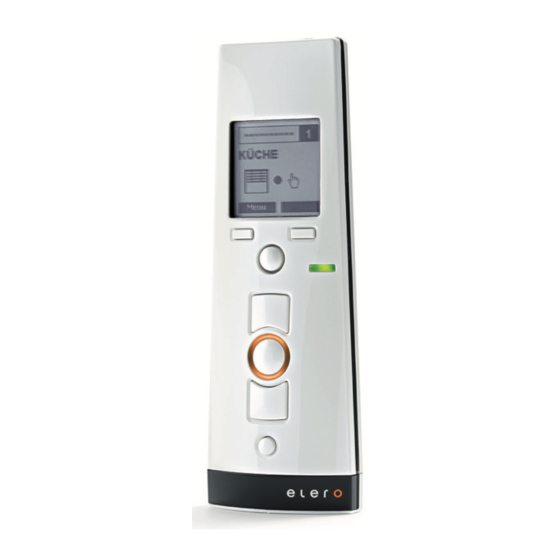

13. DIP switch 2 (for experts) Tab. 2 MultiTel 2 technical parameters The values of your device, which depend on the model, can be found on the name plate. Tab. 1 Explanation of device (pictures of front and back) Ⓒ... -
Page 8: Operation
(combination of up to a maximum of 5 programmed channels from the available individual channels) ‰ Master channel for common addressing of all individual channels, availability of master channel can be switched Ⓒ elero GmbH EN | 15 Ⓒ elero GmbH 14 | EN... -
Page 9: Power Supply
The bottom display row shows the functions that can be selected with the two selection keys (soft keys) in the current operating mode. Ⓒ elero GmbH EN | 17 Ⓒ elero GmbH 16 | EN... - Page 10 Icons in the position field Tab. 3 Pictograms in the toolbar of the display Icons in the product field Down Roller shutter Upper end position Interior shading Lower end position Ⓒ elero GmbH EN | 19 Ⓒ elero GmbH 18 | EN...
- Page 11 The selected group is controlled The status LED can display different colours: by a travel command. With the MultiTel 2 individual channels can be combined Status display (status LED) and its meaning into five different groups for group control. The master...
- Page 12 Exception: Alarm movements are a result of reported alarms of corresponding sensors (e.g. wind and rain sensors) are still executed. Ⓒ elero GmbH EN | 23 Ⓒ elero GmbH 22 | EN...
-
Page 13: Menu Mode
Information on the software version Exiting the current menu level: Select "Back", if necessary select "Back" repeatedly until you are returned Fig. 4 Menu structure of the MultiTel 2 to the initial display or otherwise press and hold "Back". Ⓒ elero GmbH EN | 25 Ⓒ... - Page 14 15 characters. a correspondingly allocated text field. "Groups" submenu Individual channels (maximum 5 channels per group) Joystick functions in menu mode in the MultiTel 2 can be allocated for five selectable groups. A name for Movement down Scrolls down or changes the selected group can be defined in two text fields each the value (-).
- Page 15 Display languages in the MultiTel 2 display Important: The customised product views will be lost and must be German English French redefined if the device is reset to the factory settings. Italian Spanish Portuguese Dutch Swedish Danish Intermediate position You can set a runtime from zero to 360 seconds for...
- Page 16 Without runtime setting Ventilation Without position runtime setting Function All On/Off All On • Expert INFO On/Off INFO On Tab. 10 Factory settings of the MultiTel 2 Ⓒ elero GmbH EN | 31 Ⓒ elero GmbH 30 | EN...
-
Page 17: Programming The Transmitter
4. Press the DOWN key immediately (maximum 1 second) after the start of any downward movement. The status display lights up briefly. The blind stops. The channel is now programmed by the transmitter. Ⓒ elero GmbH EN | 33 Ⓒ elero GmbH 32 | EN... - Page 18 Approaching the lower end position (roller shutter/awning) Press the DOWN key briefly. The blind approaches the lower end position or the awning opens completely. Ⓒ elero GmbH EN | 35 Ⓒ elero GmbH 34 | EN...
- Page 19 2. The blind travels to the stored intermediate position. Venetian blinds are automatically tilted after reaching Tab. 11 Intermediate positions of blinds the intermediate position if a tilting position has Ⓒ elero GmbH EN | 37 Ⓒ elero GmbH 36 | EN...
- Page 20 After 30 pulses the deleted. Combio JA Pulse terminates programming the pulse time. 4.6.9 Expert settings DIP switch 1 on the back of the device, under the cover: OEM setting Ⓒ elero GmbH EN | 39 Ⓒ elero GmbH 38 | EN...
-
Page 21: Changing The Batteries
EC Declaration of conformity Changing the batteries Important: elero GmbH hereby declares that the device complies with Replace batteries only with batteries of the the basic prerequisites and the other relevant provisions of identical type. the directives. The complete declaration of conformity can 1. -
Page 22: Elero Gmbh En
The current applicable international, national and regional laws and regulations must be observed for disposal of the Tab. 12 Troubleshooting the MultiTel 2 device. Repair Ensure that materials and assemblies are recycled, disassembled and separated to prevent environmental and Please contact your dealer if you have any questions. - Page 23 Ⓒ elero GmbH 44 | EN...
