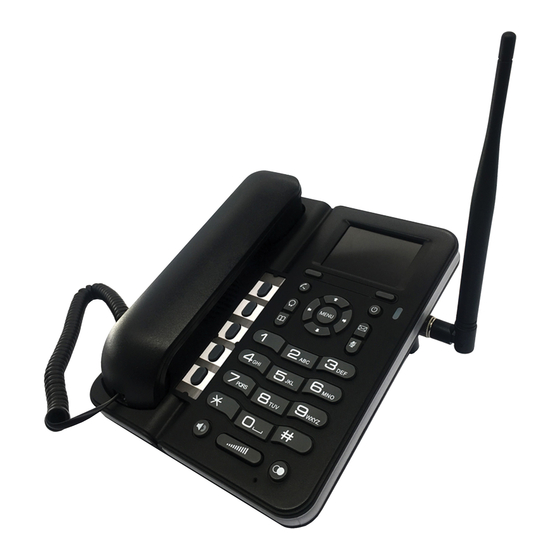

Vogtec D379H User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Vogtec D379H User Manual
CONTENTS
SAFETY INSTRUCTIONS..................................................................................2
PHONE CONTROLS ......................................................................................3
PHONE FEATURES .......................................................................................4
Make a call..................................................................................................................................................4
Answer a call...............................................................................................................................................5
Emergency calls..........................................................................................................................................5
To make an international call......................................................................................................................5
Call Voicemail.............................................................................................................................................5
Call log........................................................................................................................................................5
Received Calls.............................................................................................................................................5
Dialed Calls.................................................................................................................................................6
Missed Calls................................................................................................................................................6
Call Duration...............................................................................................................................................6
PHONEBOOK ..................................................................................................6
SETTINGS..........................................................................................................6
Call settings................................................................................................................................................6
Phone settings............................................................................................................................................6
Display........................................................................................................................................................7
Security settings.........................................................................................................................................7
MESSAGE .........................................................................................................7
Read message..............................................................................................................................................7
Write message.............................................................................................................................................7
SMS settings...............................................................................................................................................8
FM RADIO..........................................................................................................8
TOOLS ...............................................................................................................8
Alarm..........................................................................................................................................................8
Calculator....................................................................................................................................................9
Calendar......................................................................................................................................................9
Microdata Finland Oy
www.microdata.fi
support@microdata.fi

Advertisement

Table of Contents
loading

Related Manuals for Vogtec D379H

Summary of Contents for Vogtec D379H

  • Page 1: Table Of Contents

    Vogtec D379H User Manual CONTENTS SAFETY INSTRUCTIONS..................2 PHONE CONTROLS ..................3 PHONE FEATURES ..................4 Make a call..............................4 Answer a call...............................5 Emergency calls............................5 To make an international call........................5 Call Voicemail.............................5 Call log................................5 Received Calls.............................5 Dialed Calls..............................6 Missed Calls..............................6 Call Duration...............................6 PHONEBOOK ....................6 SETTINGS......................6...
  • Page 2 Bluetooth..............................9 STK................................9 Parts List..............................9...

  • Page 3: Safety Instructions

    Safety Instructions These instructions are intended for the safe and effective use of your phone. Please follow these guidelines. Failure to do so might cause the product to malfunction, or even a potential hazard to your health. Do not use your phone while driving. Park the car before making or answering a call. Turn off your phone when refueling.

  • Page 4: Phone Controls

    Phone Controls Hook Mute Left soft key Down direction LCD Screen Alphanumeric keypad Up direction key Redial Menu/Select Volume Right soft key Loudspeaker/Hands free ON/OFF key Phone book LED indicator Memory key/Speed dial Right direction key Headset key Message Transfer key Left direction key...
  • Page 5 Cable plug Battery Cover Micro USB port 3.5mm headphone audio port TRANSFER keys •With a hold and another call in progress, press to transfer the call. MENU key •Menu: Press to open and access the phone menu. EARPHONE key •Press to hear the voice in earphone mode. PHONEBOOK key •Press to open phonebook menu select contacts to make a call or send message, Memory key...
  • Page 6 INDICATOR light •RED: Charging, if full then will off. GREEN: Un-read message, miss call, lower battery. POWER ON/OFF key •Press to end an active call. •Press to exit a menu and return to standby mode. •Power On/Off: Press and hold for 3 seconds to turn the phone on or Off. DIRECTION keys (UP/DOWN/RIGHT/LEFT) key •Press to move the selection up or down during options programming.
  • Page 7 Installation Follow the steps below to install the D379H desk phone Remove the battery cover, then remove the battery and insert an SIM card into the device. Insert the battery into the battery compartment, ensure the polarity on the battery matches the polarity of the...

  • Page 8: Phone Features

    Insert the desk stand in position. Phone features Make a call You have several choices for placing a call. Dial the number Lift the handset or press HANDFREE key, dial the phone number and then select SEND key to dial out the number. Dial from contacts Open the Phonebook list and select the contact you wish to call.

  • Page 9: Emergency Calls

    Mute a call Press Mute to deactivate the microphone. Press Mute again to return to normal call conversation. Adjust the call Press VOLUME key to increase or decrease the volume. Hold a call Press Menu key to hold the call. Press Menu key to unhold the call. Access the Phonebook Press Phonebook to access the phonebook list.

  • Page 10: Missed Calls

    Missed Calls The phone records the latest list of unanswered incoming calls. 1 In the Calls home menu, select Missed Call. 2Press Up or Down key to browse the list. 3Press Option and then select; Details,Call, Write message,Add to contacts, Delete or Delete all. Call Duration The phone records the accumulated time of calls for dialed calls, received calls, and the duration of time of the latest call.

  • Page 11: Display

    Power management To display the battery remains. Display Idle display settings Set on/off for displaying Time & date Backlight Select the backlight of the LCD to ： Always on,5 seconds on,10 seconds on,15 seconds on,20 seconds on,30 seconds on. Auto Keypad Lock Set the locking behavior of the keypad to：Off, 30 Seconds, or 1 min.

  • Page 12: Sms Settings

    1 Press Message key or Menu and then select Message>Write message 2 Type the message. You will be able to track the number of characters that you are creating as you type. Press Clear key to delete a wrong input, press and hold Clear key to delete the whole entry. Press # key to set the text input mode;...

  • Page 13: Tools

    In the FM radio home menu, press Select>Options>Auto search and save. In the prompt, press “OK” to commence. The phone will scan for clear FM radio channels and stores them in the Channel list memory. Press Up or Down key to change channel. Volume: Press left side of Volume key to decrease and press right side of Volume to increase the sound.

  • Page 14: Parts List

    To get the list of services available for your phone or for assistance on any of these services, please call your SIM network. There are different menus according to different SIM cards. Parts List PICTURE DESCRIPTION D379H phone base unit. Handset Power Adapter In: AC 100-240V 0.25A Out: ; DC 5V 1A USB cable For charging and upgrading.
  • Page 15 Input: AC 100-240V 50/60Hz 0.25A Output: DC 5V,1000mA VOGTEC TECHNOLOGY CO.. LIMITED hereby declares that this Phone is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. This information has to be presented in such a way that the user can readily understand it. Typically, this will necessitate translation into every local language (required by national consumer laws) of the markets where the equipment is intended to be sold.
