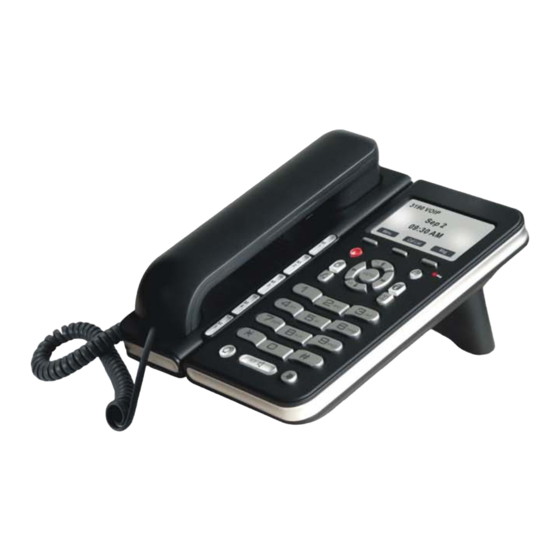

Summary of Contents for Vogtec 3190IB
-
Page 2: Table Of Contents
2‐7. CALL FORWARD ......................... 9 3.CONFIGURATION THROUGH PHONE INTERFACE ................ 10 3‐1. TIME AND DATE ....................... 10 3‐2. DISPLAY CONTRAST ...................... 10 3‐3. BACKLIGHT INTENSITY ...................... 10 3‐4. RING TYPE ........................ 11 3‐5. LCD DISPLAY LANGUAGE .................... 11 4.QUICK START FOR WEB CONFIGURATION .................. 12 4‐1. LOGON WEB ........................ 12 4‐2. VOIP SETTINGS......................... 12 5.RESET YOUR PHONE ........................ 14 SAFETY NOTICES .......................... 15 3190IB VoIP Phone User Manual Short_V2.0... -
Page 3: Before Using The Phone
1.Before Using the Phone 1-1.Package Contents • 3190IB VoIP phone base unit. • Handset • Coiled handset connecting cord • One straight Ethernet cable • One power supply • User Guide • 2 wall mount brackets • 1 table bracket... -
Page 4: 1-2.Installation
Connect headset to the headset jack on the back of the phone(Optional. Only if you have a headset and need to use it). Assembly Base and Brackets You could choose one of below two ways to install 3190IB VoIP phone • As a desktop • As a wall mounting phone... - Page 5 Insert with narrow side down as Way No.1 Insert with narrow side up as Way No.2 Wedge Way No.1 Way No.2 It is advisable to choose Way No.2 when you assemble the phone with wall mount brackets. 3190IB VoIP Phone User Manual Short_V2.0...
-
Page 6: Phone Operations
For example：The IP phone of the other side is： 192.168.0.11. You should input： #192*168*0*11**5060#， Star * indicates Dot . Two-SIP account and line 3190IB supports 2 independent SIP accounts. The accounts can support SIP server, user name and NAT configuration independently. Line button 【 】 、 【... -
Page 7: Phonebook Management
2-3. Hold, Mute and Volume Adjustment During a call 】to keep line, press it again to release Press【 Press 【 】to enable Mute function, press it again to disable Press 【 】or【 】to adjust speaker volume 3190IB VoIP Phone User Manual Short_V2.0... -
Page 8: Reject A Call
】 . Select the appropriate list to get access to your desired — 】. number, then press【 3). Press transfer soft key after you hear the back ring Attended Transfer 1). During a call, press 【 】. 2). Do one of the following steps: 3190IB VoIP Phone User Manual Short_V2.0... -
Page 9: Three Party Conference
Choose Line or Line number as you desired Edit Press 【 】or【 】to choose Always/Busy/No answer as you desired Press Save soft key to enable Follow above procedures and choose Off to disable forward 3190IB VoIP Phone User Manual Short_V2.0... -
Page 10: Configuration Through Phone Interface
Press【 Press corresponding soft key to SAVE the settings 】to get back to idle status Press Quit to return. Or press【 3-3. Backlight Intensity To modify the backlight intensity: 】. Press【 Select Configuration>Screen Set>Brightness>Edit 3190IB VoIP Phone User Manual Short_V2.0... -
Page 11: Ring Type
3-5. LCD Display Language 】. Press【 Select Configuration Language Set Edit 】or【 】to select languages, and press corresponding soft key to Save or Quit Use【 Default language is English. VOGTEC can add languages according to customizing. 3190IB VoIP Phone User Manual Short_V2.0... -
Page 12: Quick Start For Web Configuration
Default user name and password is admin. You could configure your phone with this account In this guide, only Logon as Administrator Account would be introduced 4-2. VoIP Settings After you logon in successfully, web would show as below 3190IB VoIP Phone User Manual Short_V2.0... - Page 13 Configure SIP register server IP address or Domain Name -Server Port Configure SIP register server signal port -Account Name/Password/Phone Number Configure Account Name/Password/Phone Number -Enable Register Choose to enable settings -Apply Click to apply above settings 3190IB VoIP Phone User Manual Short_V2.0...
-
Page 14: Reset Your Phone
3.LCD would show POST MODE 4.Press *#168, LCD would display Conf Reset 5.Plug out power supply, then plug in again to accomplish reset After above procedures, the phone settings would turn back to factory default 3190IB VoIP Phone User Manual Short_V2.0... -
Page 15: Safety Notices
Don’t try to dry your product in a microwave oven. The ground Don’t drop your product. Vogtec Technology Co., Ltd Office Add.: 5th Floor, Bldg. 1, Software Park,Keji Zong 2 Rd., High-Tech Zone, Nan Shan District, Shenzhen, 518057, China Tel: +86-755-86168442 Fax: +86-755-86168417 3190IB VoIP Phone User Manual Short_V2.0...
