Installation Guide

6.8 Alarm

Many applications in the ECL Comfort 210 and 310 series have an
alarm function. The alarm function typically activates relay 4 (ECL
Comfort 210) or relay 6 (ECL Comfort 310).
The alarm relay can activate a lamp, a horn, an input to an alarm
transmitting device etc. etc.
The relay in question is activated as long as the alarm condition
is present.
Typical alarms:
• Actual flow temperature differs from the desired flow
temperature.
• An activated circulation pump does not generate a pressure
difference.
• The refill water function does not generate a pressure within
a preset time.
• A universal alarm input (application dependent) is activated.

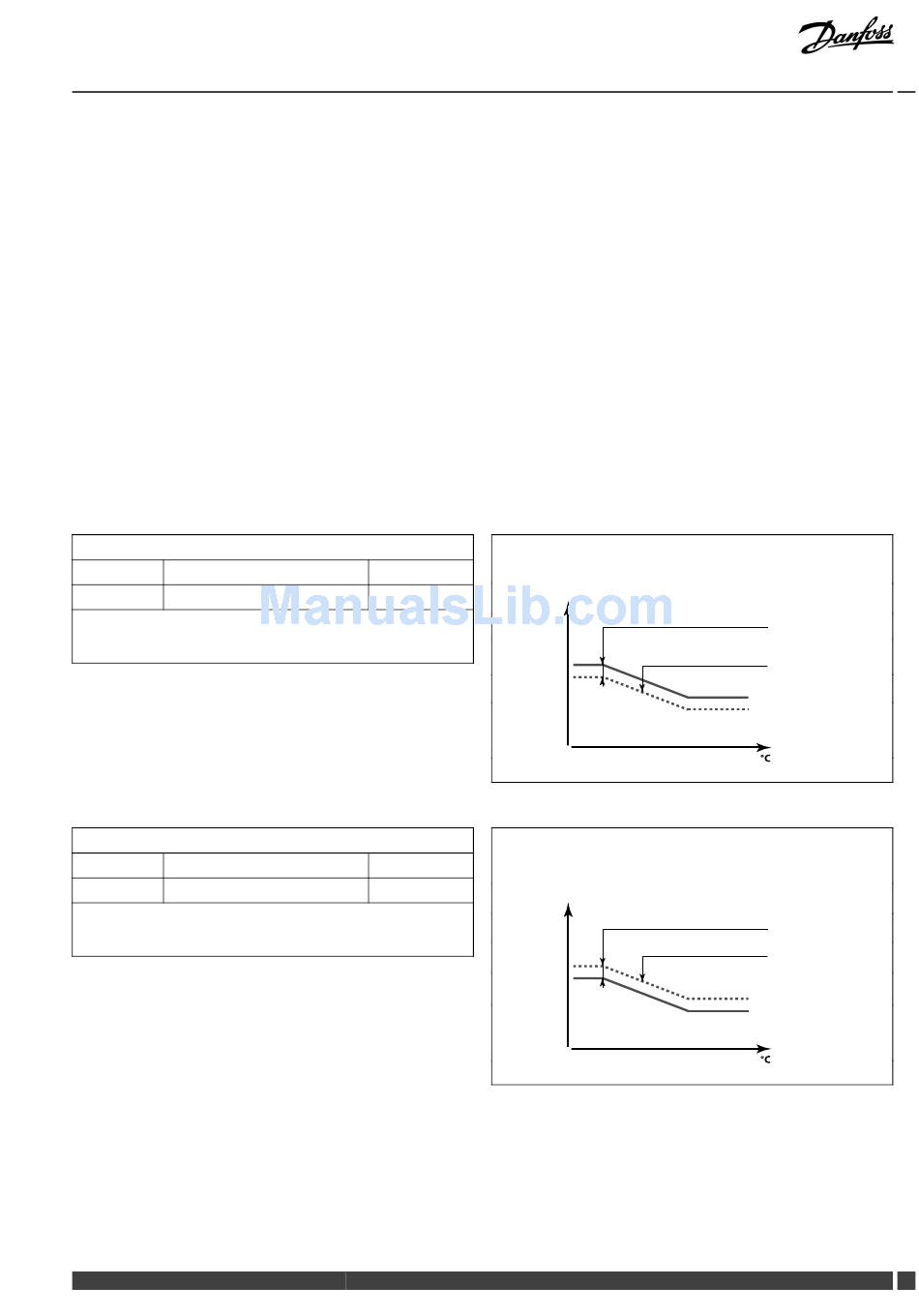

Upper difference
Circuit
2
The alarm is activated if the actual flow temperature increases more than
the set difference (acceptable temperature difference above the desired
flow temperature). See also 'Delay'.
OFF:
The alarm function is not active.
1 ... 30 K: The alarm function is active if the actual temperature
gets above the acceptable difference.
Lower difference
Circuit
2
The alarm is activated if the actual flow temperature decreases more than
the set difference (acceptable temperature difference below the desired
flow temperature). See also 'Delay'.
OFF:
The alarm function is not active.
1 ... 30 K: The alarm function is active if the actual temperature
gets below the acceptable difference.
Danfoss District Energy
ECL Comfort 310, application A367
12147
Factory setting
Setting range
OFF / 1 ... 30 K OFF
12148
Factory setting
Setting range
OFF / 1 ... 30 K OFF
Flow temp. °C
Flow temp. °C
VI.LG.R1.02
Upper difference (set
value)
Desired flow temp.
Outdoor temp.
Lower difference (set
value)
Desired flow temp.
Outdoor temp.
DEN-SMT/DK 105
