Danfoss ECL Comfort 310 Installation Manual page 33

Installation Guide

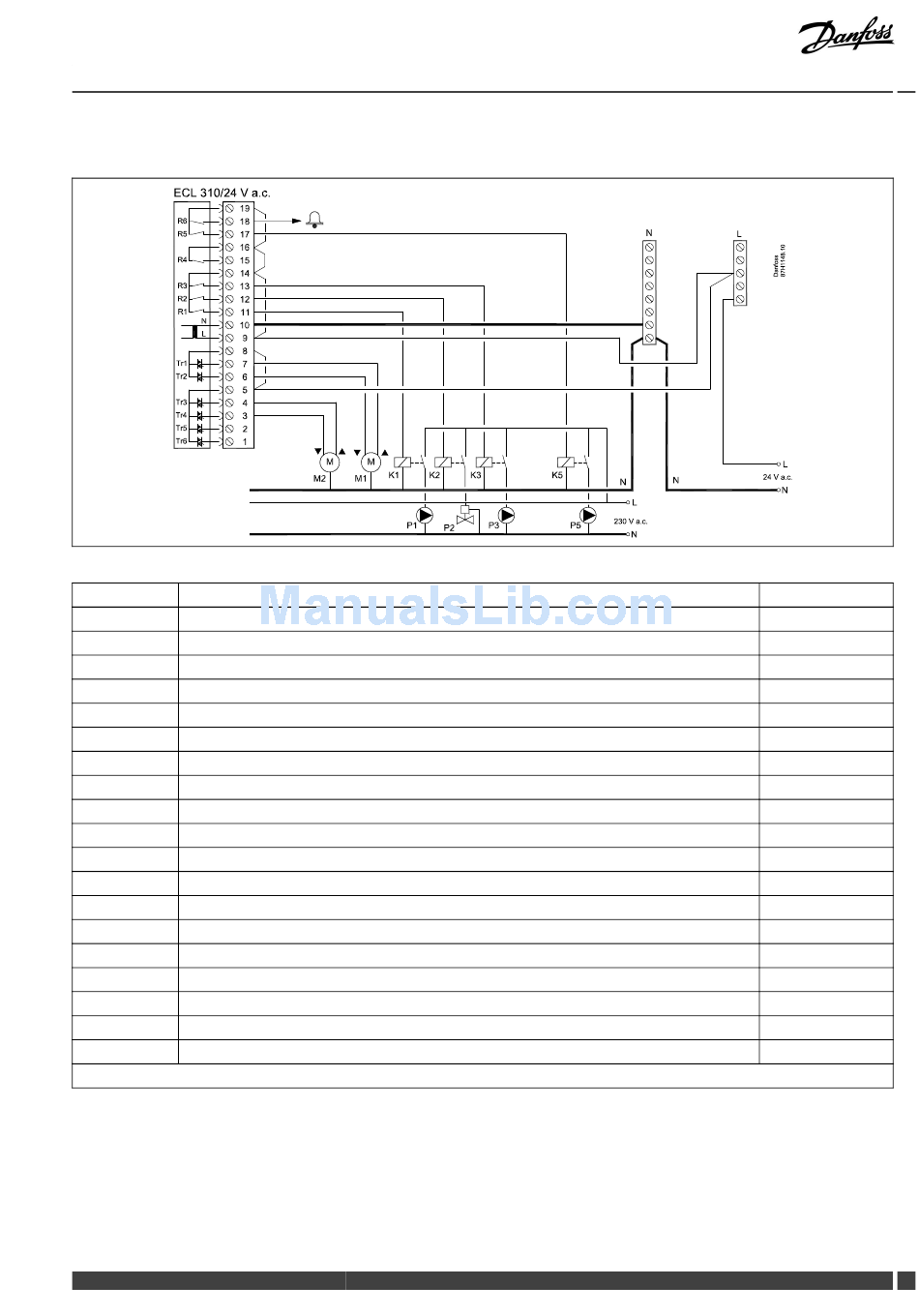

Application A367.1 example c:
Application A367.1 example e: Without P4
Terminal Description
19 Phase for circulation pump and alarm output
18 Alarm
17 K5 Circulation pump, heating, ON / OFF, circuit 2
16 Phase for circulation pump, heating, circuit 2
15
Do not use
14
Phase for pumps / DHW ON / OFF valve
13 K3
DHW circulation pump, ON / OFF, circuit 3
12 K2
DHW ON / OFF valve, circuit 3
11 K1
Circulation pump, heating, ON / OFF, circuit 1
10
Supply voltage 24 V a.c. - (N)
9 Supply voltage 24 V a.c. - (L)
8 M1 Phase for motorized control valve output, circuit 1
7 M1
Motorized control valve - opening
6 M1
Motorized control valve - closing
5 M2
Phase for motorized control valve output, circuit 2
4 M2
Motorized control valve - opening
3 M2 Motorized control valve - closing
2 Do not use
1
Do not use
* Relay contacts: 4 A for ohmic load, 2 A for inductive load
Factory established jumpers:
5 to 8, 9 to 14, L to 5 and L to 9, N to 10
Danfoss District Energy
ECL Comfort 310, application A367
Without P4
VI.LG.R1.02
Max. load-
4 (2) A / 24 V a.c.*
4 (2) A / 24 V a.c.*
4 (2) A / 24 V a.c.*
4 (2) A / 24 V a.c.*
4 (2) A / 24 V a.c.*
1 A / 24 V a.c.
1 A / 24 V a.c.
1 A / 24 V a.c.
1 A / 24 V a.c.
DEN-SMT/DK 33
