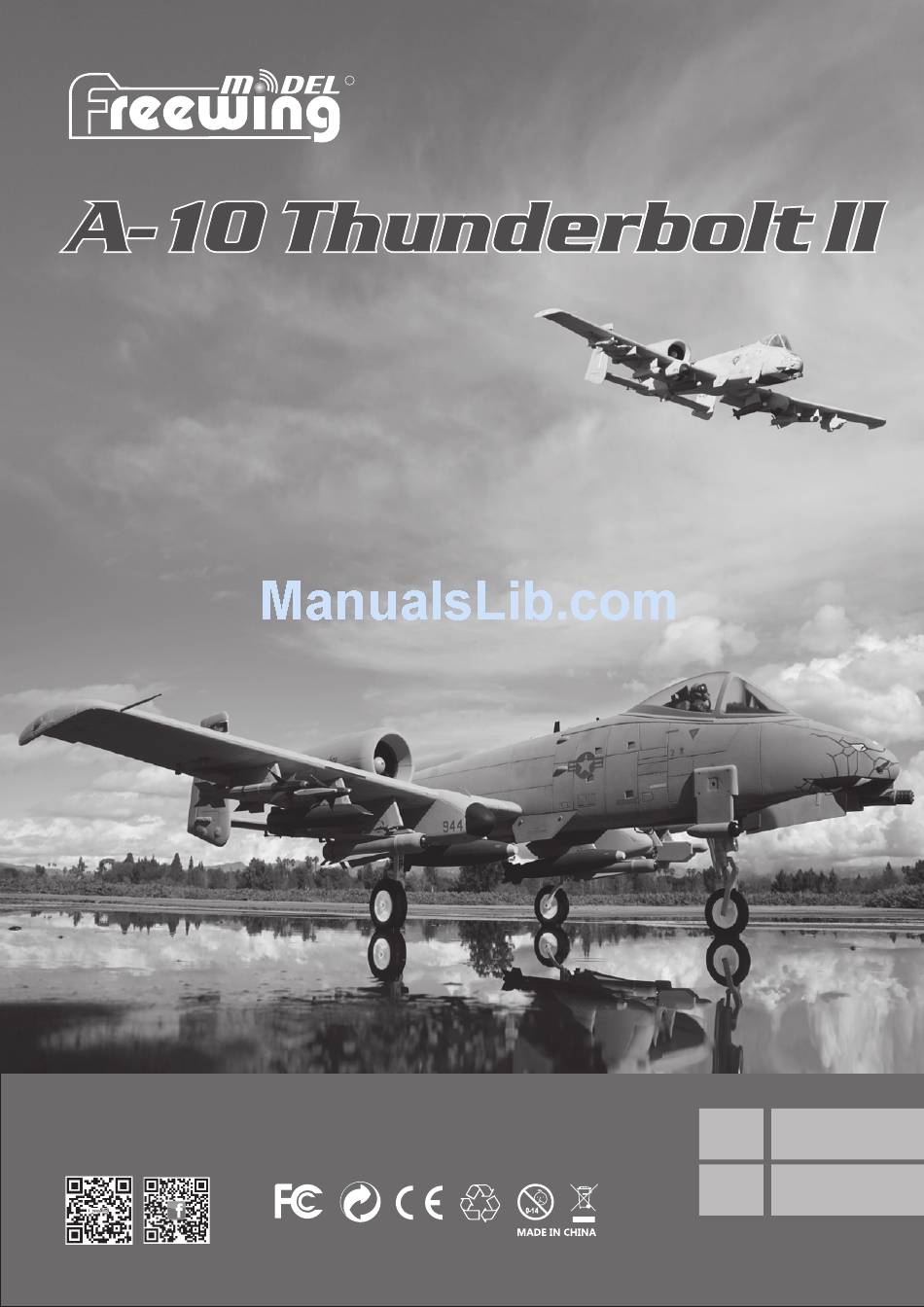

Freewing FJ311 User Manual

A-10 thunderbolt ii 1/10 scale twin 80mm edf jet

Advertisement

Quick Links

R
1/10 Scale Twin 80mm EDF JET
User Manual
Length:1551mm(61.1")
Wingspan:1700mm(66.9")
Weight:4250g (w/o Battery)
EN
1~15
16~30
www.sz-freewing.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FJ311 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Freewing FJ311

  • Page 1 1/10 Scale Twin 80mm EDF JET User Manual Length:1551mm(61.1") Wingspan:1700mm(66.9") Weight:4250g (w/o Battery) 1~15 中 16~30 www.sz-freewing.com...
  • Page 2: Table Of Contents

    Thank you for purchasing our Freewing 80mm EDF jet A-10 thunderbolt II. The original A-10 thunderbolt II is a single-seat twin-engine attack plane, produced by the Fairchild. It is now the only continuous service jet in US Air Force which provided the implement intensive support for the ground forces.
  • Page 3: Product Basic Information

    Stabilizer wing electronic parts equipment servo Pre-installed all No electronic Pre-installed Vertical tail Manual & Decals electronic parts equipment servo Pre-installed all No electronic Engine compartment Glue & Non-slip mat electronic parts equipment Carbon tube Screw A-10 Thunderbolt II Item No.:FJ311...
  • Page 4: Traction Steel Wire Use Instruction

    4pcs Step screws to fix it. A- Screw (PA3x8 4pcs) B- Vertical tail Horizontal tail D- Servos wire E- Screw (PA3x8 4pcs) Step Step Elevator/rudder servo cable Batter y compartment Traction steel wire Step A-10 Thunderbolt II Item No.:FJ311...
  • Page 5: Install Engine Compartment

    (PWM4x8 4pcs) 1.Insert the carbon tube A,B into the fuselage. 2.Insert the connection cable to the control board, then install the left/right main wing on the fuselage. Step 3.Use 4pcs screws to fix the main wing. A-10 Thunderbolt II Item No.:FJ311...
  • Page 6: Install Missiles

    Missiles Please according the pictures as below to install the weapons pylons 2 pylons 1 pylons 3 pylons 4 AIM-9 Missiles AIM-9 pylons Step Step AGM-65 Missiles LAU-131 AGM-65 Missiles Mk-84 AN/ALQ-131 Mk-84 Step Step A-10 Thunderbolt II Item No.:FJ311...
  • Page 7: Install Scale Accessories

    Aileron pushrod mounting hole Pushrod diameter Ø1. 5mm 63mm (2-1/2") Elevator pushrod size Elevator pushrod mounting hole Pushrod diameter Ø1. 5mm 63mm (2-1/2") Rudder pushrod size Rudder pushrod mounting hole Pushrod diameter Ø1. 5mm 48mm (1-7/8") A-10 Thunderbolt II Item No.:FJ311...
  • Page 8: Control Board Connection Diagram

    Connect the elevator channel in the receiver Connect the throttle channel in the receiver RECEIVER Connect the rudder channel in the receiver Connect the landing gear channel in the receiver Connect the flap channel in the receiver A-10 Thunderbolt II Item No.:FJ311...
  • Page 9: Battery Size

    6S 22.2V 4000mAh ~ 6S 22.2V 5200mAh (2pcs) > Discharge rate of C 30C Center of gravity 78mm (3-1/16") A-10 Thunderbolt II Item No.:FJ311...
  • Page 10: Control Direction Test

    PNP lnstall instructions Control direction test A-10 Thunderbolt II Item No.:FJ311...
  • Page 11 Setting range is as following: Open flap 50mm, pre-set 3mm elevator down Open flap 32mm, pre-set 2mm elevator down At last, according to your operating, you can increase or reduce its rate. A-10 Thunderbolt II Item No.:FJ311...
  • Page 12: Accessories Description Servos Introductions

    17g Digital MG Positive Parameter of motor MO035303 3530-1900KV Unit: (mm) Use voltage Efficiency Use ESC EDF Weight Max power Use motor motor(KV) Thrust(kg) Current(A) Item No. (g/w) O/R BL 22.2(6S) E72310 3530 1900 3300 2000 1.65 A-10 Thunderbolt II Item No.:FJ311...
  • Page 13 We have provided more power options for the A-10, you could choose another 90mm engine compartment set, and follow the above steps to install your new 90mm EDF power system. The assemble size of 90mm engine compartment set, suit for all Freewing 90mm EDF power system and 130A ESC. ESC cable specification...
  • Page 14 4.One side pushrod insert to the servo arm,adjust its length. And insert the clevis to the aileron horn. 5.Repeat the above four steps, install the other side main wing servo and flap servo. A-10 Thunderbolt II Item No.:FJ311...
  • Page 15: Install Nose Landing Gear

    ( 2-7/8" ) Note:When installing,please check the flat position of spareparts,when screw to fix,the flat position must face to the screw hole, just like this, it can fix successfully, the spareparts don t rotate and fall off. A-10 Thunderbolt II Item No.:FJ311...
  • Page 16: Install Rear Landing Gear

    Main gear main rod (Ø 85x26 JIMI Screw (M4x3) JIMI Screw (M4x3) L-Slant strut Electronic retract (Ø3.5X9.2mm) Spring Main landing gear C-Buckle (Ø1.5mm) Screw (PWA3x12 4pcs) Main gear strut Rear gear plastic cover Step Step Step Step Step A-10 Thunderbolt II Item No.:FJ311...
  • Page 17 Dongguan Freewing Electronic Technology Ltd HK Freewing Model International Limited Add.:FeiYi Building,face to Labor Bureau, Fumin Middle Road, Dalang Town, Dongguan City,Guangdong Province, China Web: http://www.sz-freewing.com Email:freewing@sz-freewing.com Tel: 86-769-82669669 Fax:86-769-82033233 东 莞市飞翼 电子科技有限 公司 香 港 飞 翼 模 型 国 际 有 限 公 司...
