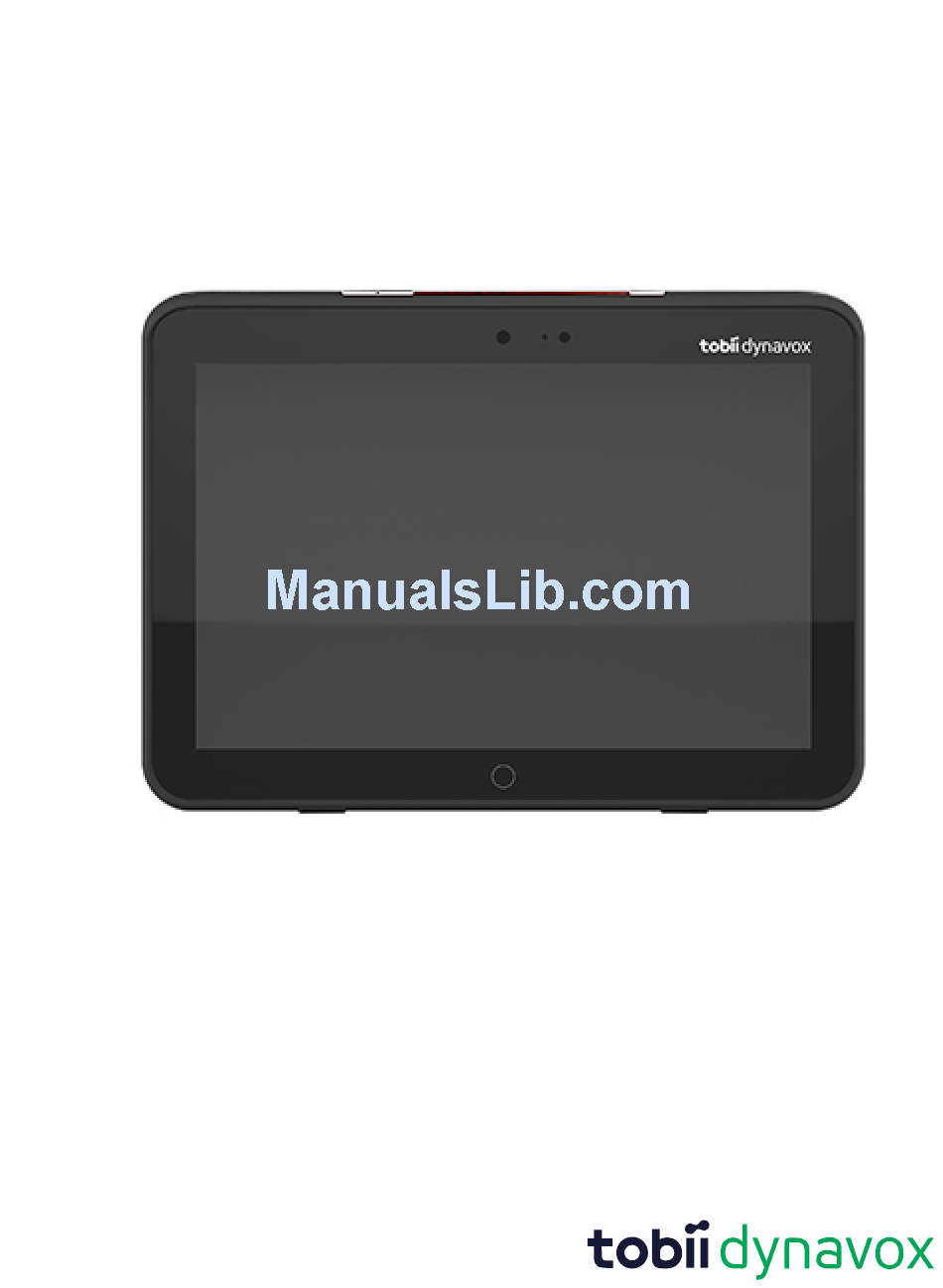

- Page 1 Tobii Dynavox I-Series User’s Manual I-110...
- Page 2 The information contained in this document is proprietary to Tobii Dynavox. Any reproduction in part or whole without prior written authorization by Tobii Dynavox is prohibited. Products that are referred to in this document may be either trademarks and/or registered trademarks of the respective owners.
-
Page 3: Table Of Contents
Overview of the I-110 ........................12 Key Features........................12 Product Layout........................12 3.2.1 Ports, Sensors and Device Buttons .................13 Preinstalled Software ......................14 Batteries in the Tobii Dynavox I-Series ..................15 Batteries ..........................15 Charging the Tablet ......................15 4.2.1 LED Behavior .......................15 Using the Tobii Dynavox I-Series ....................16 Starting the Device .......................16... - Page 4 Placement ...........................18 Transporting the Tobii Dynavox I-Series Device ................18 Disposing of the Tobii Dynavox I-Series Device ................19 Appendix A Support, Warranty, Training Resources ................. 20 Customer Support........................20 Warranty ..........................20 Training Resources.......................20 Appendix B Compliance Information....................21 FCC Statement........................21 B1.1 For P15B Equipment .....................21 B1.2...
-
Page 5: Introduction
Is used to inform of something in which there is a conceivable risk of harm to the user if the Warning is ignored. Is used to inform of something that can cause damage to hearing. Symbols and Markings This section provides information about the symbols that are used on the Tobii Dynavox I-Series, its accessories, or packaging. Description Symbol or Markings Dispose of in accordance with your country's requirements. -
Page 6: Intended Use
IPx4 = Protected against splashing water Intended Use Tobii Dynavox I-Series is a dedicated Speech Generating Device (SGD), primarily designed to serve as an augmentative and al- ternative communication (AAC) aid. Secondarily, Tobii Dynavox I-Series will also provide its users with alternative computer ac- cess, long distance communication and environmental control. -
Page 7: Portable Use
Tobii Dynavox I-Series is built to serve a wide range of input method needs and use cases. The typical user will be ambulatory and interact with the device through touch. The device is also appropriate for physically disabled users that require alternative access methods, such as switch scanning, or wheelchair mounting. -
Page 8: Package Contents
It is recommended to keep the original packaging materials for the Tobii Dynavox I-Series. If device needs to be returned to Tobii Dynavox for Warranty related issues or repair, it is beneficial that the original packaging or equal equivalent is used for shipping. Most shipping carriers require at least 2 inches of packing materi- al around the device. -
Page 9: Safety
No modification of this equipment is allowed The Tobii Dynavox I-Series is not to be used as a life supporting Device, and it shall not be relied on in case of loss of function due to power loss or other causes. -
Page 10: Power Supply And Batteries
Tobii Dynavox I-Series device. Do not open, or modify, the casing of the Tobii Dynavox I-Series device or of the power supply, since you may be ex- posed to potentially hazardous electrical voltage. The device contains no serviceable parts. If the Tobii Dynavox I-Series device or it’s accessories are mechanically damaged, do not to use them. -
Page 11: Emergency
Electricity Do not open the casing of the Tobii Dynavox I-Series device, since you may be exposed to potentially hazardous elec- trical voltage. The device contains no user serviceable parts. -
Page 12: Overview Of The I-110
4 × IR transmitters and 1 × IR receiver ● Product Layout A Tobii Dynavox I-Series device has a color Capacitive touch, LED Backlight screen. The I-110 has an 10.1″ screen with a 1920 × 1200 pixel resolution. 3 Overview of the I-110... -
Page 13: Ports, Sensors And Device Buttons
Head phone jack 3,5 mm Light Sensor Switch port 1, 3,5 mm Switch port 2, 3,5 mm Camera 2 MP Auto Focus (AF) Windows Home Button IR Remote Control 3 Overview of the I-110 #12005924 Tobii Dynavox I-Series User’s manual v.1.0 - en-US... -
Page 14: Preinstalled Software
Preinstalled Software The Tobii Dynavox I-Series device is delivered with all pre-ordered and required software installed and ready to use. Should a reinstallation become necessary at any stage, perform a factory reset using Windows 10 built in factory restore options. -
Page 15: Batteries In The Tobii Dynavox I-Series
The Tobii Dynavox I-Series device has one built-in battery and a battery indicator. The battery indicator will send out a warning of Low battery when the battery drops below 10% of its capacity. If the Tobii Dynavox I-Series device is not powered up by the power supply for charging, the Tobii Dynavox I-Series device will shut down automatically. -
Page 16: Using The Tobii Dynavox I-Series
No skill other then reading is necessary for setting up the Tobii Dynavox I-Series device. Follow this User´s Manual and the Quick Start Manual. Starting the Device Press the power button on the top of the device. (Position 1 in Figure 3.1 Tobii Dynavox I-Series Tablet, page 13) to start the Tobii Dynavox I-Series. 5.1.1... -
Page 17: Power Saving
Use Tobii Dynavox Communication Software or other relevant software to operate the cameras. Adjusting the Volume To adjust the volume use the Volume Up and Down buttons (Position 2) on top side of the Tobii Dynavox I-Series device. For position references, see Figure 3.1 Tobii Dynavox I-Series Tablet, page 13 Volume adjustments can also be done in Tobii Dynavox Communication Software and in Windows. -
Page 18: Product Care
● The Tobii Dynavox I-Series has a water-resistancy rating of IP54, but still isn’t waterproof. The device should not be kept in ex- cessively humid, damp, or otherwise wet conditions. Do not submerge the device in water or in any other liquid. Be careful not to allow liquids to be spilled upon the device, especially in the connector areas. -
Page 19: Disposing Of The Tobii Dynavox I-Series Device
Disposing of the Tobii Dynavox I-Series Device Do not dispose of the Tobii Dynavox I-Series Device in general household or office waste. Follow your local regulations for the disposal of electrical and electronic equipment. 6 Product Care #12005924 Tobii Dynavox I-Series User’s manual v.1.0 - en-US... -
Page 20: Appendix A Support, Warranty, Training Resources
For support, please contact your local representative or Support at Tobii Dynavox. In order to receive assistance as quickly as possible, make sure you have access to your Tobii Dynavox I-Series device and, if possible, an Internet connection. You should also be able to supply the serial number of the device, which you will find on the Service tag label. -
Page 21: Appendix B Compliance Information
Radio Wave Exposure and Specific Absorption Rate (SAR) Information The Tobii Dynavox I-Series device has been tested as a Class 1 Medical Device. Medical electrical equipment such as this requires special caution regarding Electro-magnetic Compatibility (EMC) and thus needs to be installed and placed into service according to the information provided in this manual. -
Page 22: B3 Industry Canada Statement
Electromagnetic Compatibility (EMC) Directive 2014/30/EU on the approximation of the laws of the Member States relating to electromagnetic compatibility and Radio Equipment Directive (RED) 2014/53/EU to meet the regulation of the radio equipment and telecommunications terminal equipment. Directives and Standards The Tobii Dynavox I-Series complies with the following directives: ● Medical Device Regulation (MDR) ●... - Page 23 Batteries Directive 2013/56/EU The device has been tested to comply with IEC/EN 60601-1 Ed 3.1, IEC/EN 60950-1, ISO 14971:2007 and EN ISO 14971:2012and other relevant standards for the intended markets. Appendix B Compliance Information Tobii Dynavox I-Series User’s manual v.1.0 - en-US...
-
Page 24: Appendix C Maximum Allowed Temperature
If reaching the third level, the I-Series device will shut down not to risk the temperature to cause any risk of harm to the user. If the user tries to start the I-Series when the device temperature is above the third level, the device will not start up. The green LED will flicker when the power button is pressed, but the device will stay in the off condition. -
Page 25: Appendix D Technical Specifications
Rear-facing: 8 Mega pixels Front-facing: 2 Mega pixels IP class IP 54 (with I/O covers in place) Battery Item Specification Manufacturer Tobii Dynavox Model Name 9789OTG101 Battery Technology Li-ion rechargeable battery Appendix D Technical Specifications Tobii Dynavox I-Series User’s manual v.1.0 - en-US... -
Page 26: D3 Power Adapter
< 4 hours Power Adapter Item Specification Trademark ADAPTER TECH. Manufacturer Adapter Technology Co., Ltd. Model Name ATM036T-A150 Rated Input 100–240V~50-60Hz, 1A–0.45A Rated Output 15VDC, 2.4A Barrel connector Output Plug Appendix D Technical Specifications Tobii Dynavox I-Series User’s manual v.1.0 - en-US... -
Page 27: Appendix E Approved Accessories
12005756 Tobii Dynavox I-Series AC Adapter AdapterTech ATM036T-A150 (Power Supply) For information about the latest approved Accessories for the Tobii Dynavox I-Series, please visit www.TobiiDynavox.com contact your local Tobii Dynavox reseller. Appendix E Approved Accessories Tobii Dynavox I-Series User’s manual v.1.0 - en-US... - Page 28 Support for Your Tobii Dynavox Device Get Help Online See the product-specific Support page for your Tobii Dynavox device. It contains up-to-date information about issues and tips & tricks related to the product. Find our Support pages online at: www.TobiiDynavox.com or www.myTobiiDynavox.com.
