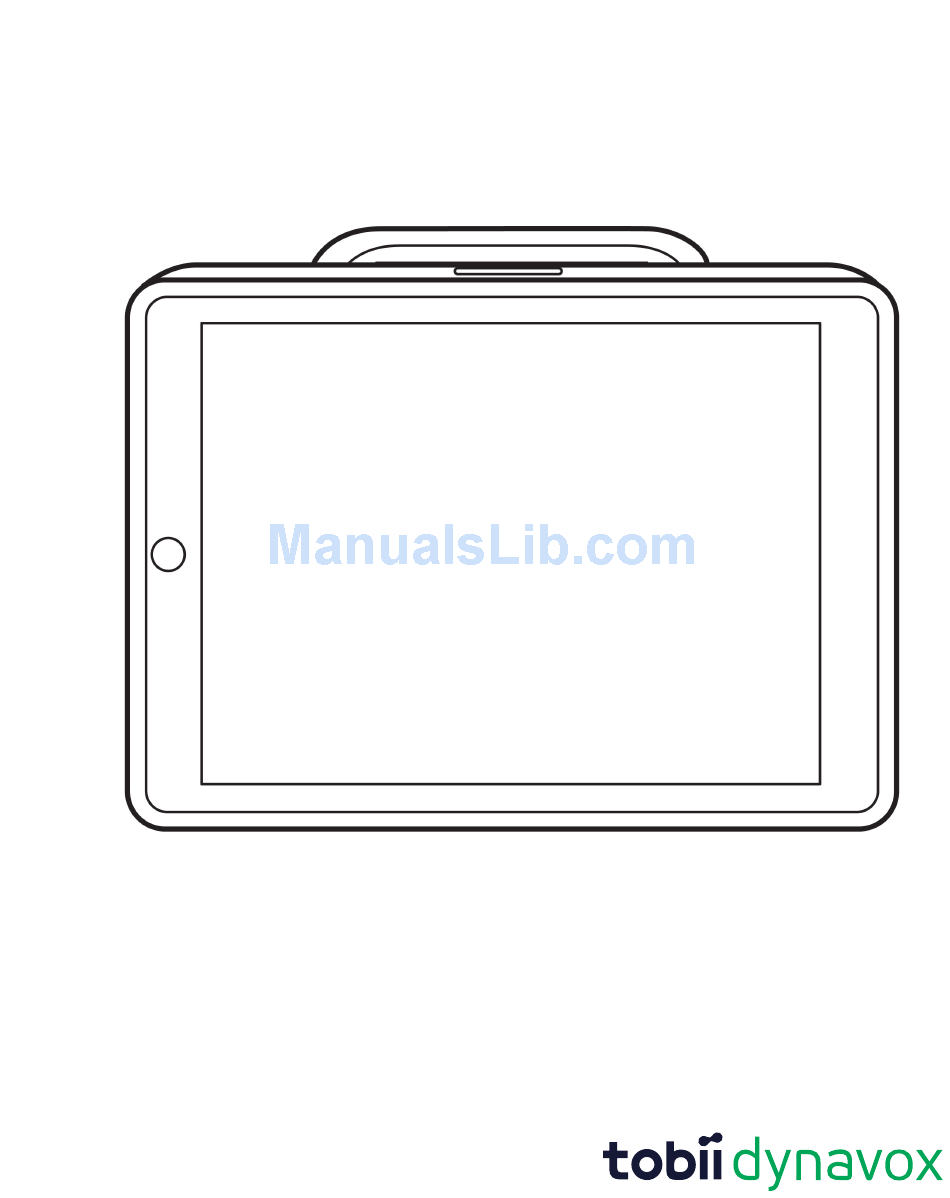

- Page 1 Tobii Dynavox SC Tablet & SC Pro Tablet User’s Manual...
- Page 2 User’s manual Tobii Dynavox SC Tablet & SC Pro Tablet Version 1.0.1 08/2018 All rights reserved. Copyright © Tobii AB (publ) No part of this document may be reproduced, stored in a re- trieval system, or transmitted in any form, by any means (elec- tronic, photocopying, recording, or otherwise) without the prior written permission of the publisher.
-
Page 3: Table Of Contents
Mounting ............................8 Emergency..........................9 Electricity ............................9 Child Safety ..........................9 Magnetic Field..........................9 Third Party ..........................9 Overview of the SC Tablet ......................... 10 Key Features ..........................10 Product Layout ..........................11 3.2.1 Ports and Device Buttons ....................11 Pre-installed Firmware ........................12 Batteries in the SC Tablet........................13 Batteries ...........................13... - Page 4 Appendix A Support, Warranty, Training Resources ................19 Appendix B ............................20 B1.1 For Part 15B Equipment ....................20 B1.2 For Portable Devices ....................20 Appendix C Technical Specifications ..................... 22 Appendix D Approved Accessories ......................24...
-
Page 5: Introduction
To ensure the optimal performance of this product, please take the time to read this manual carefully. SC Tablet is a Tobii Dynavox speech accessory intended for use with an iPad® as an augmentative communication aid and for com- puter access for those with speech, language, physical, and cognitive disabilities. -
Page 6: Intended Use
When used with an appropriately configured iPad, the Tobii Dynavox SC Tablet is a speech generating device (SGD) for people that have challenges in their ability to speak due to injury, disability or illness. The Tobii Dynavox SC Tablet pairs with the iPad through Bluetooth®... -
Page 7: Safety
The user may never attempt to change the battery. Altering of the battery may cause risk of explosion. The SC Tablet is not to be used as a life supporting device, and it shall not be relied on in case of loss of function due to power loss or other causes. -
Page 8: Temperature
Be aware that it is possible, in a worst case scenario, for tempera- tures to reach greater than those stated above in, for example, the trunk of a car on a hot day. So, storing the SC Tablet device, in a hot car trunk could conceivably lead to a malfunction. -
Page 9: Emergency
As a general rule, maintain a minimum distance of 6 inches (15 centimeters) between any item with magnets and your heart device. If you suspect that the SC Tablet device is interfering with your pacemaker or any other medical device, stop using the SC Tablet device and consult your physician for specific information about that affected medical device. -
Page 10: Overview Of The Sc Tablet
2 × switch ports ● ● 1 × headphone connector ● 1 × Bluetooth® radio ● 1 × charging port #12006682 Tobii Dynavox SC Tablet & SC Pro Tablet User’s manual v.1.0.1 3 Overview of the SC Tablet - en-US... -
Page 11: Product Layout
Product Layout 3.2.1 Ports and Device Buttons Figure 3.1 Posi- Description tion Volume rocker switch Speakers #12006682 Tobii Dynavox SC Tablet & SC Pro Tablet User’s manual v.1.0.1 3 Overview of the SC Tablet - en-US... -
Page 12: Pre-Installed Firmware
Make sure that the connector matches the port and that you have positioned the connector correctly in relation to the port. Pre-installed Firmware The SC Tablet is delivered with all required firmware installed and ready to use. #12006682 Tobii Dynavox SC Tablet & SC Pro Tablet User’s manual v.1.0.1 3 Overview of the SC Tablet... -
Page 13: Batteries In The Sc Tablet
(charge, discharge, ambient temperature, etc.) within specified ranges may shorten the battery life expect- ancy, or damage your SC Tablet device. If the battery cannot maintain a charge for long periods of time, even when it is charged correctly, it may need to be replaced. -
Page 14: Using The Sc Tablet
If you have paired this Speech Case with this iPad previously, you must first “forget” the SC Tablet in the Bluetooth de- vice list. Go to Settings > Bluetooth. Find the SC Tablet in the list and select the “i” icon next to it. Select “Forget this Device.”... -
Page 15: Install The Ipad® And Pair Through Bluetooth
Adjusting the Volume To adjust the volume, use the Volume Up and Down rocker (Position 1 in Figure 3.1 ) on the top of the SC Tablet. Volume adjustments can also be done in the iOS software on the iPad. -
Page 16: Switches
● Switch 2 — Enter key When the SC Tablet is in touch mode, set the Access Method in your Tobii Dynavox apps to Scanning, and set Switch 1 to Space key and Switch 2 to Enter enter. When the SC Tablet is in iOS scanning mode, switches send the following by default: ●... -
Page 17: Product Care
● The SC Tablet is not waterproof or water resistant. The device should not be kept in excessively humid, damp or otherwise wet con- ditions. Do not submerge the device in water or in any other liquid. Be careful not to allow liquids to be spilled upon the device, espe- cially in the connector areas. -
Page 18: Disposing Of The Sc Tablet
Disposing of the SC Tablet Do not dispose of the SC Tablet in general household or office waste. Follow your local regulations for the disposal of electrical and electronic equipment. #12006682 Tobii Dynavox SC Tablet & SC Pro Tablet User’s manual v.1.0.1... -
Page 19: Appendix A Support, Warranty, Training Resources
For support, please contact your local representative or Support at Tobii Dynavox. In order to receive assistance as quickly as possi- ble, make sure you have access to your SC Tablet and, if possible, an internet connection. You should also be able to supply the se- rial number of the device, which you will find on the Service tag label. -
Page 20: B1.1 For Part 15B Equipment
(1) this device may not cause harmful interference and (2) this device must accept any interference received, in- cluding interference that may cause undesired operation. Modifications not expressly approved by Tobii Dynavox could void the user’s authority to operate the equipment under FCC rules. - Page 21 CNR-102 à le grand public (environnement non contrôlé) des limites (1.6W/Kg). La valeur maximale mesurée de SAR pour le SC Tablet dispositif est: 0.3 W/kg. Ce dispositif peut être exploité en toute sécurité avec un 0cm distance minimale entre le maté- riel et les corps de l’utilisateur.
-
Page 22: Appendix C Technical Specifications
1 × 3.5 mm” Headset/Audio-out port (stereo) with jack detection (Headphone and microphone Connectors port) 1 × Micro-AB USB 2.0 Buttons 1 × Volume Up 1 × Volume Down Appendix C Technical Specifications Tobii Dynavox SC Tablet & SC Pro Tablet User’s manual v.1.0.1 - en-US... - Page 23 100 to 240 VAC .48 A Input current (max) Input frequency 50 to 60 Hz 4.8A Output current Rated output voltage 5 VDC Appendix C Technical Specifications Tobii Dynavox SC Tablet & SC Pro Tablet User’s manual v.1.0.1 - en-US...
-
Page 24: Appendix D Approved Accessories
Appendix D Approved Accessories For information about the latest approved accessories for the SC Tablet, please visit www.TobiiDynavox.com or contact your local Tobii Dynavox reseller. Appendix D Approved Accessories Tobii Dynavox SC Tablet & SC Pro Tablet User’s manual v.1.0.1 - en-US... - Page 26 For questions or problems with your product, contact your Tobii Dynavox sales representative or authorized reseller for assistance. They are most familiar with your personal setup and can best help you with tips and product training. For contact details, visit www.TobiiDynavox.
