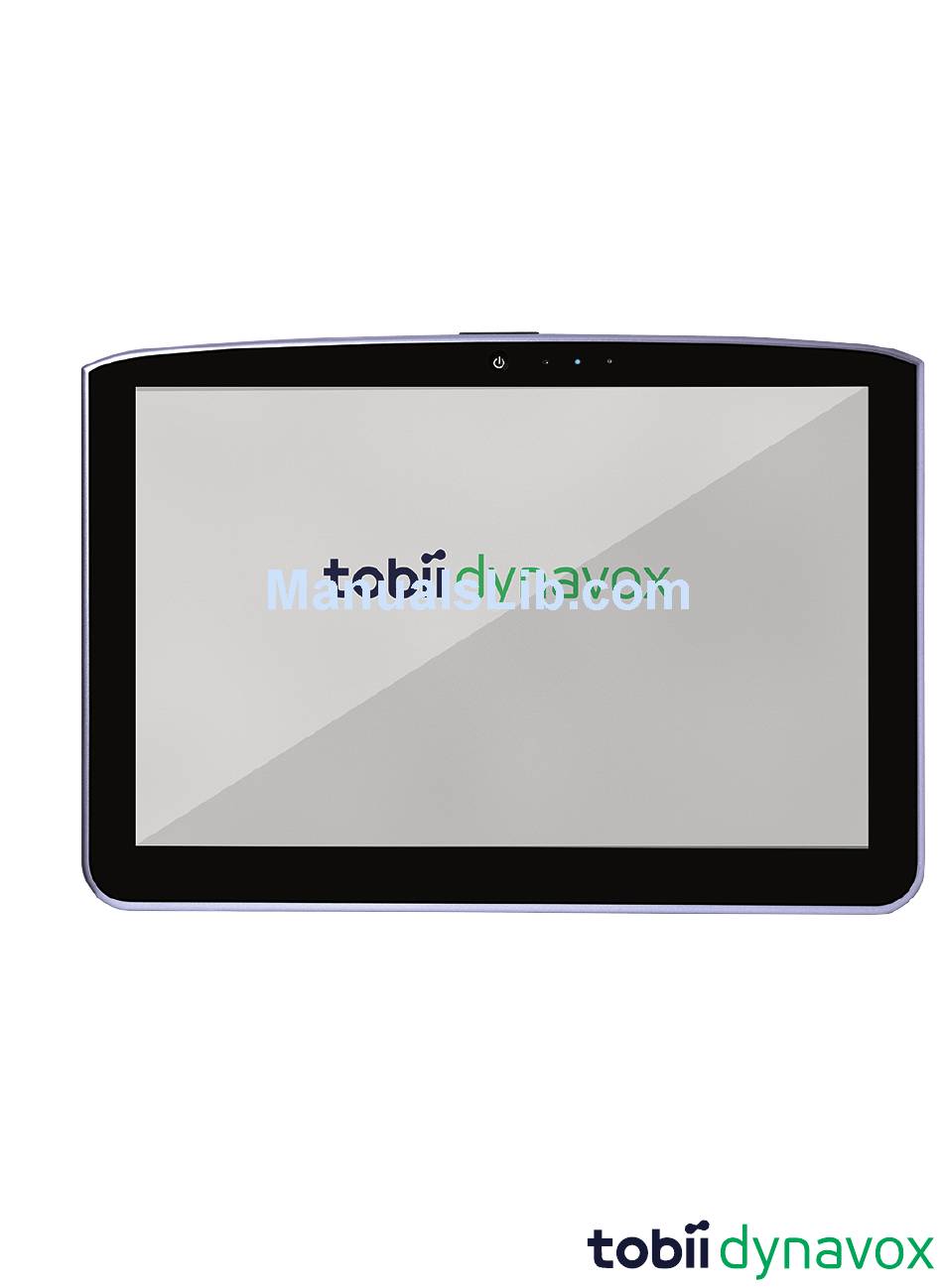

- Page 1 T-Series Devices User’s Manual T10+...
- Page 2 The information contained in this document is proprietary to Tobii Dynavox. Any reproduction in part or whole without prior written authorization by Tobii Dynavox is prohibited. Products that are referred to in this document may be either trademarks and/or registered trademarks of the respective owners.
-
Page 3: Table Of Contents
Intended Use .........................5 Package Contents........................5 myTobiiDynavox ........................6 Additional Documentation .......................6 Safety ............................7 Overview of the T-Series device....................10 T7 ............................10 T10 ............................12 T10+ ..........................13 T15 ............................15 Turning the T-Series On for the First Time ..................17 Troubleshooting ........................17 Charging the Battery ........................18 Prolonging the T-Series Battery Life —... -
Page 4: Introduction
Communication (AAC), a purpose built Speech Generating Device (SGD), which feature theCompass communication software. This User’s Manual provides an overview of the basic operation of your T7, T10,T10+ andT15 Android tablets. It points out key hardware features and describes the most frequently-used features and functions of your device. -
Page 5: Intended Use
Symbol or Markings Description Type L and Type R Listing Marks for Canada and the United States Conforms to relevant Australian EMC requirements Safety Class II equipment (reinforced insulation) This mark show the pin out polarity on the AC/DC Power Adapter. -
Page 6: Mytobiidynavox
Keep the original packaging materials for the T-Series. In case the device needs to be returned to Tobii Dynavox for Warranty related issues or repair, it is required that the original packaging (or equal equivalent) is used for shipping. myTobiiDynavox Go to www.myTobiiDynavox.com... -
Page 7: Safety
Turn off the device and disconnect cables and accessories prior to cleaning, service, or maintenance. Do not clean, service, or maintain the device while it is in use. Tobii Dynavox will provide circuit diagrams, component part lists, descriptions, and calibration instructions to assist authorized service personnel in parts repair. - Page 8 Restrictions specified on other equipment or network/data couplings to which a signal input/output part may be connected. Do not open the enclosure, stretch the openings, or touch the camera and the inner circuit. This T-Series device presents a risk of electrical shock if the casing is opened. Do not open the casing that surrounds the device.
- Page 9 The use of accessories, transducers and cables other than those specified, with the exception of transducers and ca- bles sold by Tobii Dynavox as replacement parts for internal components, may result in increased emissions or de- creased immunity of the me equipment or me system.
-
Page 10: Overview Of The T-Series Device
Overview of the T-Series device Figure 3.1 T7 Front Figure 3.2 T7 Top Figure 3.3 T7 Back 3 Overview of the T-Series device #401487-F T-Series Devices User’s manual v.2.2 - en-US... - Page 11 Figure 3.4 T7 Side Figure 3.5 T7 Bottom Charging Indicator: Lit amber when the battery is charging. Turns blue when the battery is fully charged. Ambient Light Sensor: Adjusts the screen brightness based on the surrounding light. Front-facing Camera: Takes photographs of objects in front of the screen (e.g., self portraits).
- Page 12 Figure 3.6 T10 Front Figure 3.7 T10 Top Figure 3.8 T10Back Figure 3.9 T10 Bottom Front: Charging Indicator: Lit amber when the battery is charging. Turns blue when the battery is fully charged. Power Button: To turn the device on, press and hold until the splash screen ap- pears.
- Page 13 Ambient Light Sensor: Adjusts the screen brightness based on the surrounding light. Speakers: Dual speakers provide an extensive range of volume. Volume Rocker Switch: Press on the + side of the switch to increase volume. Press on the - side of the switch to decrease volume. Right Side Speaker/Headphone/External Microphone Jack: Connect an external speaker, headphones for private audio, or an external microphone.
- Page 14 Figure 3.11 T10+ Top Figure 3.12 T10+ Back Figure 3.13 T10+ Bottom Front: Charging Indicator: Lit amber when the battery is charging. Turns blue when the battery is fully charged. Power Button: To turn the device on, press and hold until the splash screen ap- pears.
- Page 15 Figure 3.14 T15 Front Figure 3.15 T15 Top Figure 3.16 T15 Back Figure 3.17 T15 Bottom Front: Power Button: To turn the T15 on, press and hold until the splash screen appears. Press and release to put to sleep. To shut down the T15, press and hold until the shutdown menu appears.
- Page 16 Volume Rocker Switch: Press on the + side of the switch to increase volume. Press on the - side of the switch to decrease volume. Micro SDHC Card: Create local backups or provide additional storage for pictures and other media. Full-Size USB Port: Connect to a full-size USB drive.
-
Page 17: Turning The T-Series On For The First Time
Turning the T-Series On for the First Time Press the Power button to turn on your device. The Compass software will start automatically. The Setup Wizard screen will open. Setup Wizard Screen The Setup Wizard will walk you through the steps to choose an appropriate page set and start communicating. See the Compass User’s Manual for step-by-step instructions on using the Compass software running on your T-Series device. -
Page 18: Charging The Battery
● Don’t try to replace the battery yourself. The battery is internal and is not intended for service or replacement by the user or anyone other than a Tobii Dynavox technician. 5 Charging the Battery #401487-F T-Series Devices User’s manual v.2.2 - en-US... -
Page 19: Product Care
> myTobiiDynavox Community to start the repair process by creating a new case. You may need to ship it to Tobii Dynavox for repairs. If you purchased your device through an authorized Tobii Dynavox reseller, you should contact your re- seller for support and repair. -
Page 20: Disposing Of The T-Series Device
Symbol or Markings Description This Side Up Fragile Guard against Damp Warehouse Stack Limit (6 cartons) Storage Temperature: —10℃ — 45℃ / 14℉ — 113℉ Atmospheric pressure 80–106 kPa Relative humidity up to 90% Disposing of the T-Series Device Do not dispose of the T-Series Device in general household or office waste. Follow your local regulations for the disposal of electrical and electronic equipment. -
Page 21: Appendix A Support, Warranty, Training Resources
User’s Manual. Disassembling the T-Series device will void the warranty. Keep the original packaging materials for the T-Series. In case the device needs to be returned to Tobii Dynavox for Warranty related issues or repair, it is required that the original packaging (or equal equivalent) is used for shipping. -
Page 22: Appendix B Compliance Information
(2) this device must accept any interference received, including interference that may cause undesired operation. Modifications not expressly approved by Tobii Dynavox could void the user’s authority to operate the equipment under FCC rules. B1.1... - Page 23 Guidance and manufacturer’s declaration – electromagnetic emissions The T-Series is intended for use in the electromagnetic environment specified below. The customer or the user of the T-Series device should assure that it is used in such an environment. Emissions Test Compliance Electromagnetic environment –...
- Page 24 Guidance and manufacturer’s declaration – electromagnetic immunity The T-Series device is intended for use in the electromagnetic environment specified below. The customer or the user of the T-Series device should assure that it is used in such an environment. IMMUNITY test IEC 60601 test level Compliance level Electromagnetic...
-
Page 25: B2 Industry Canada Statement
Guidance and manufacturer’s declaration – electromagnetic immunity The T-Series device is intended for use in the electromagnetic environment specified below. The customer of the user of the T-Series device should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level Electromagnetic... -
Page 26: B2.2 Français
Common information Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. Operation in 2.4 GHz band To prevent radio interference to the licensed service, this device is intended to be operated indoors and installation outdoors is subject to licensing. -
Page 27: Appendix C Technical Specifications
Appendix C Technical Specifications Standard Tobii Dynavox T7 Tobii Dynavox T10 Tobii Dynavox T10+ Tobii DynavoxT15 Type/Model T10+ 7″ Screen 9.7" 15.4" 17.8 cm 24.7 cm 39.12 cm 1920 × 1200 1024 × 768 1440 × 900 Screen Resolution Touch Panel Multi point Capacitive Touch 15.06 ×... - Page 28 Standard Tobii Dynavox T7 Tobii Dynavox T10 Tobii Dynavox T10+ Tobii DynavoxT15 Type/Model T10+ Camera Rear-facing: 8 Rear-facing: 5 Rear-facing: 8 Rear-facing: 5 Megapixels Megapixels Megapixels Megapixels Front-facing: 1.3 Front-facing: 1.3 Front-facing: 1.3 Front-facing: 1.3 Megapixels Megapixels Megapixels Megapixels (720P or higher...
- Page 29 Standard Tobii Dynavox T7 Tobii Dynavox T10 Tobii Dynavox T15 Type/Model Micro USB Micro USB Micro USB Headphone/microphone jack Micro HDMI Full-size USB port Headphone/microphone jack Micro HDMI Expansion port for future Micro SDXC memory slot Connectors accessories Headphone/microphone jack...
-
Page 30: Appendix D Approved Accessories
200699 MTP451BX - 120300 T-Series AC Adapter (Power Supply) For information about the latest approved Tobii Dynavox Accessories for the T-Series, please visit the www.tobiidynavox.com website or contact your local Tobii Dynavox sales consultant or authorized reseller. Appendix D Approved Accessories... - Page 32 Support for Your Tobii Dynavox Device Get Help Online See the product-specific Support page for your Tobii Dynavox device. It contains up-to-date information about issues and tips & tricks related to the product. Find our Support pages online at: www.TobiiDynavox.com or www.myTobiiDynavox.com.
