Tobii Dynavox EyeMobile Plus
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EyeMobile Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tobii Dynavox EyeMobile Plus

Summary of Contents for Tobii Dynavox EyeMobile Plus

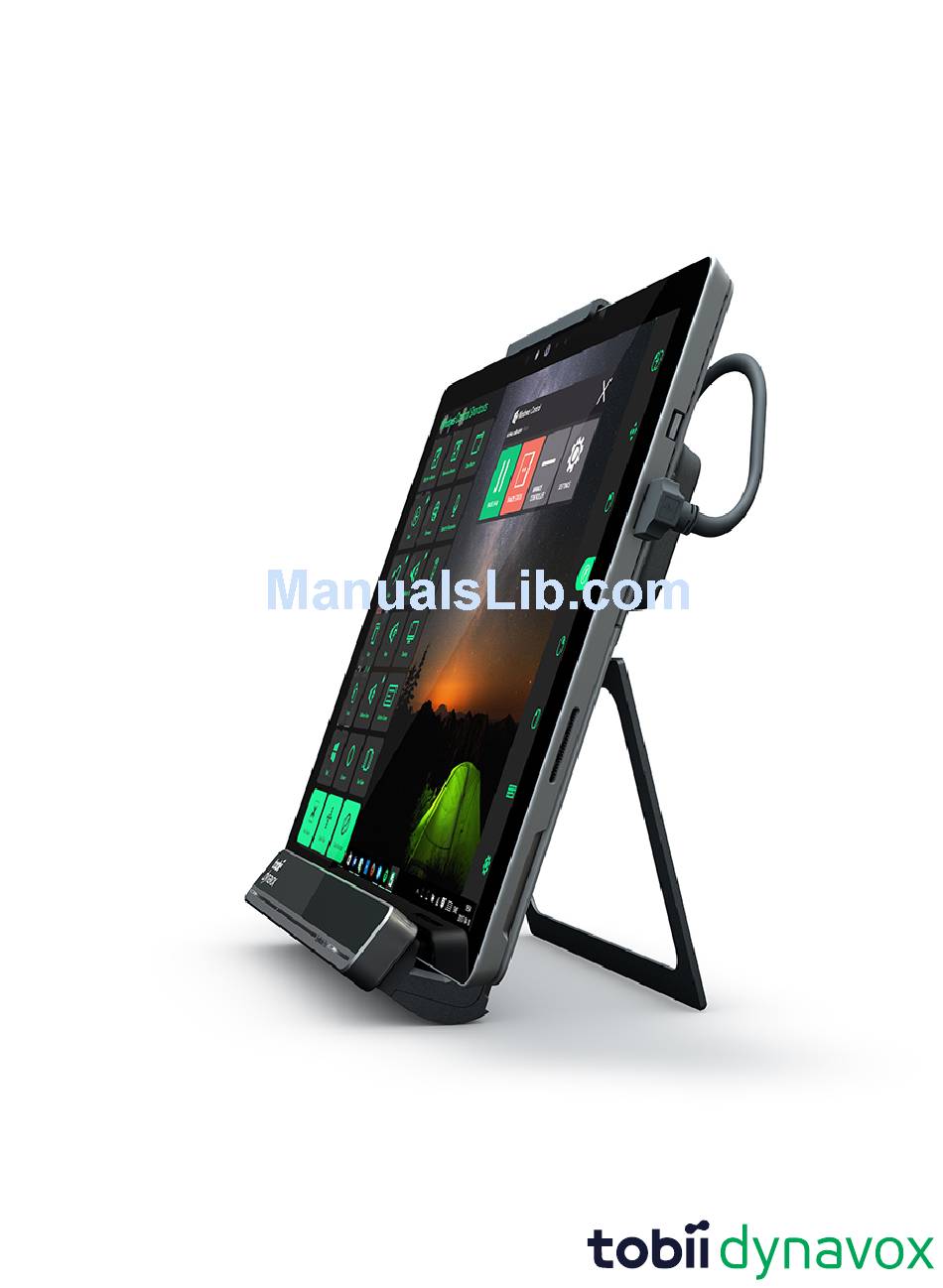

  • Page 1 Tobii Dynavox EyeMobile Plus User’s Manual...
  • Page 2 Content subject to change without notice. Please check Tobii Dynavox web site www.TobiiDynavox. for updated versions of this document. The EyeMobile Plus is protected by the following U.S. Patents: ● 7.572.008 ● 6.659.611...

  • Page 3: Table Of Contents

    Emergency ..........................9 2.10 Windows Control ........................9 2.11 Third Party..........................9 2.12 Environmental Control......................9 Getting Started with EyeMobile Plus .................... 10 Requirements ........................10 Overview..........................10 Batteries in the EyeMobile Plus ....................12 Batteries ..........................12 Charging the EyeMobile Plus ....................12 4.2.1 Checking Charge Level..................12 4.2.2...
  • Page 4 Standards ...........................18 Appendix C Technical Specifications....................20...

  • Page 5: Introduction

    Windows tablet you are ready to go out in the world no matter if you want to use it as an always connected com- puter access solution or if you want to use it as a Speech Generating solution. With an EyeMobile Plus you are really ready To The EyeMobile Plus includes an eye tracker that lets you access and control your Windows Tablet using only your eyes.

  • Page 6: Package Contents

    Figure 1.1 EyeMobile Plus Do not cover the front of the EyeMobile Plus in any way (with decorations, Post-Its, etc.) as Windows Control will be compromised. Using an antivirus program is strongly recommended.

  • Page 7: Safety

    No modification of this equipment is allowed The EyeMobile Plus is not to be used as a life supporting Device, and it shall not be relied on in case of loss of func- tion due to power loss or other causes.

  • Page 8: Mounting

    For safe operation of the EyeMobile Plus device, use only charger and accessories approved by Tobii Dynavox. Do not open, or modify, the casing of the EyeMobile Plus device or of the power supply, since you may be exposed to potentially hazardous electrical voltage.

  • Page 9: Child Safety

    2.11 Third Party Any use of the EyeMobile Plus outside the intended use and together with any third party software or hardware that changes the intended use is a risk and nothing that Tobii Dynavox can take any responsibility for.

  • Page 10: Getting Started With Eyemobile Plus

    Windows 10 (32-bit or 64-bit) .NET version Tobii Eye Tracking Core Software Version 2.8 or later To be able to use the EyeMobile Plus, one of the following Tobii Dynavox software must be installed: ● Tobii Dynavox Windows Control ●...
  • Page 11 Make sure that the connector matches the port and that you have positioned the connector correctly in relation to the port. Be extra careful with the USB connectors. 3 Getting Started with EyeMobile Plus Tobii Dynavox EyeMobile Plus User’s manual v.1.0 - en-US...

  • Page 12: Batteries In The Eyemobile Plus

    Connect the Power adapter to an electrical outlet and charge the tablet until the battery is fully charged. If the battery charging level will drop below 5% the EyeMobile Plus will be charged over the USB connection to the tablet until the EyeMobile Plus battery reaches 10% of the charging level.

  • Page 13: Using Eyemobile Plus

    Figure 5.2 Positioning for Users Leaning Sideways or Lying Down This means that for those users leaning sideways or those lying down the EyeMobile Plus also needs to be tilted in order to keep the users eyes parallel to the screen and at the optimal distance, see Figure 5.2 Positioning for Users Leaning Sideways or Ly- ing Down, page 13.

  • Page 14: Settings

    Switch Settings The built in switch ports on the EyeMobile Plus are intended to be used with one 3.5 mm switch connected directly to one of the two (2) switch ports on the EyeMobile Plus. The switch ports are by default configured as "Joystick 1" and “Joystick 2” in Windows.

  • Page 15: Applicable Application Software

    Applicable Application Software The EyeMobile Plus has a number of different uses depending on the user's need and the application software installed. www.tobiidynavox.com to find support and documentation for the different compatible software. 7 Applicable Application Software Tobii Dynavox EyeMobile Plus User’s manual v.1.0 - en-US...

  • Page 16: Product Care

    Cleaning Before cleaning the EyeMobile Plus device shut down the computer to which it is attached and unplug all cables. Use a soft, slightly damp, lint-free cloth. Avoid getting moisture in openings on the device. Don’t use window cleaners, household cleaners, aerosol sprays, solvents, alcohol, ammonia, or abrasives to clean the device.

  • Page 17: Appendix A Support And Warranty

    For support, please contact your local representative or Tobii Dynavox Support. In order to receive assistance as quickly as possible, make sure you have access to your EyeMobile Plus and, if possible, an Internet connection. You should also be able to supply the serial number of the device, which you find on the back of the device.

  • Page 18: Appendix B Compliance Information

    (2) this device must accept any interference received, including interference that may cause undesired operation. Modifications not expressly approved by Tobii Dynavox could void the user’s authority to operate the equipment under FCC rules. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 19 IEC 61000–4-11 Ed. 2.0: 2004 ● FCC CFR Title 47 Part 15 Subpart B: 2015, Class B ● CISPR 22: 2008, ANSI C63.4: 2014 AS/NZS CISPR 32: 2013, Class B ● Appendix B Compliance Information Tobii Dynavox EyeMobile Plus User’s manual v.1.0 - en-US...
  • Page 20 <0.2° Ideal <0.1° Max Head Movement Speed Eye Position 40 cm/s (15.7 in/s) Gaze Data 10 cm/s (3.9 in/s) Max Head Tilt >20° Max Yaw, pitch 25° Appendix C Technical Specifications Tobii Dynavox EyeMobile Plus User’s manual v.1.0 - en-US...
  • Page 21 Other tablets that fulfil the system requirements and supported dimensions might be compatible, as long as the USB port and charging connector is not interfering with the EyeMobile Plus bracket. Appendix C Technical Specifications Tobii Dynavox EyeMobile Plus User’s manual v.1.0 - en-US...
  • Page 22 Support for Your Tobii Dynavox Device Get Help Online See the product-specific Support page for your Tobii Dynavox device. It contains up-to-date information about issues and tips & tricks related to the product. Find our Support pages online at: www.TobiiDynavox.com or www.myTobiiDynavox.com.
