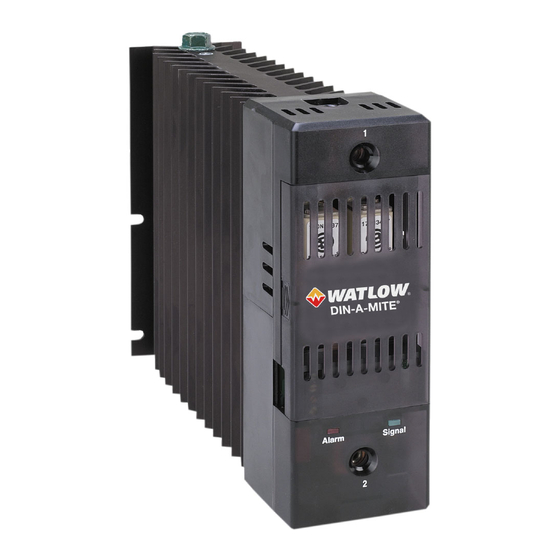

Solid-state power controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

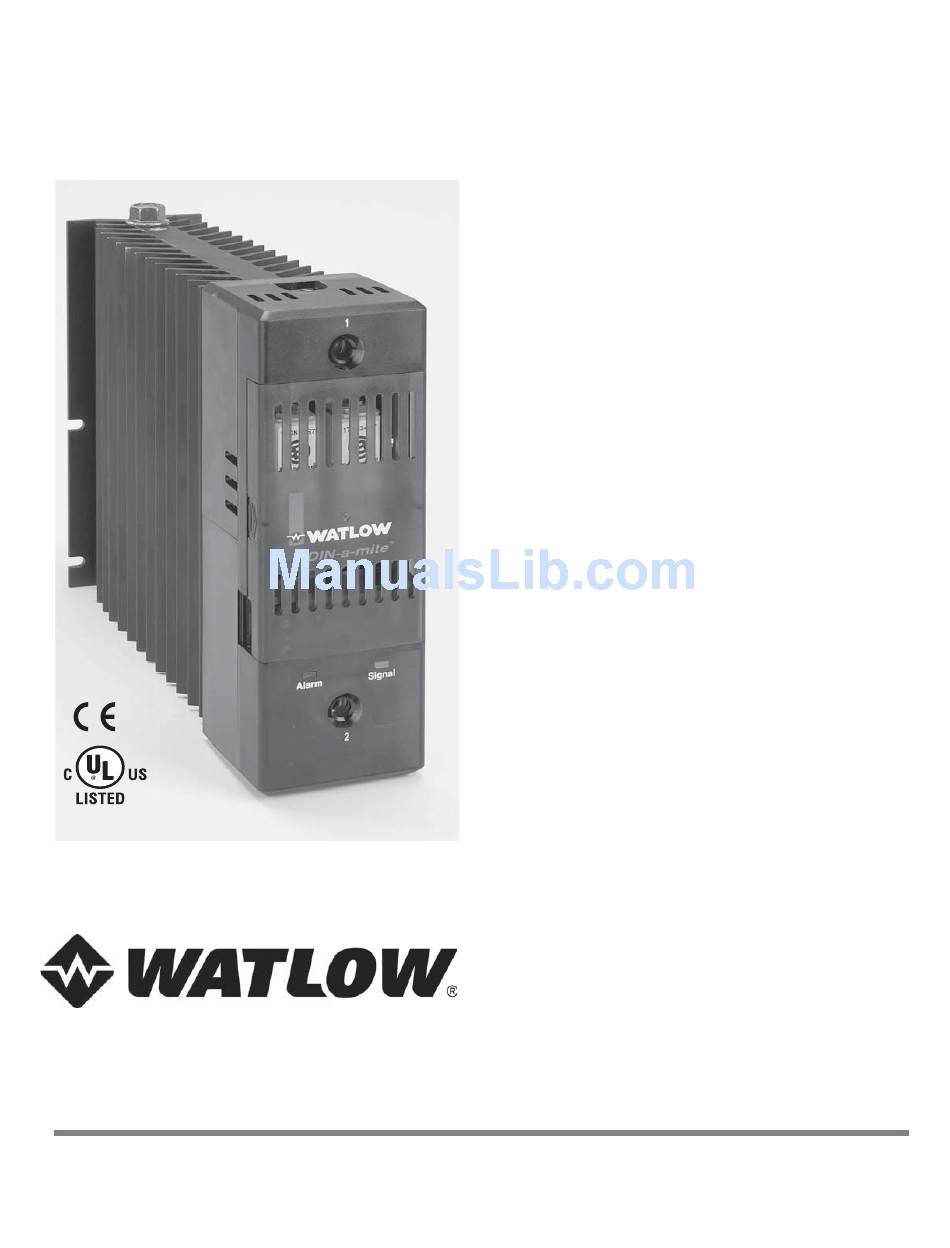

Thermal Devices, Inc. Mount Airy, Maryland USA www.thermaldevices.com
DIN-A-MITE
Solid-State Power Controller
User's Manual
1241 Bundy Boulevard, Winona, Minnesota USA 55987
Phone: +1 (507) 454-5300, Fax: +1 (507) 452-4507
http://www.watlow.com
0600-0025-0013 Rev J
January 2016
Thermal Devices, Inc. Mount Airy, Maryland USA www.thermaldevices.com
®
Style D
Please consult this user's manual when you place your new
DIN-A-MITE in service. It contains all the necessary
information to mount and wire it into the application. This
manual also contains all pertinent specifications and
semiconductor fusing recommendations. Please refer to
national and local electrical code safety guidelines whenever
you install electrical equipment.
This DIN-A-MITE product is capable of switching up to 100
amperes single-phase, at 600V
depending on the model selected. It is electrically touch-safe
and includes standard back-panel mounting, on-board
semiconductor fuses, and a current transformer option for
external load current monitoring. Shorted SCR alarm output
option is also available.
The DIN-A-MITE Style D mounting footprint matches that of
an industry-standard 100-amperes mercury displacement
relay. This DIN-A-MITE is CE-approved, UL
C-UL
.
®
Å
(ac) at 30°C (86°F),
®
508-listed and

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Din-a-mite and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Watlow Din-a-mite

Summary of Contents for Watlow Din-a-mite

  • Page 1 Please refer to national and local electrical code safety guidelines whenever you install electrical equipment. This DIN-A-MITE product is capable of switching up to 100 Å amperes single-phase, at 600V (ac) at 30°C (86°F), depending on the model selected.

  • Page 2: Specifications

    Allen head maximum per controlled leg • Wire strip length 17.5 mm (0.69 in) • Do not use the DIN-A-MITE Vac-input models with a temperature Operating Environment controller that includes an RC snubber circuit across its output. • Operating temperature range: 0 to 85°C (32°F to 185°F) Remove the RC snubber circuit before placing the DIN-A-MITE into •...

  • Page 3: Ordering Information

    Bussmann part number: 170N3437 (2.63 in) 67 mm (2.63 in) 61 mm Output Rating Curve (2.38 in) DIN-A-MITE Style D Natural Convection at 100% on 13 mm (0.50 in) Allowance For No. 10 Fastener ç Metric = M5 WARNINGS: Ó...
  • Page 4 Ó 1 WARNING: Use National Electric (NEC) or other country-specific standard wiring practices to install Ó and operate the DIN-A-MITE. Failure to do so may result in damage to equipment and property, and/or injury or loss of life. Ó 2 WARNING: Wiring examples show L2 in phase-to- phase, 200VÅ...

  • Page 5: Torque Procedure

    Shorted SCR Alarm The Watlow DIN-A-MITE alarm option provides an alarm output for shorted SCR conditions. A shorted SCR alarm is detected when there is no command signal and a load current is detected. The alarm output is then energized. This is a non-latching alarm.
  • Page 6 An external ElectroMagnetic Interference (EMI) filter must be used in conjunction with the DIN-A- MITE for loads in excess of six amperes (6A) at 150 to 250 KHz. Watlow has verified that a tank filter will suppress EMI created by SCR power controllers to comply with the conducted emissions limits.

  • Page 7: Declaration Of Conformity

    Thermal Devices, Inc. Mount Airy, Maryland USA www.thermaldevices.com Declaration of Conformity Table 1 - DIN-A-MITE EMI Filters Description Crydom Filter Watlow Filter Single-phase, 230VÅ (ac) 1F25 14-0019 Three-phase, 440VÅ (ac) 3F20 14-0020 Figure 2: Three-phase, 2 - leg control using two DIN-A- MITE D controllers.

  • Page 8: Technical Assistance

    • Call or fax your distributor or the nearest Watlow sales office for best information about returns. • To return directly to Watlow Winona in the U.S., first call or fax Customer Service for a Return Material Authorization (RMA) number telephone: +1 (507) 454-5300; fax: +1 (507) 452-4507).

  • Page 9: How To Reach Us

    Your Authorized Watlow Distributor Tel: 03-3518-6630 Fax: 03-3518-6632 Email: infoj@watlow.com Website: www.watlow.co.jp Watlow Japan Ltd. 1-14-4 Uchikanda, Chiyoda-Ku Tokyo 101-0047 Japan Tel: +81-3-3518-6630 Fax: +81-3-3518-6632 Email: infoj@watlow.com Website: www.watlow.co.jp WATLOW DIN-A-MITE Style D User’s Manual Thermal Devices, Inc. Mount Airy, Maryland USA www.thermaldevices.com...
