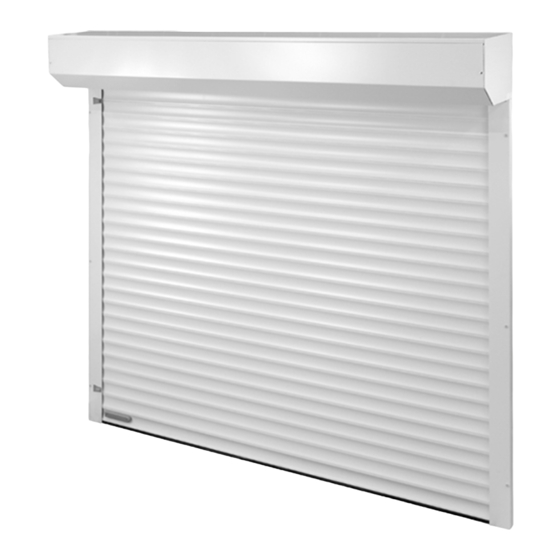

Roller garage door
Hide thumbs

Advertisement

Quick Links

Download this manual
www.samsondoors.co.uk
SeceuroGlide LT
Installation Instructions
Always check on delivery that the order details are correct and the
door is undamaged, especially before removing any existing doors.
Sequence of Installation & Contents
01. Pre-Installation and Component Check
02. Installation Options
03. Prepare the Opening
04. Prepare the Guide Rails
05. Fix Guide Rails & Axle Assembly
06. Tensioning the Anti-fall Back Spring
07. Fit Emergency Overrides
08. Curtain Adjustment (reducing height/making repairs)
09. Install the Curtain in the Guides, Attach to Axle & Fit Stops
10. Curtain Locking & Setting Motor Limit Switches
11. Installation of Box Supports
12. Commissioning
13. Technical Assistance
14. Notes
01. PRE-INSTALLATION AND COMPONENT CHECK
Check:
i.
Delivery note
ii. Order sheet
iii. Door dimensions / colour
iv. Opening dimensions / clearances
v.
Components
vi. Check for any damage to the guide rails
or the outside roll of the curtain
Do not proceed further with the
installation unless you are sure that
the door is the correct size, and all
components are present.
August 2016
Issue 1
SGLT16
0800 328 6250
www.samsondoors.co.uk

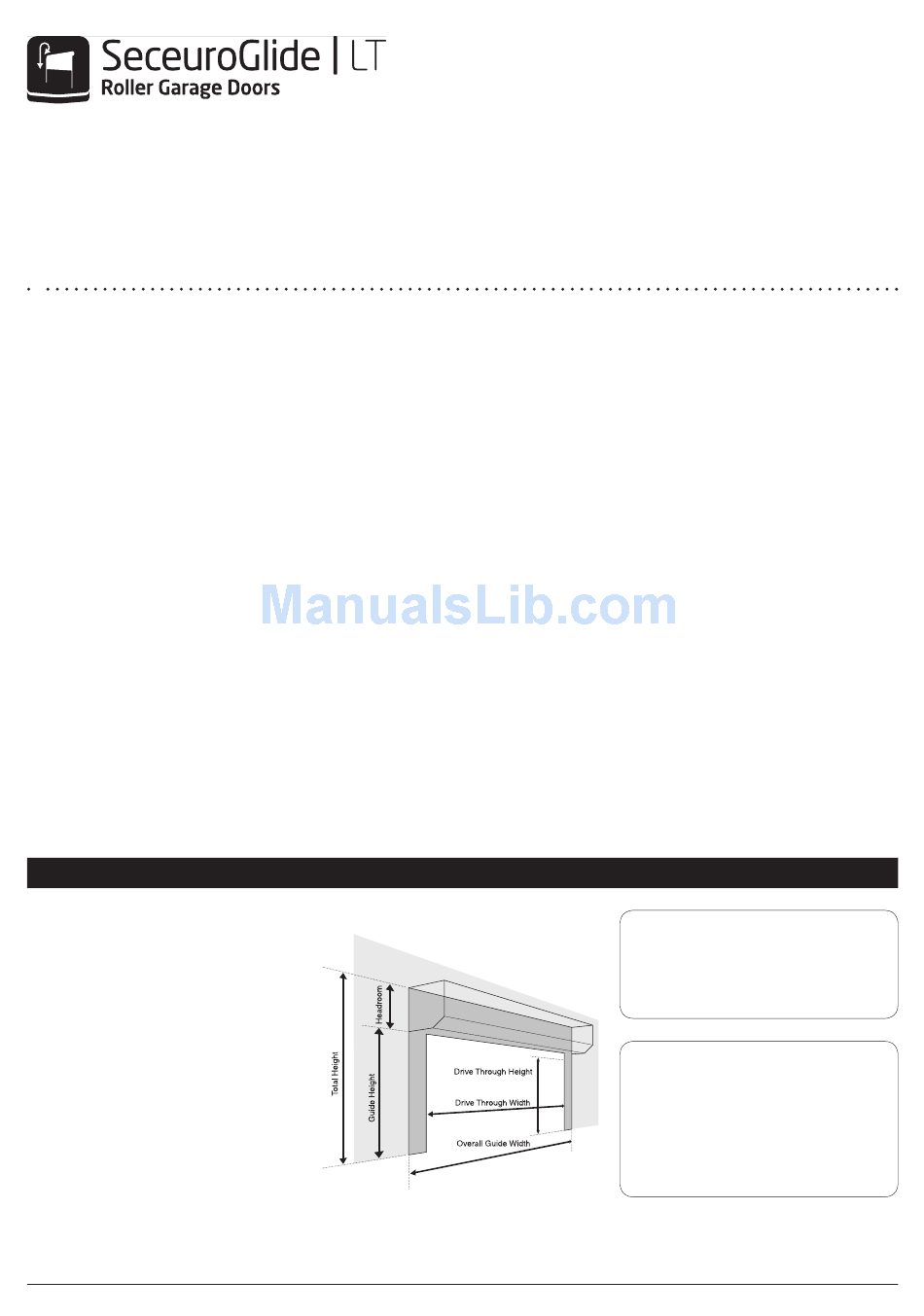

WIDTHS
Manufacturing Width = Over Guide Width
Drive Through Width = Over Guide Width less
150mm for 75mm guides
HEIGHTS
Manufacturing Height = Guide Height
Total Height = Guide Height + End Plate
Headroom/End Plate up to 2.5m Guide Height =
300mm
Drive Through Height = Guide Height less 100mm
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SeceuroGlide LT and is the answer not in the manual?

Questions and answers

Related Manuals for SWS SeceuroGlide LT

Summary of Contents for SWS SeceuroGlide LT

  • Page 1 0800 328 6250 www.samsondoors.co.uk SeceuroGlide LT Installation Instructions Always check on delivery that the order details are correct and the door is undamaged, especially before removing any existing doors. Sequence of Installation & Contents 01. Pre-Installation and Component Check 02.

  • Page 2: Installation Options

    www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk ROLLER GARAGE DOOR COMPONENTS 01. Remote Control Unit 02. Motor (fitted into axle) 03. 70mm Octagonal Axle 04. 4 or 5 Pairs Compact Locking Collars (fitted on axle) 05. Axle Cap or Spring (fitted into axle) 06.
  • Page 3 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 03. PREPARE THE OPENING Check: Structure is sound/even & can carry the weight of the door iii. Floor is flat/level ii. No obstacles in fitting footprint eg. no sharp objects, pipes, If necessary install a sub-frame to ensure secure, flush and cables, bumps etc.
  • Page 4 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 05. FIX GUIDE RAILS & AXLE ASSEMBLY (CONTINUED) Check: Back faces of guides and end plates are flush and untwisted (see Drawing B) ii. Guides are vertical/parallel/same height Installation of the Axle Assembly: Locate the dummy end or anti-fall back spring in to the iii.
  • Page 5 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 07. FITTING EMERGENCY OVERRIDES The motor limits are accessible from two sides. This enables the motor to always be fitted to the end plate so that limits are facing down and so that the override is towards the front of the end plate. On a left hand door the motor cable will exit the motor vertically down.
  • Page 6 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 08. CURTAIN ADJUSTMENT (REDUCING HEIGHT/MAKING REPAIRS) The curtain needs to be the correct height for the door to lock Remove slat by carefully snipping ear off end lock before sliding properly (if too tall remove slat(s) – If too short notify supplier). out slat.
  • Page 7 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 09. INSTALL THE CURTAIN IN THE GUIDES, ATTACH TO AXLE & FIT STOPS (CONTINUED) iv. Slide the locking springs with semi-circular attachment vi. Use override to raise door sufficiently to remove toolbox/ bracket onto the top slat. Rotate the axle with the manual block.
  • Page 8 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 10. CURTAIN LOCKING & SETTING MOTOR LIMIT SWITCHES (CONTINUED) Closed/Down limit setting and locking spring adjustment Carefully close the door using either a motor test lead or the remote control unit so that the curtain is fully down and the top slat is pushed forward. The metal attachment springs should be taut but not bent or distorted (see Drawings A, B &...
  • Page 9 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 11. INSTALLATION OF BOX SUPPORTS – OPTIONAL EXTRA FOR HALF BOX OR FULL BOX The box supports you have been supplied need to be riveted to the fascia to hold them in place. First fix the fascia in place then position the box supports within The box supports are supplied with a hole on the top front edge.

  • Page 10: Technical Assistance

    Control unit set up instructions are provided in the control panel accessory box along with the control unit and you can also access them digitally using this QR code or link: www.sws.co.uk/easysetup August 2016 Issue 1 SGLT16...
  • Page 11 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 14. NOTES August 2016 Issue 1 SGLT16...
