www.samsondoors.co.uk
SeceuroGlide Compact
Installation Instructions
Always check on delivery that the order details are correct and the
door is undamaged, especially before removing any existing doors.
Sequence of Installation & Contents
01. Pre-Installation and Component Check
02. Installation Options
03. Prepare the Opening
04. Prepare the Guide Rails
05. Fix Guide Rails & Axle Assembly
06. Fit Emergency Overrides
07. Curtain Adjustment (reducing height/making repairs)
08. Install the Curtain in the Guides, Attach to Axle & Fit Stops
09. Curtain Locking and Setting Motor Limit Switches
10. Commissioning
11. Technical Assistance
12. Notes
01. PRE-INSTALLATION AND COMPONENT CHECK
Check:
i.
Delivery note
ii. Order sheet
iii. Door dimensions / colour
iv. Opening dimensions / clearances
v.
Components
vi. Check for any damage to the guide rails
or the outside roll of the curtain
Do not proceed further with the
installation unless you are sure that
the door is the correct size, and all
components are present.
August 2016
Issue 1
SGCP16
0800 328 6250
www.samsondoors.co.uk

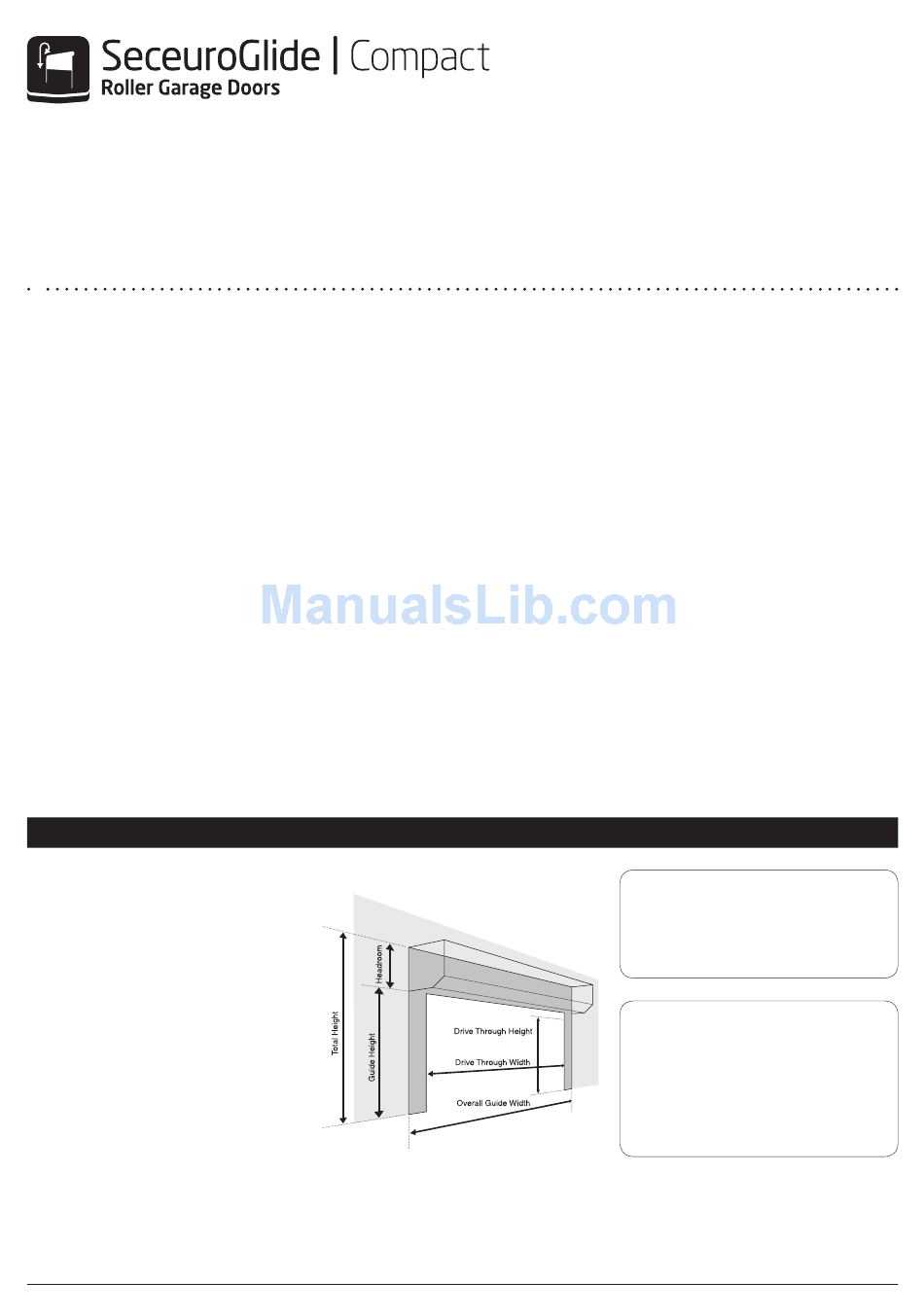

WIDTHS
Manufacturing Width = Over Guide Width
Drive Through Width = Over Guide Width less
120mm for 60mm guides
HEIGHTS
Manufacturing Height = Guide Height
Total Height = Guide Height + End Plate
Headroom/End Plate up to 2.3m Guide Height =
205mm
Drive Through Height = Guide Height less 50mm
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SeceuroGlide Compact and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SWS SeceuroGlide Compact

Summary of Contents for SWS SeceuroGlide Compact

  • Page 1 0800 328 6250 www.samsondoors.co.uk SeceuroGlide Compact Installation Instructions Always check on delivery that the order details are correct and the door is undamaged, especially before removing any existing doors. Sequence of Installation & Contents 01. Pre-Installation and Component Check 02.
  • Page 2 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk ELECTRIC COMPACT GARAGE DOOR COMPONENTS 01. 90° Fascia 02. Motor (fitted into axle) 03. 60mm Octagonal Axle 04. 4 Pairs Compact Locking Collars (fitted on axle) 05. Axle Cap (fitted into axle) 06. R/H End Plate 07.
  • Page 3 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 03. PREPARE THE OPENING Check: Structure is sound/even & can carry the weight of the door iii. Floor is flat/level ii. No obstacles in fitting footprint eg. no sharp objects, pipes, If necessary install a sub-frame to ensure secure, flush and cables, bumps etc.
  • Page 4 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 05. FIX GUIDE RAILS & AXLE ASSEMBLY (CONTINUED) Check: Back faces of guides and end plates are flush and untwisted Secure Motor Power Lead with Cable Clips so that it is tight (see Drawing C) against the end plate –...
  • Page 5 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 06. FITTING EMERGENCY OVERRIDES (CONTINUED) A) Standard Manual Override Standard Manual Override Internal Fitting (see Drawing A): Drill hole for override eye through end plate flange ii. Insert override eye in hole in motor adjacent to limit adjusters iii.
  • Page 6 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 07. CURTAIN ADJUSTMENT (REDUCING HEIGHT/MAKING REPAIRS) If the door needs to be reduced in width it will need returning to Remove slat by carefully snipping ear off end lock before sliding the supplier. out slat. Preferably take slats off from the top of the curtain to save having to remove and refit bottom slat.
  • Page 7 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 08. INSTALL THE CURTAIN IN THE GUIDES, ATTACH TO AXLE & FIT STOPS (CONTINUED) iv. Slide the locking springs with semi-circular attachment vi. Use override to raise door sufficiently to remove toolbox/ bracket onto the top slat. Rotate the axle with the manual block.
  • Page 8 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 09. CURTAIN LOCKING & SETTING MOTOR LIMIT SWITCHES Compact Roller Garage Door is manufactured with the curtain height to suit the length of guide supplied. The door will not lock down properly if the curtain is either too tall or too short. If the guide height has been adjusted on site, check that the top of the curtain is neither below the top of the guide nor more than one slat above (see Drawing A &...

  • Page 9: Final Checks

    Control unit set up instructions are provided in the control panel accessory box along with the control unit and you can also access them digitally using this QR code or link: www.sws.co.uk/easysetup August 2016 Issue 1 SGCP16...
