SWS SeceuroGlide Installation Instructions Manual

Electric roller garage door
Hide thumbs Also See for SeceuroGlide:

Advertisement

Quick Links

Download this manual
www.samsondoors.co.uk

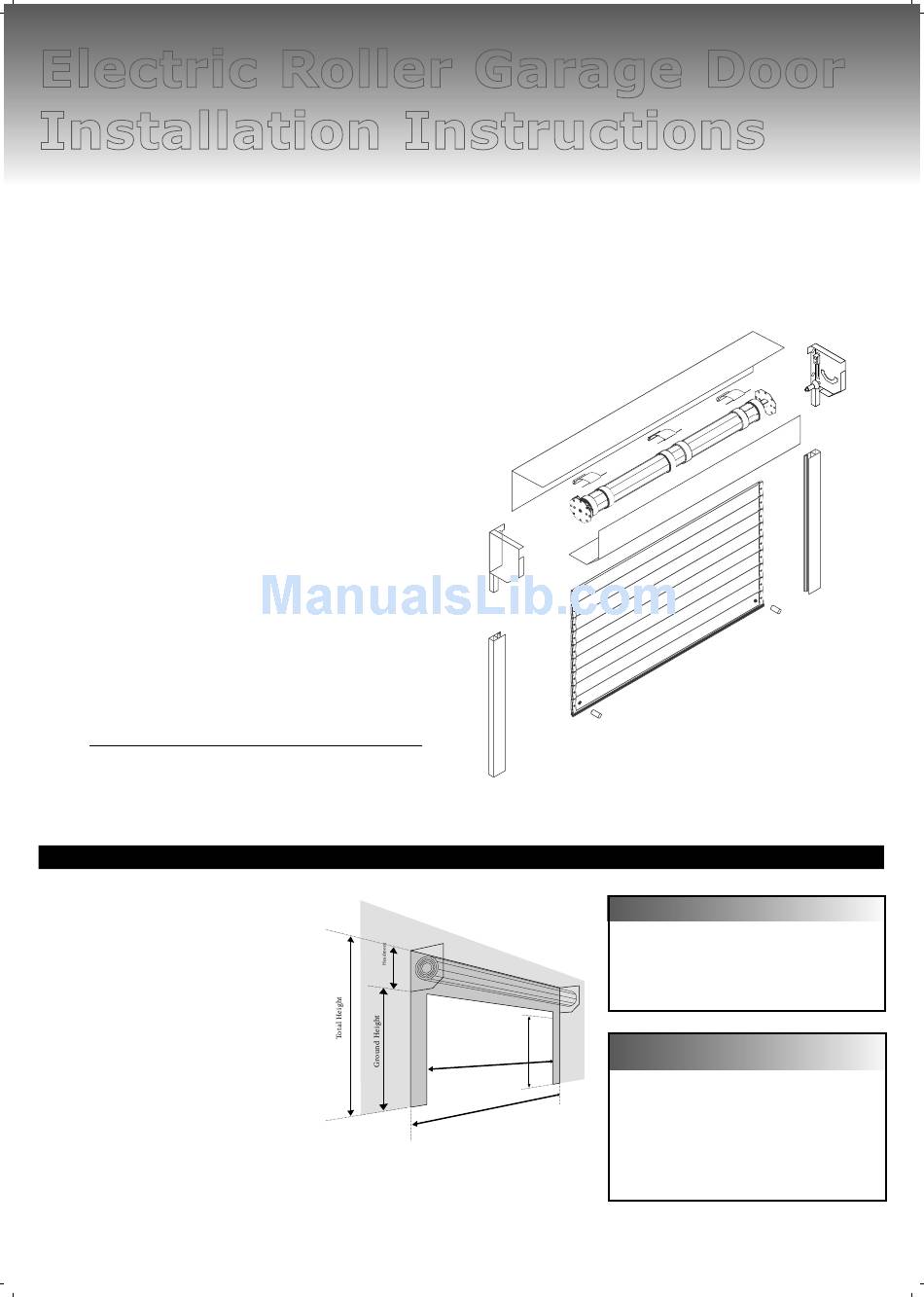

Electric Roller Garage Door
Installation Instructions
Note: Due to ongoing development some of the information and procedures may not exactly correlate to the product received. If in
doubt, please ask your supplier.
ALWAYS CHECK ON DELIVERY THAT THE ORDER DETAILS ARE CORRECT AND THE
DOOR IS UNDAMAGED BEFORE REMOVING ANY EXISTING DOORS.
Sequence of Installation & Contents
1.
Pre-installation and component check
2.
Installation options and criteria for compliance with LPS 1175
3.
Prepare the opening
4.
Prepare the guide rails
5.
Fit end plates, guides & axle (& optional fascia)
6.
Fit emergency overrides
7.
Curtain adjustment (reducing height/making repairs)
8.
Install the curtain in the guides, attach to axle & fit stops
9.
Curtain locking & setting motor limit switches
10.
Commissioning
11.
Maintenance, repairing and dismantling instructions
1. PRE-INSTALLATION AND COMPONENT CHECK:
Check:
i)
delivery note
ii)
order sheet
iii) door dimensions/colour
iv) opening dimensions \clearances
v)
components
vi) Check for any damage to the guide rails
or the outside roll of the curtain
Do not proceed further with the
installation unless you are sure that
the door is the correct size, and all
components are present.
April 2013
Issue 1 MK516BO
1
www.samsondoors.co.uk
0800 328 6250
Drive Through Height
Drive Through Width
Over Guide Width
0800 328 6250
www.samsondoors.co.uk
Heights
Order Height = Guide Height
Total Height = Guide Height + End Plate
Headroom/End Plate
up to 2.5m Guide Height = 300mm
up to 3.5m Guide Height = 350mm
Drive Through Height = Guide Height less 55mm
Widths
Order Width = Over Guide Width
Drive Through Width = Over Guide Width less 150mm for 75mm guides
Drive Through Width = Over Guide Width less 180mm for 90mm guides
Curtain Width = Over Guide Width less 90mm
Axle Width = Over Guide Width less 90mm (without spring)
= Over Guide Width less 73mm (with spring)
www.samsondoors.co.uk
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SeceuroGlide and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SWS SeceuroGlide

Summary of Contents for SWS SeceuroGlide

  • Page 1 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk Electric Roller Garage Door Installation Instructions Note: Due to ongoing development some of the information and procedures may not exactly correlate to the product received. If in doubt, please ask your supplier. ALWAYS CHECK ON DELIVERY THAT THE ORDER DETAILS ARE CORRECT AND THE DOOR IS UNDAMAGED BEFORE REMOVING ANY EXISTING DOORS.

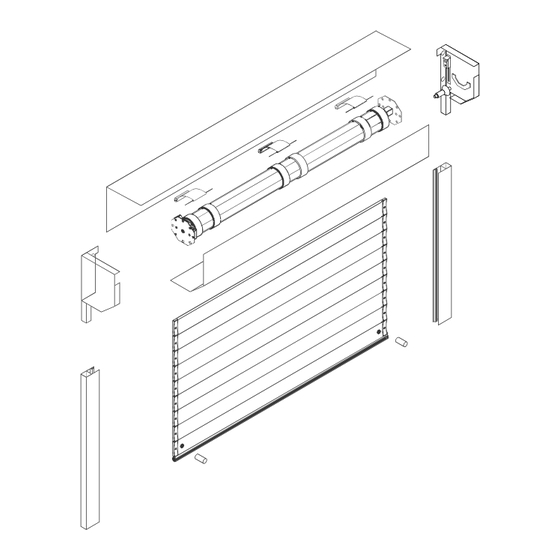

  • Page 2 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk ELECTRIC ROLLER GARAGE DOOR COMPONENTS 1a OPTIONAL 90 DEGREE FASCIA 1b OPTIONAL 45 DEGREE LID MOTOR (fitted into axle) 102mm ROUND AXLE LOCKING COLLARS (fitted to axle 6 No. up to 2.5m, 8 No. up to 3.5m 10 No.over 3.5m) DUMMY END or SPRING 6 x No.
  • Page 3 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 2. INSTALLATION CRITERIA FOR COMPLIANCE WITH LPS 1175: ISSUE 7 Internal installation only The garage door must be installed internally. If all of the end plate is not fitted above the openng then a 90° facia must be fitted to the door.

  • Page 4: Prepare The Opening

    www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 3. PREPARE THE OPENING: Check: header to twist the guides, distort the fascia or catch on the structure is sound/even & can carry the weight of the door curtain (curtain weight is approximately 5kg/m2 and allow an extra iii) floor is flat/level 15kg for the guides, end plates and axle assembly).
  • Page 5 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk vii) The dummy end octagonal fixing plate is supplied in the N.B. In the event that the screw does not hold, drill a new pilot hole through the mounting bracket and octagonal fixing plate and try again.
  • Page 6 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk Standard Manual Override If this door has end plates that are not fitted above the opening and it is compliant with LPS1175 then a plastic tube must be fitted Standard over the rigid eye before it is inserted into the motor and secured Manual Override in place.
  • Page 7 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 8. INSTALL THE CURTAIN IN THE GUIDES, ATTACH TO AXLE & FIT STOPS position unattached end of locking/attachment arm so that the Check that there are at least 3 pairs of collars on the axle and fixing bolt line up with locating holes in the two collars (rotate that they are facing the correct direction –...
  • Page 8 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 9. CURTAIN LOCKING & SETTING MOTOR LIMIT SWITCHES both screws in each block are tightened so that the block will Before you operate the door electrically you may want to not be lifted. operate the door slowly using the manual override provided to ensure that the door will not catch on any protrusions as iii) Continue to wind door down until the curtain is tight against it travels up and down.

  • Page 9: Final Checks

    www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 10. COMMISSIONING INTERNAL FITTING This will take a few moments to occur. If you wish to demonstrate the manual override immediately after Fit optional 45 degree lid. A slot may have to be cut into the lid to opening the door press either the stop button on the handset or simulate a power cut by switching off the power to the Control pass over the override eye.
  • Page 10 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 10) Replace the motor / dummy end / anti-fall back spring, REPLACING MOTORS / DUMMY ENDS / ANTI- re-rivet and refit the octagonal fixing plate to the motor end. FALL BACK SPRINGS: 1) Lower the curtain to the fully closed position. 11) Install the axle assembly as per section 5 remembering to tension the anti-fall back spring if one is installed.
  • Page 11 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk REVERSING THE MOTOR HAND: 1) Lower the curtain to the fully closed position. 10) Slide out dummy end / spring and remove all collars 2) Disconnect the curtain from the axle. 11) If an anti-fall back spring has been fitted you will need to remove the spring inserts at both ends of the spring and swap them round to reverse the handing of the spring.

  • Page 12: Dismantling Procedure

    www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk the set up procedure outlined in a seperate document. 1) Lower the curtain to the fully closed position. DISMANTLING PROCEDURE 2) Disconnect the curtain from the axle. 3) If you would like to use the curtain again you should cover the axle with bubble wrap or similar packaging material to avoid damaging the curtain when you remove it.
