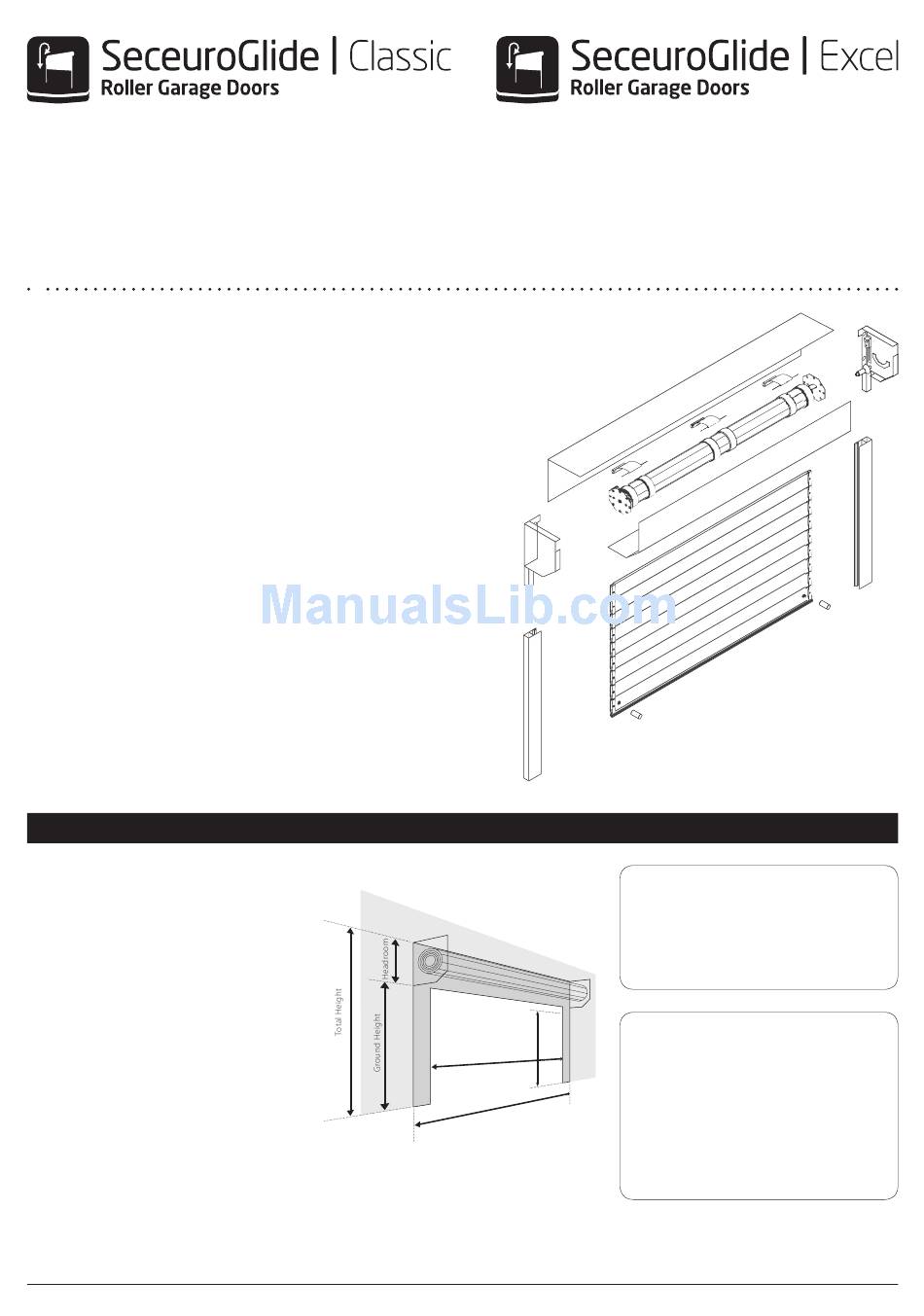

SeceuroGlide Classic &
SeceuroGlide Excel Installation Instructions
Always check on delivery that the order details are correct and the
door is undamaged, especially before removing any existing doors.
Sequence of Installation & Contents
01. Pre-Installation and Component Check
02. Installation Options and Criteria for Compliance with LPS 1175
05. Fit End Plates, Axle Assembly, Guides (& optional fascia)
07. Install the Curtain in the Guides, Attach to Axle & Fit Stops
08. Curtain Locking & Setting Motor Limit Switches
09. Curtain Adjustment (reducing height/making repairs)
01. PRE-INSTALLATION AND COMPONENT CHECK
Check:
i.
Delivery note
ii. Order sheet
iii. Door dimensions / colour
iv. Opening dimensions / clearances
v.
Components
vi. Check for any damage to the guide rails
or the outside roll of the curtain
Do not proceed further with the
installation unless you are sure that
the door is the correct size, and all
components are present.
August 2016
Issue 1
SGEX16
0800 328 6250
Drive Through Height
Drive Through Width
Over Guide Width
www.samsondoors.co.uk
WIDTHS
Order Width = Over Guide Width
Drive Through Width
Over Guide Width less 150mm for 75mm guides
Over Guide Width less 180mm for 90mm guides
HEIGHTS
Order Height = Guide Height
Total Height = Guide Height + End Plate
Headroom/End Plate
up to 2.5m Guide Height = 300mm
up to 3.5m Guide Height = 350mm
Drive Through Height
Guide Height less 55mm
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SWS SeceuroGlide Classic
Summary of Contents for SWS SeceuroGlide Classic
- Page 1 0800 328 6250 www.samsondoors.co.uk SeceuroGlide Classic & SeceuroGlide Excel Installation Instructions Always check on delivery that the order details are correct and the door is undamaged, especially before removing any existing doors. Sequence of Installation & Contents 01. Pre-Installation and Component Check 02.
- Page 2 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk ELECTRIC ROLLER GARAGE DOOR COMPONENTS 01A. Optional 90 Degree Fascia 01B. Optional 45 Degree Lid 02. Motor (fitted into axle) 03. 102mm Round Axle 04. Locking Collars (fitted to axle 6 no. up to 2.5m, 8 no. up to 3.5m 10 no.
- Page 3 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 02. INSTALLATION OPTIONS AND CRITERIA FOR COMPLIANCE WITH LPS 1175: ISSUE 7 Internal installation only The garage door must be installed internally. If all of the end plate is not You must use all three fitted above the opening then a 90°...
- Page 4 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk ALTERNATIVE INSTALLATION OPTIONS (NOT COMPLIANT WITH LPS 1175) External installation Combination of face and reveal fit The door can be installed externally if In this situation one guide rail is reveal fitted and the other compliance with LPS 1175 is not required.
- Page 5 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 03. PREPARE THE OPENING Check: Structure is sound/even & can carry the weight of the door High winds and high temperatures can cause increased deflection of the door. It is the installer’s responsibility to (curtain weight is approximately 5kg/m2 and allow an extra 15kg for the guides, end plates and axle assembly) ensure that the door is packed off the wall sufficiently to allow for door movement during these extreme weather conditions.
- Page 6 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 05. FIT END PLATES, AXLE ASSEMBLY, GUIDES (& OPTIONAL FASCIA) Make sure the motor and override hole are correctly orientated N.B. When fitting doors with 300mm end plates and the guide height is more than 2300mm it is important that you check that and the limit switches are accessible from below –...
- Page 7 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 06. FITTING EMERGENCY OVERRIDES Possible Override Exit Options N.B. We recommend override exits 1 or 2 shown below as option 3 will be more difficult to operate. Left Hand viewed Right Hand viewed Right Hand viewed from centre of door from centre of door from centre of door...
- Page 8 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 07. INSTALL THE CURTAIN IN THE GUIDES, ATTACH TO AXLE & FIT STOPS Check that there are at least 3 pairs of collars on the axle and Position unattached end of locking/attachment arm so that they are facing the correct direction – see Drawing D. that the fixing bar lines up with locating holes in the two collars (rotate axle with override if necessary) and slide collars together making sure pre-positioned collar is tight against...
- Page 9 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 08. CURTAIN LOCKING & SETTING MOTOR LIMIT SWITCHES Before you operate the door electrically you may want to Closed / down limit setting and locking section adjustment: operate the door slowly using the manual override provided The locking block position must be checked before proceeding –...
- Page 10 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 09. CURTAIN ADJUSTMENT (REDUCING HEIGHT/MAKING REPAIRS) The curtain needs to be the correct height for the door to lock Roll out the curtain on a flat and protected surface, such properly (if too tall remove slat(s) – If too short notify supplier). as bubble wrap and/or cardboard packaging in which the The optimum curtain height finishes midway up the end plate to curtain was delivered.
- Page 11 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk 10. INSTALLATION OF BOX SUPPORTS – OPTIONAL EXTRA FOR HALF BOX OR FULL BOX The box supports you have been supplied need to be riveted to the fascia to hold them in place. First fix the fascia in place then position the box supports within The box supports are supplied with a hole on the top front edge.
- Page 12 Control unit set up instructions are provided in the control panel accessory box along with the control unit and you can also access them digitally using this QR code or link: www.sws.co.uk/easysetup August 2016 Issue 1 SGEX16...
