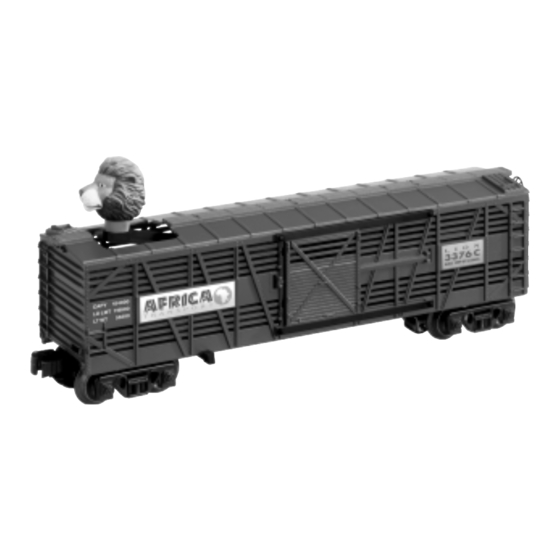

- Page 1 71-9850-250 3/00 LIONEL Lionel 3376 Lionel Lion Animated Figure Transport Car With CarSounds Owner’s Manual...
-
Page 2: Table Of Contents
• Die-cast trucks. Command™ model railroad con- trol system • Die-cast Electrocouplers Table of contents Transformer operations Running your CarSounds Transport car with a Lionel transformer Figure Action Tell-tale Assembly Tell-tale Base and Ramp Assembly Using your CarSounds animated transport’s ElectroCouplers ™... -
Page 3: Transformer Operations
Power up your CarSounds animated transport car with your transformer. • Your CarSounds animated transport car is designed to operate on 7-18 volts alternating current. Virtually all Lionel and Lionel-compatible alternating-current transformers are suitable; we recommend the TrainMaster Command model railroad control system. -
Page 4: Tell-Tale Assembly
Transformer operations Figure action he Lionel lion rides in the Lionel #3356 train, allows him to see clear track ahead Africa Transport Stock Car. The lion is a and he lets the engineer know. Lets install lively participant on your layout. His... -
Page 5: Tell-Tale Base And Ramp Assembly
Transformer operations Tell-tale base and ramp assembly The signal base may be clamped to any straight track. If placed next to a curved track, it must be faced so that the pole is on the INSIDE of the curve. Assembled tell-tale pole 4) Insert the assembled tell-tale pole onto the sig- nal base with the tall-... -
Page 6: Using Your Carsounds Animated Transport's Electrocouplers
Lionel remote-control track section (avail- Lionel magnetic couplers directly to your able separately). Place your rolling stock’s coupler “trigger disc” over the central coil... -
Page 7: Lion Head Assembly
Transformer operations Lion Head Assembly efore you place the Carsounds Animated from moving, then press the lion into place. Transport car into service on your rail- Be sure that the lion faces away from the road, you must mount the lion to the operat- brake wheel toward the front of the car. -
Page 8: Trainmaster Command Operations The Command Control Environment
• Make sure your Lionel Command Base is ON and its communications wire is connected to the COMMON post on your Lionel transformer or the U post on any of your installed PowerMasters. • Once positioned on the track, increase track voltage to FULL (on PowerMaster, slide the CMD/CONV switch to CMD). -
Page 9: Running Your Carsounds Animated Transport In The Trainmaster Command Environment
TrainMaster Command operations Running your CarSounds animated transport in the TrainMaster Command environment our Command-equipped CarSounds ani- Example address Locomotive #1 mated transport comes factory-pro- grammed with an ID# of “1.”To get your PowerMasters set to CMD or CarSounds™ animated transport in action, traditional power supplies ON FULL set PowerMasters to CMD or set all power sup- plies on full. -
Page 10: Cab-1 Numeric Keypad Commands For Your Carsounds Animated Transport Car
TrainMaster Command operations CAB-1 numeric keypad commands for your CarSounds™ animated transport AUX1 hen you press AUX1 on CAB-1, included with your CarSounds ™ ani- you turn the numeric keypad into mated transport are designed to help you 10 command buttons. The keypad learn the auxiliary features specific START-UP lets you control extra command... -
Page 11: Assigning Your Carsounds Animated Transport A New Id
TrainMaster Command operations Assigning your CarSounds ™ animated transport a new ID# s your fleet of Command-equipped Example Assign a new I D# to Lionels grows, give your CarSounds™ your R2LC-equipped animated transport its own ID#. Choose CarSounds animated transport from any between 1 and 99. -
Page 12: Advanced Trainmaster Command Operations
Advanced TrainMaster Command operations Building “TRAINS” o experience the most from your Lionel build a Train # (you select) Example CarSounds animated transport, you using engine numbers you should program it as part of a ”TRAIN” so assigned . your animated transport will work together All “ENGINES”... - Page 13 Advanced TrainMaster Command operations Building “TRAINS” Assigning the animated transport car It‘s still an “ENGINE”. Note! Whenever an ”ENGINE” is in a Press TR “TRAIN”, you can still individually address it (using its ENG ID#), open individual cou- plers, and tune performance. Press ? (the train number you selected) Press ?? (the engine...
-
Page 14: Special Script
Advanced TrainMaster Command operations Special Script special interactive script may be enacted d) Start the train pulling away from the by your Lion Car when it’s assigned in uncoupled Lion Car; a train. To enact the script, the operator should perform the following sequence: e) Lion groans, repeated up to three times f) Stop the train, reverse its direction and a) Stop the train after some motion;... -
Page 15: Volume And Switch Location On Animated Transport Car
Advanced TrainMaster Command operations Volume and switch location on animated transport car his drawing is provided as an aid in locations on the bottom of your animated helping you locate the switch and knob lion transport car. Rear of CarSounds Lion actuating lever Front of CarSounds animated transport... -
Page 16: Warranty Information
Website @ www.Lionel.com sumer-purchaser, for one year against original If you prefer to send it back to Lionel L.L.C. for defects in materials or workmanship when pur- factory repair, you must first call 810-949-4100 or chased through an authorized Lionel merchant.
