Deskew and Gain Cal Fixture Instructions

Overview
Deskew Fixture Instructions
Cable retainer (4)
Springs (3)
Guide posts (3 pairs)
Probe holders (2)

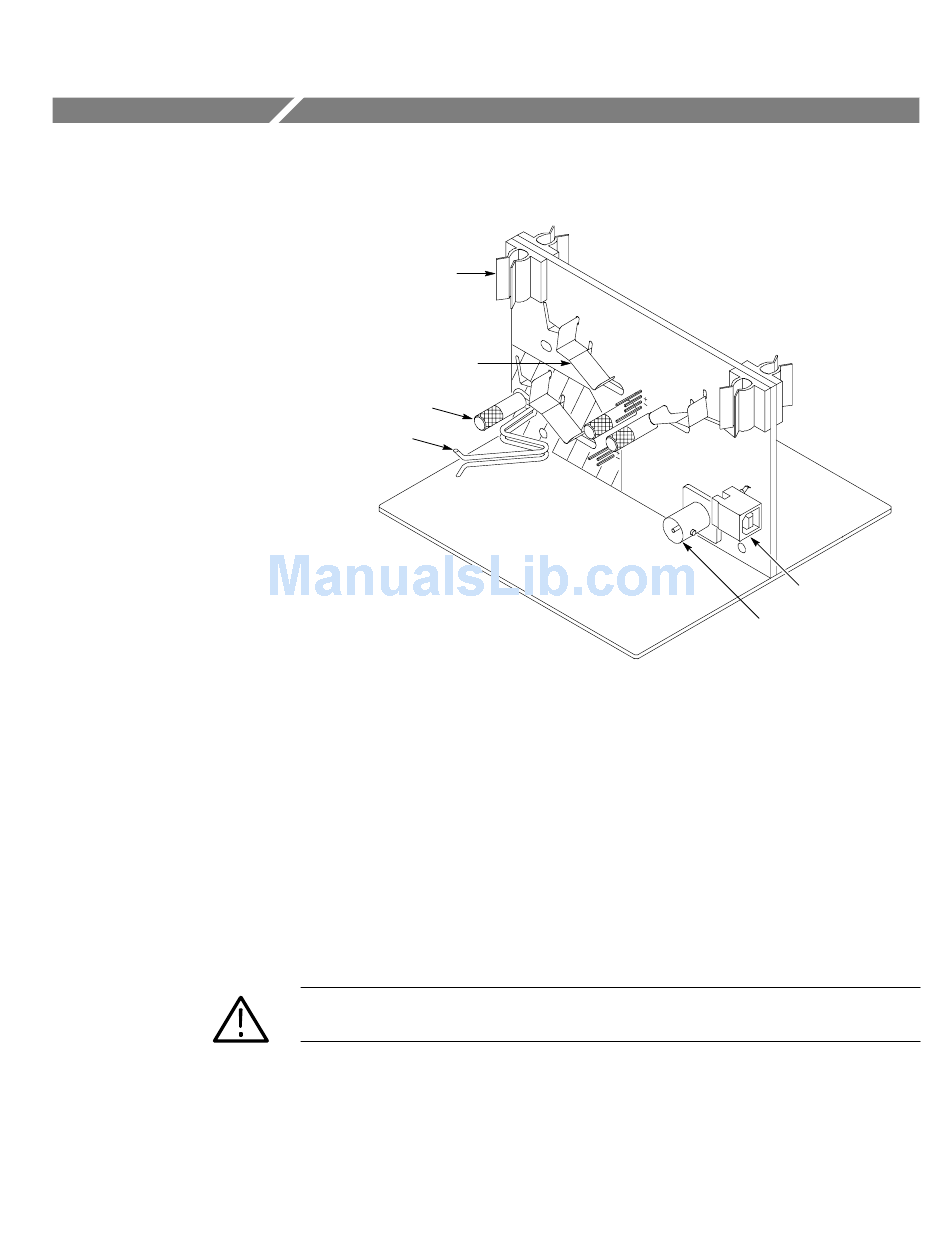

Figure 1:
Overview of Deskew Fixture
This fixture provides an edge source to time align (deskew) and to optimize
oscilloscope gain and offset accuracy at the probe tip.
The Deskew Fixture accommodates several Tektronix probes. It has components
that aid in the alignment of probes, such as cable retainers, stainless steel
springs, guide posts and square pins. The probes are held in place allowing
hands-free operation without requiring a probe arm.
CAUTION. Static discharge can damage any semiconductor component on this
deskew fixture.
Adhere to the following precautions to avoid damaging internal modules and
their components due to electrostatic discharge (ESD).
1. Transport and store the deskew fixture in static protected containers.
USB Port
GAIN CAL SIG
connector
1
