Deskew and Gain Cal Fixture Instructions
4
4. All probe tips should contact the SKEW ADJUST pins at the center of the
probe tips. See Figure 3 on page 5.
5. Set the probe atten switch to 1X position.
6. You can install up to four differential probes using both sides of the Deskew
Fixture. You can also install up to two single-ended probes.
7. Proceed to Using the Deskew Fixture to deskew channels, page 12.
Springs
Guide posts

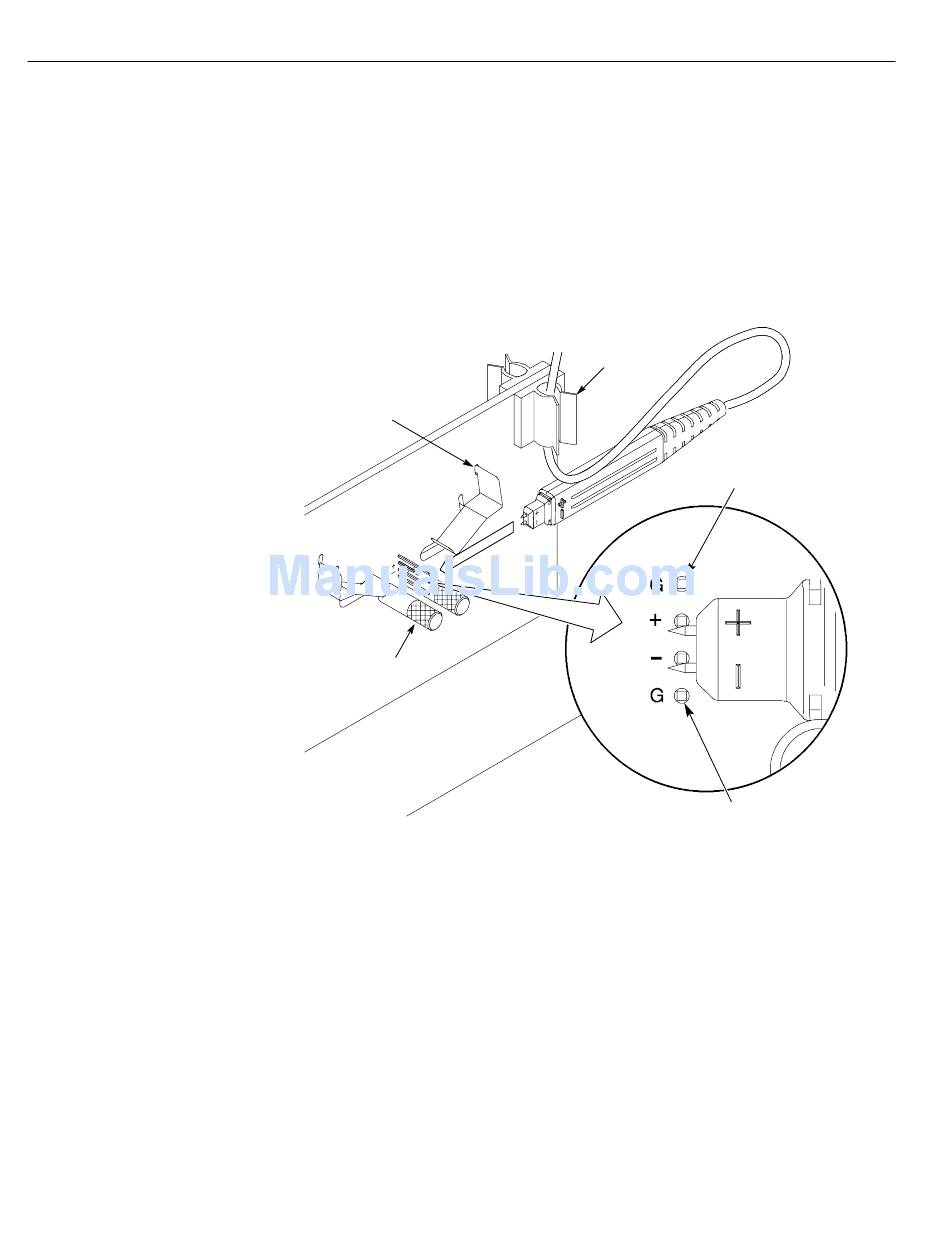

Figure 2: P6246, P6247, P6248, P6330 or P7330 fixture connections
Cable retainer
Ground
Ground
