Deskew and Gain Cal Fixture Instructions
P6249, P7240, P7260 with
6
Ground

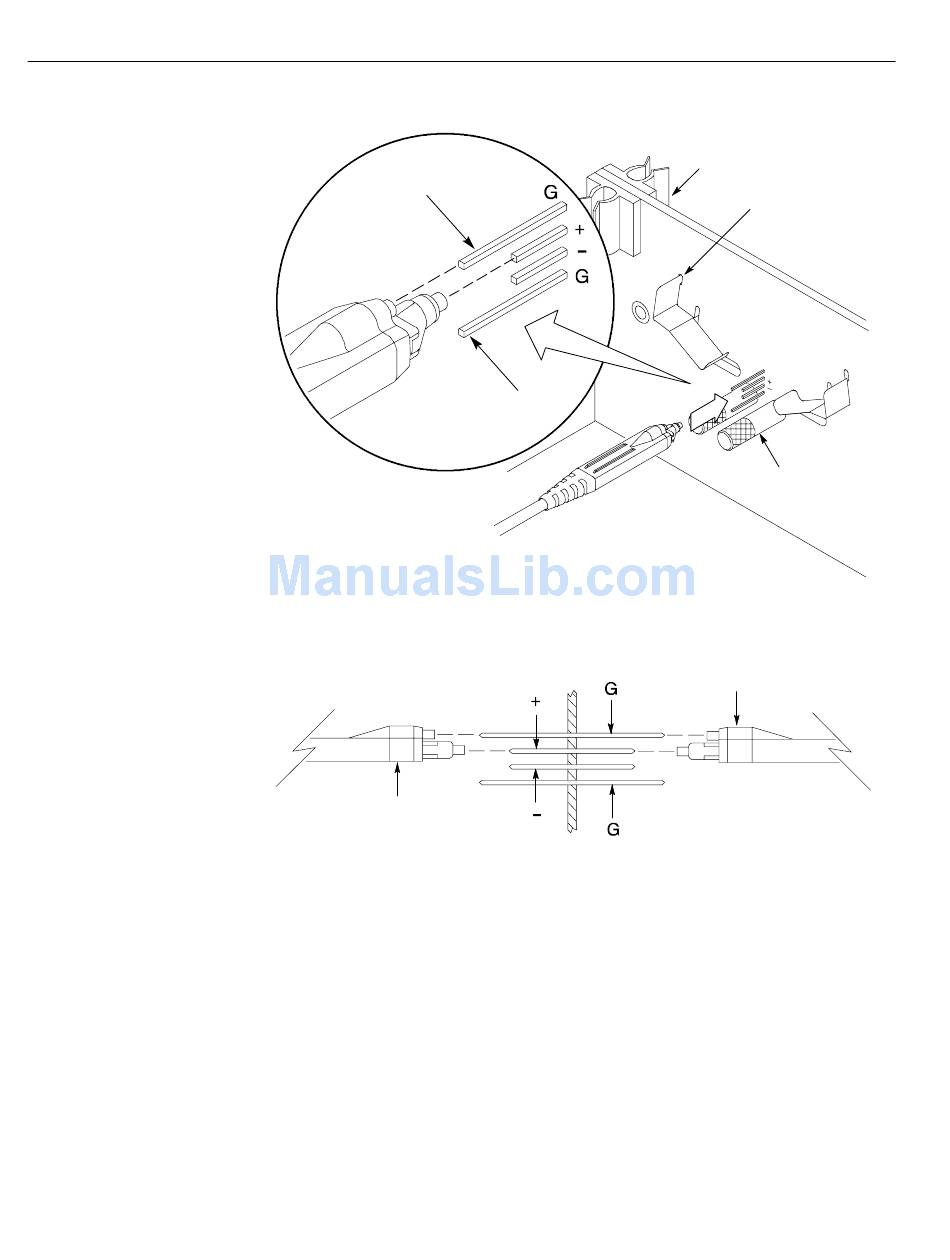

Figure 4: P6249 or P7240 without tips
Deskewed probe
Figure 5: P6249 or P7240 each side of the fixture, without tips
Use this procedure to deskew P7260 single-ended probe. To deskew P6249 and
tips
P7240 single-ended probes install the Tektronix probe tips:
1. Install the guide posts and probe holders to the SKEW ADJUST probe
holder position. See Figure 6 on page 8.
2. Secure the probe holders to the deskew fixture by installing the guide posts
through the probe holders and into the mounting hole.
3. Slide probe(s) into the probe holder(s) and tighten both guide posts.
Ground
Deskewed probe
Deskew Fixture Instructions
Cable retainer
Springs
Guide posts
