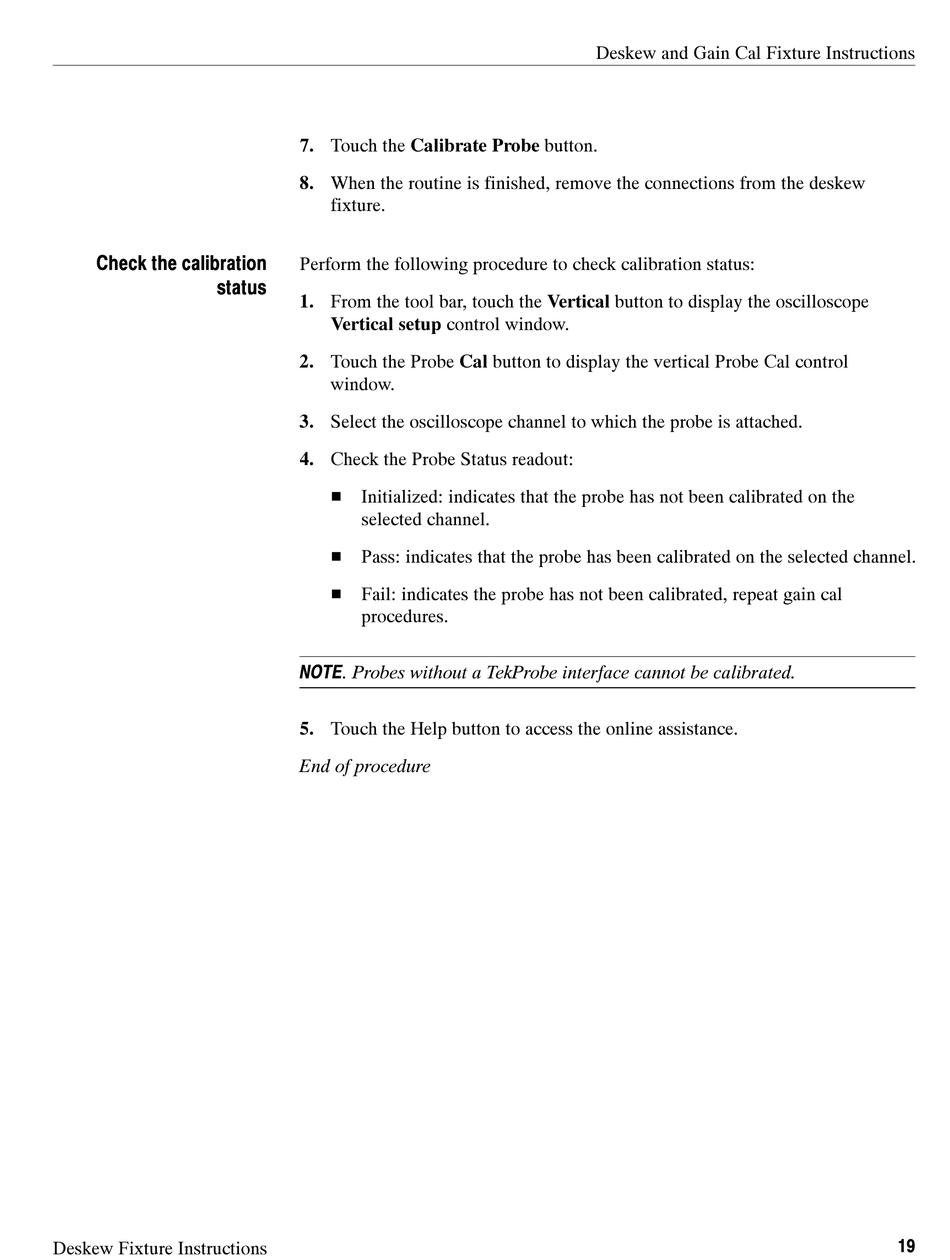

Check the calibration
status
Deskew Fixture Instructions
7. Touch the Calibrate Probe button.
8. When the routine is finished, remove the connections from the deskew
fixture.
Perform the following procedure to check calibration status:
1. From the tool bar, touch the Vertical button to display the oscilloscope
Vertical setup control window.
2. Touch the Probe Cal button to display the vertical Probe Cal control
window.
3. Select the oscilloscope channel to which the probe is attached.
4. Check the Probe Status readout:
H Initialized: indicates that the probe has not been calibrated on the
selected channel.
H Pass: indicates that the probe has been calibrated on the selected channel.
H Fail: indicates the probe has not been calibrated, repeat gain cal
procedures.
NOTE. Probes without a TekProbe interface cannot be calibrated.
5. Touch the Help button to access the online assistance.
End of procedure
