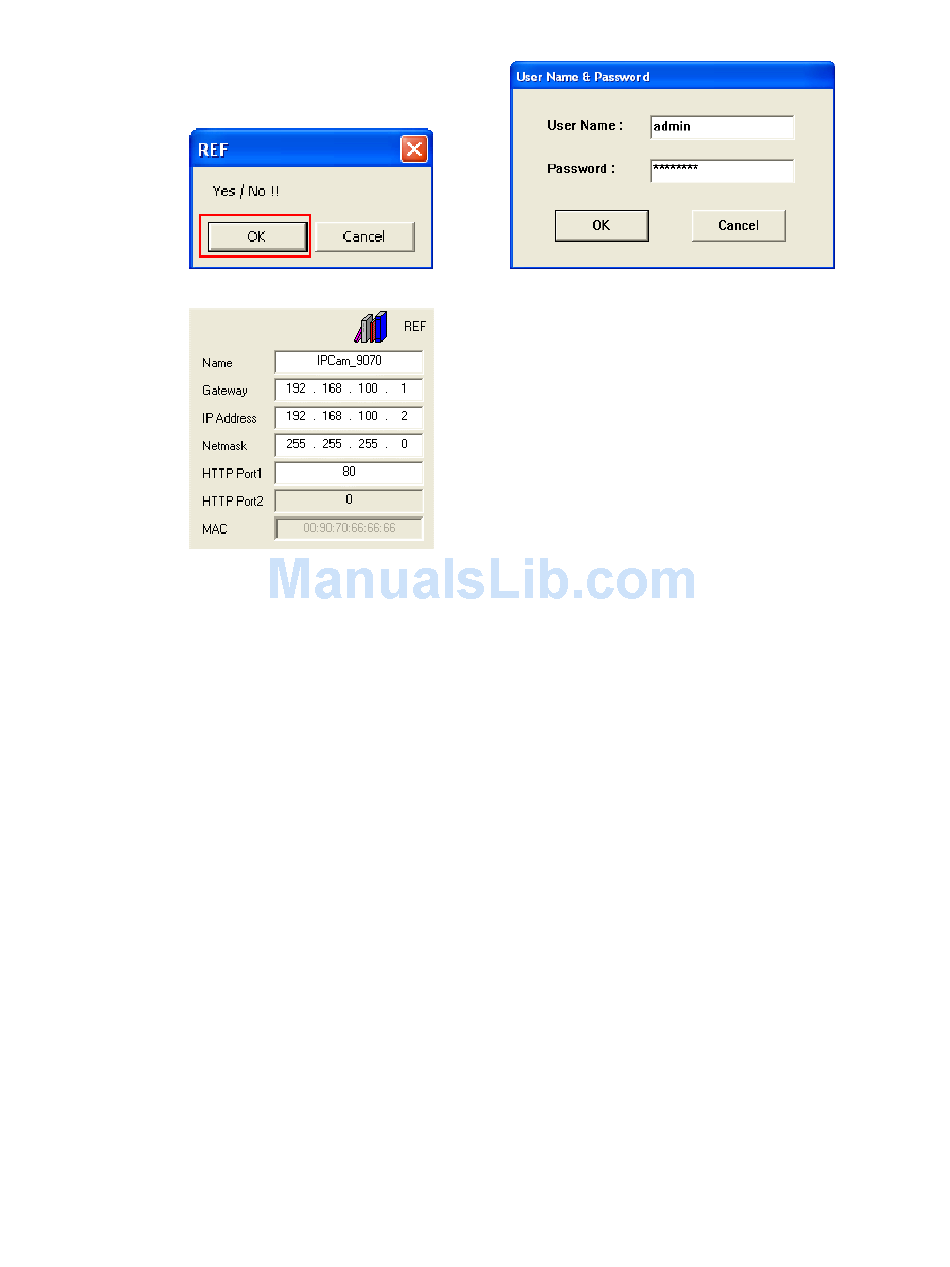

4.) Then hit the rescan button on IPEdit to confirm the changes have been made.
5.) Once you have found your device double click on the device and the internet
explorer will pop up and ask for your login information.
6.) Type in your password & login and the device is ready to use.
* Remember that to access your device from the outside network, you will need to port
forward the IP Address of your device.

5.) Hardware Setup

1.) Connect the IP Power 9258 DS to a HUB or Router with a RJ45 network
cable.
2.) Connect the HUB or Router to the internet (May through ADSL/XDSL
modem).
3.) Connect the power adapter to the IP Power 9258 DS.
4.) Connect the power adapters of under control electric equipment to
corresponding out port of IP Power 9258-Pro.
Turn on your computer and the power adapter of IP Power 9258-Pro
* For 220-250V, please use power cable that can support 10A current.
Max. output current: (total of each four outlets) 10A, (each outlet) 6A.
* For 100-120V, please use power cable that can support 15A current.
Max. Output current: (total of each four outlets) 15A, (each outlet) 6A
