4.) Quick Start Guide

Quick Hardware Setup

*Before you plug in the device make sure you have the appropriate input plugs.
* For 220-250V, please use power cable that can support 10A current.
Max Output Current: (total of each four outlets) 10A, (each outlet) 6A.
* For 100-120V, please use power cable that can support 15A current.
Max Output Current: (total of each four outlets) 15A, (each outlet) 6A
1.) Make sure that all the package contents are included, if anything is missing
please contact the store.
2.) Plug the RJ45 (Ethernet Cable) from your router or modem to any of the 4 ports
on the 9258 DS.
3.) Plug in the Input Power Plugs into the device and then into the wall of your
device.
4.) Plug in the devices that you want to control in the output ports of the 9258 DS

Quick Device Setup

Using IPEdit

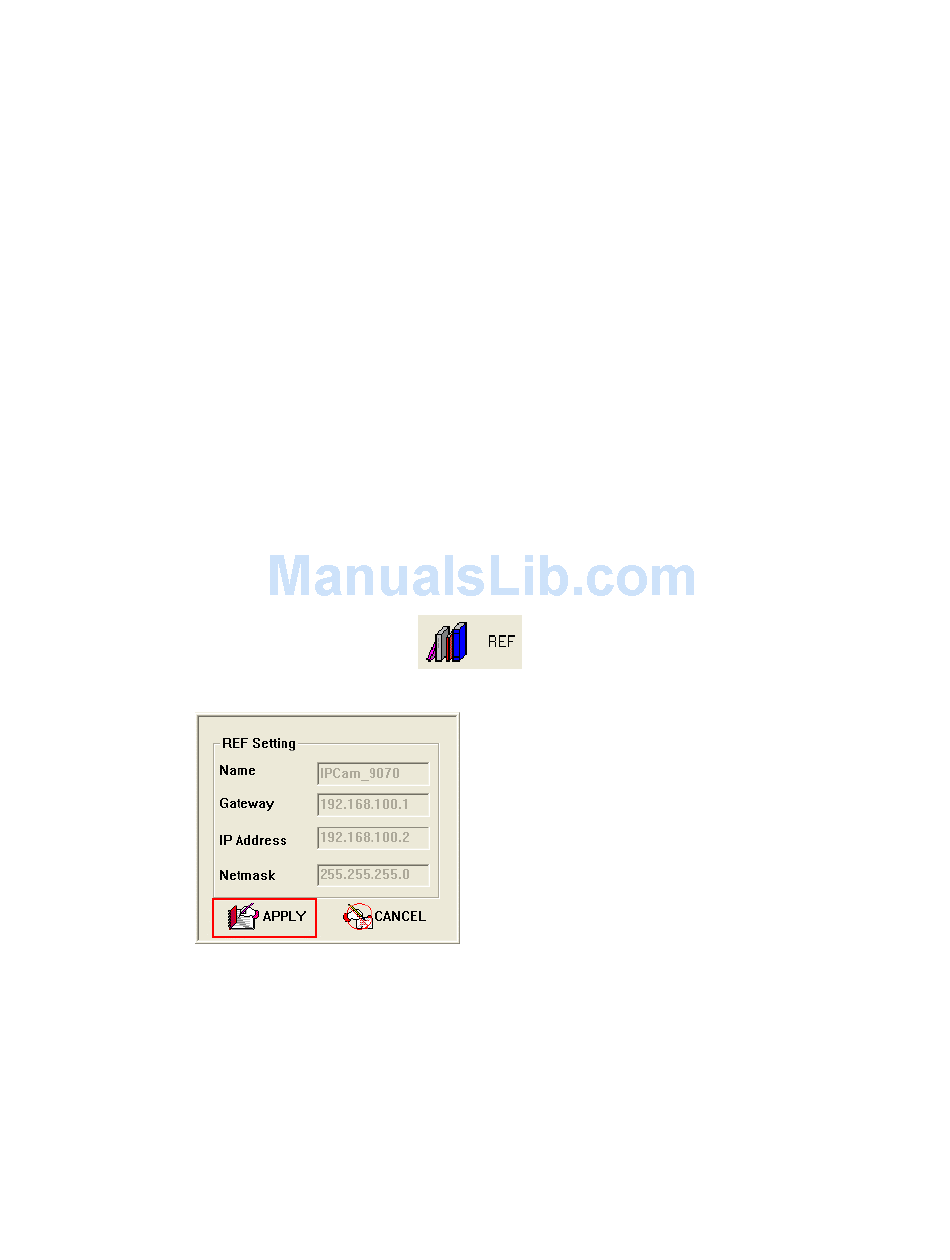

1.) Click on the REF button,
automatically detect the network settings and setup the device.
2.) Once settings have been detected hit the apply button to apply the new settings.
3.) Hit yes to confirm and Enter the login and password for the Device to Approve
changes
and wait a few seconds. IPEdit will
- 10 -
