RECEIVER SPECIFICATION
Power Requirements 120V or 230V AC adaptor with 2.1 mm female plug
Power Requirements
Signal/Noise Ratio
Border Upon Channel Rejection
Image & Spurious Rejection
Audio Output Level
Receiving Sensitivity
Dimensions
HAND-HELD TRANSMITTER SPECIFICATIONS
Power Requirements
Nominal Currant Drain
Modulation Type
RF Output
Max Deviation
Spurious Emission
Dimensions
BODY-PACK TRANSMITTER SPECIFICATIONS
Power Requirements
Nominal Current Drain
Modulation Type
RF Output
Max Devia tion
Spurious Emission
Dimensions

OPTIONAL ACCESSORIES

1/4" to 1/4" Cable (The Guitarst -UHF only)
1/4" to Miniature Connector
1.8 Meter (6 ft.) Receiver-Mixer Cable
12-15 V DC nominal, 500mA+
MORE THAN 85dB
MORE THAN 70dB
MORE THAN 70dB
0- 300mV
-105dBm
394MM X 235MM X 55MM
1.5V AA battery X 2
LESS THAN 100mA
FM
MORE THAN 10dBm
70KHz
MORE THAN 55dB
238MM X 50MM X 50MM
250MM X 51MM X 51MM
1.5V AA battery X 2
LESS THAN 100mA
FM
MORE THAN 10dBm
70KHz
MORE THAN 55dB
100MM X 65MM X 30MM
11

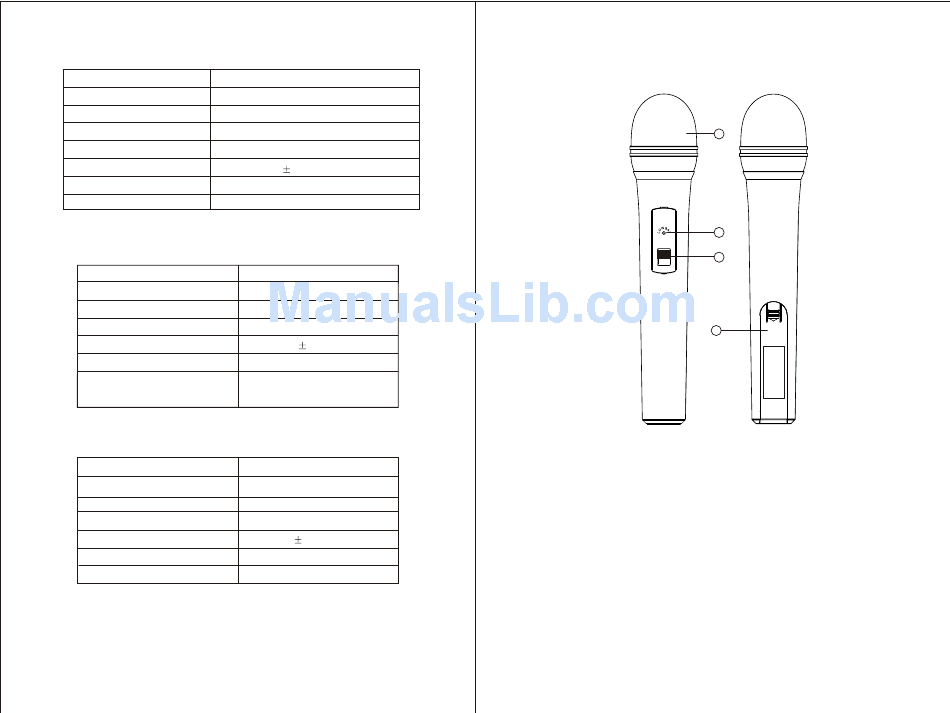

MICROPHONE-TRANSMITTER FEATURES
ON
1. Grille: Protects the cartridge and help reducing the breath sounds and wind
noise.
2. Battery Cover: Open it to install the battery.
3. Low Battery Indicator: Red light glows when it is lack of power and should
renew the battery.
4.Power and Audio Mute Switch.
1
3
4
2
4
