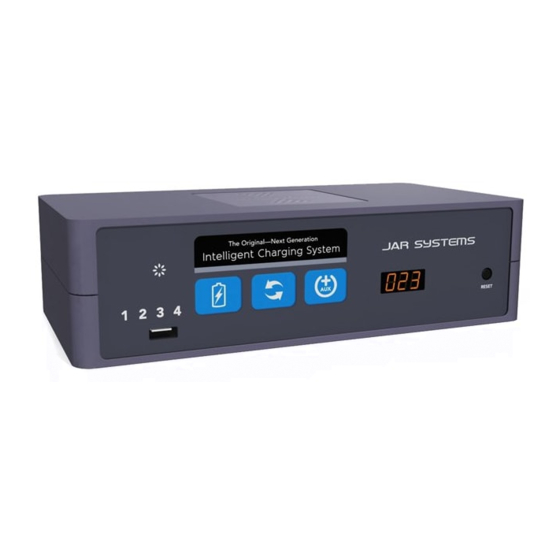

JAR Systems PB-80C24 User Manual

Intelligent charging system
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Intelligent Charging System
User Manual | PB-80C24

Advertisement

Table of Contents
loading

Related Manuals for JAR Systems PB-80C24

Summary of Contents for JAR Systems PB-80C24

  • Page 1 Intelligent Charging System User Manual | PB-80C24...
  • Page 2 Introduction The Intelligent Charging System uses power sensors and charging logic to deliver the fastest, most efficient possible charge. The system automatically evaluates the power draw from each charging outlet, directing power to the areas with the most demand first and charging as many devices simultaneously as possible from a single 15A outlet.
  • Page 3 Quick Start Guide To Begin Charging: • Connect to Power (AC 115V 60Hz) • Select Charging Mode... CHARGE MODE MANAGE MODE Best used if all devices are powered Best used if all or some devices are off and connected at the same time. left on or are returned at different Power is discontinued when batteries times.

  • Page 4: Basic Functions

    Basic Functions Charge Mode Pressing the CHARGE button will start charge mode. Charging will automatically stop when all batteries are 100% charged. You can also stop charging at any time by pressing the CHARGE button a second time. This is best used when all devices are powered down and returned to the cart at the same time.

  • Page 5: Advanced Settings

    Advanced Settings Automatic Manage Mode For environments where the system is consistently being used in manage mode, it can be conveniently configured to automatically start manage mode every time it is plugged in. In manage mode, the system continuously monitors and distributes power until it is manually stopped. Devices can be connected or disconnected at any point in the process without having to restart the charging cycle.

  • Page 6: Installation Specifications

    Installation procedures for the Intelligent Charging System vary depending on the environment it is being used in. For help or ideas for installation, contact JAR Systems directly. To utilize the included mounting bracket it is recommended to use four #6 (.1380) self-drilling, tapping, type CSD, cross-recessed pan head screws.

  • Page 7: Wiring Setup

    Installation (For Stand-Alone Charging System Only) Wiring Setup Capacity The Intelligent Charging System accommodates up to four power strips with up to 16 outlets on each (E) as well as one auxiliary power strip for peripheral devices. The charging outlets on the back of the unit are labeled 1–4 corresponding to the numbered LED indicators on the front of the unit.
  • Page 8 Warranty This product comes with a five-year warranty that This warranty does not cover, and JAR Systems, covers any defects in material or workmanship LLC will not be responsible for, any damages and extends to the original consumer of the due to loss of use of the product, or any product only.
