Intelligent Charging System
User Manual | PB-80C24

Advertisement

Table of Contents
loading

Related Manuals for JAR Systems PB-80C24

Summary of Contents for JAR Systems PB-80C24

  • Page 1 Intelligent Charging System User Manual | PB-80C24...

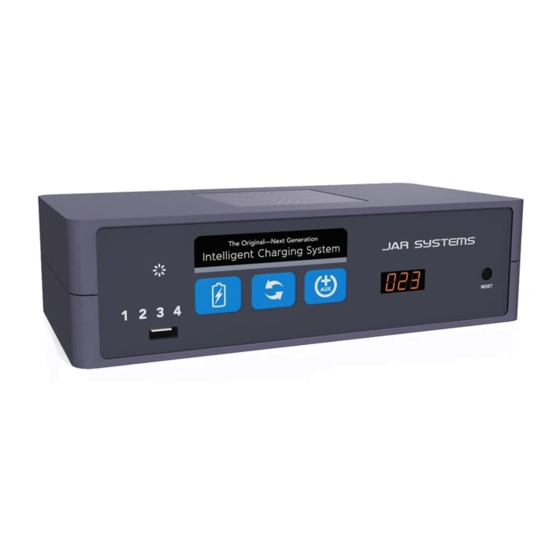

  • Page 2 Display Tour Front Power Icon Charge Button AUX Button Charging Port LEDs USB Port Manage Button LED Display Reset Button Back Power Connector Auxiliary Outlet Charging Ports Included...
  • Page 3 Quick Start Guide To Begin Charging: • Connect to Power • Select Charging Mode... CHARGE MODE MANAGE MODE Best used if all devices are powered Best used if all or some devices are off and connected at the same time. left on or are returned at different Power is discontinued when batteries times.

  • Page 4: Basic Functions

    Basic Functions Charge Button Pressing the CHARGE button will start charge mode. This is best used when all devices are powered down and returned to the cart at the same time. Charging will automatically stop when all batteries are 100% charged. You can also stop charging at any time by pressing the CHARGE button a second time.
  • Page 5 Setting an Automatic Start Up Mode Automatic Manage Mode The Intelligent Charging System can be set to automatically start up in manage mode when the system is plugged in. In manage mode the devices will be charged automatically as they are connected to the charging system without having to press the charge button.

  • Page 6: Installation Specifications

    Installation procedures for the Intelligent Charging System vary depending on the environment it is being used in. For help or ideas for installation, contact JAR Systems directly. To utilize the included mounting bracket you will need four #6 (.1380) pan head self-drilling tapping screws type CSD, cross-recess.

  • Page 7: Wiring Setup

    Wiring Setup Capacity The Intelligent Charging System accommodates up to four power strips with up to 16 outlets on each (E) as well as one auxiliary power strip for peripheral devices. The charging outlets on the back of the unit are labeled 1–4 corresponding to the numbered LED indicators on the front of the unit.

  • Page 8: Warranty

    Warranty This product comes with a five-year warranty that This warranty does not cover, and JAR Systems, covers any defects in material or workmanship LLC will not be responsible for, any damages and extends to the original consumer of the due to loss of use of the product, or any product only.
