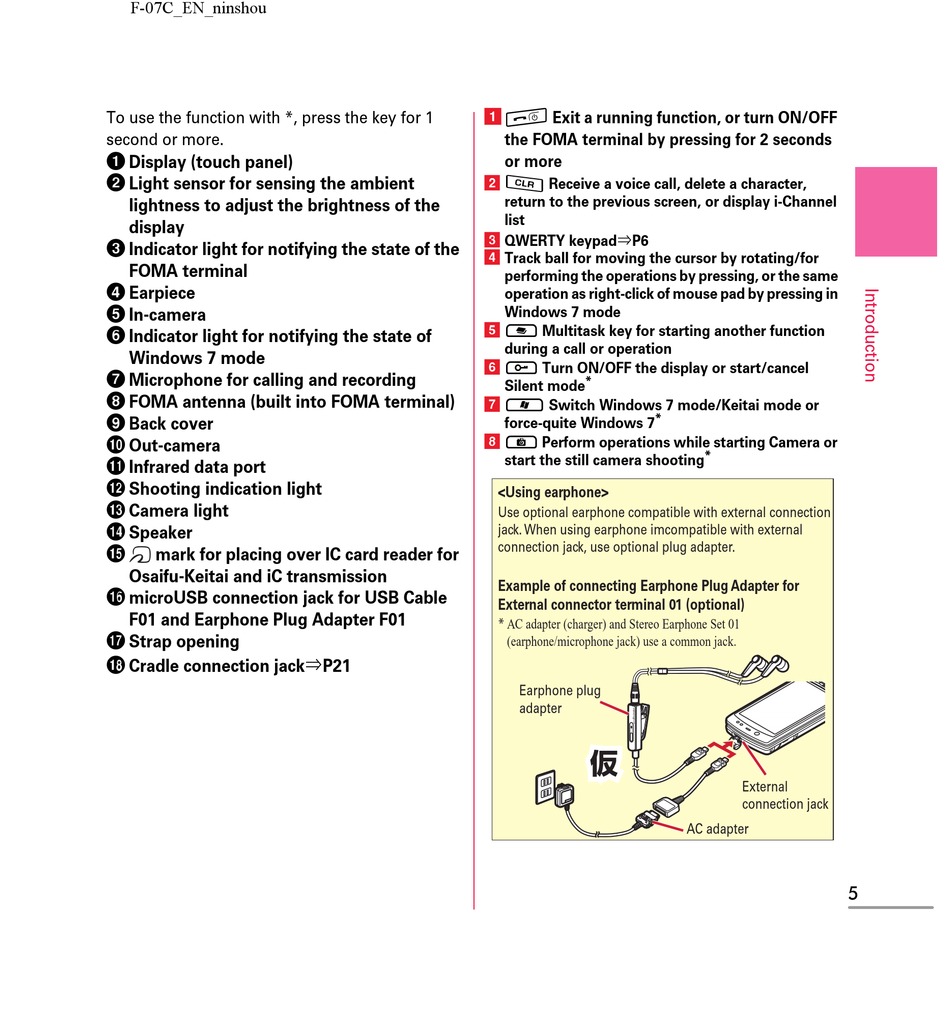

F-07C_EN_ninshou
To use the function with *, press the key for 1
second or more.
a Display (touch panel)
b Light sensor for sensing the ambient
lightness to adjust the brightness of the
display
c Indicator light for notifying the state of the
FOMA terminal
d Earpiece
e In-camera
f Indicator light for notifying the state of
Windows 7 mode
g Microphone for calling and recording
h FOMA antenna (built into FOMA terminal)
i Back cover
j Out-camera
k Infrared data port
l Shooting indication light
m Camera light
n Speaker
o
mark for placing over IC card reader for
Osaifu-Keitai and iC transmission
p microUSB connection jack for USB Cable
F01 and Earphone Plug Adapter F01
q Strap opening
r Cradle connection jack⇒P21
a
f Exit a running function, or turn ON/OFF
the FOMA terminal by pressing for 2 seconds
or more
b
c Receive a voice call, delete a character,
return to the previous screen, or display i-Channel
list
c
QWERTY keypad⇒P6
d
Track ball for moving the cursor by rotating/for
performing the operations by pressing, or the same
operation as right-click of mouse pad by pressing in
Windows 7 mode
N Multitask key for starting another function
e
during a call or operation
f
z Turn ON/OFF the display or start/cancel
*
Silent mode
g
w Switch Windows 7 mode/Keitai mode or
*
force-quite Windows 7
h
C Perform operations while starting Camera or
start the still camera shooting
<Using earphone>
Use optional earphone compatible with external connection
jack. When using earphone imcompatible with external
connection jack, use optional plug adapter.
Example of connecting Earphone Plug Adapter for
External connector terminal 01 (optional)
* AC adapter (charger) and Stereo Earphone Set 01
(earphone/microphone jack) use a common jack.
Earphone plug
adapter
仮 仮
*
External
connection jack
AC adapter
5
