Summary of Contents for Teledex E103-DCX

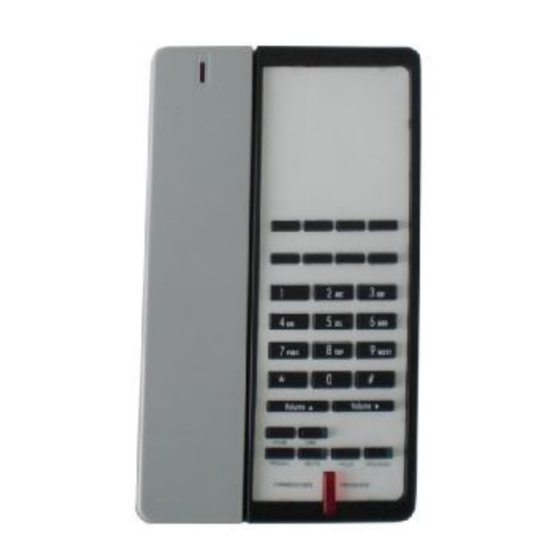

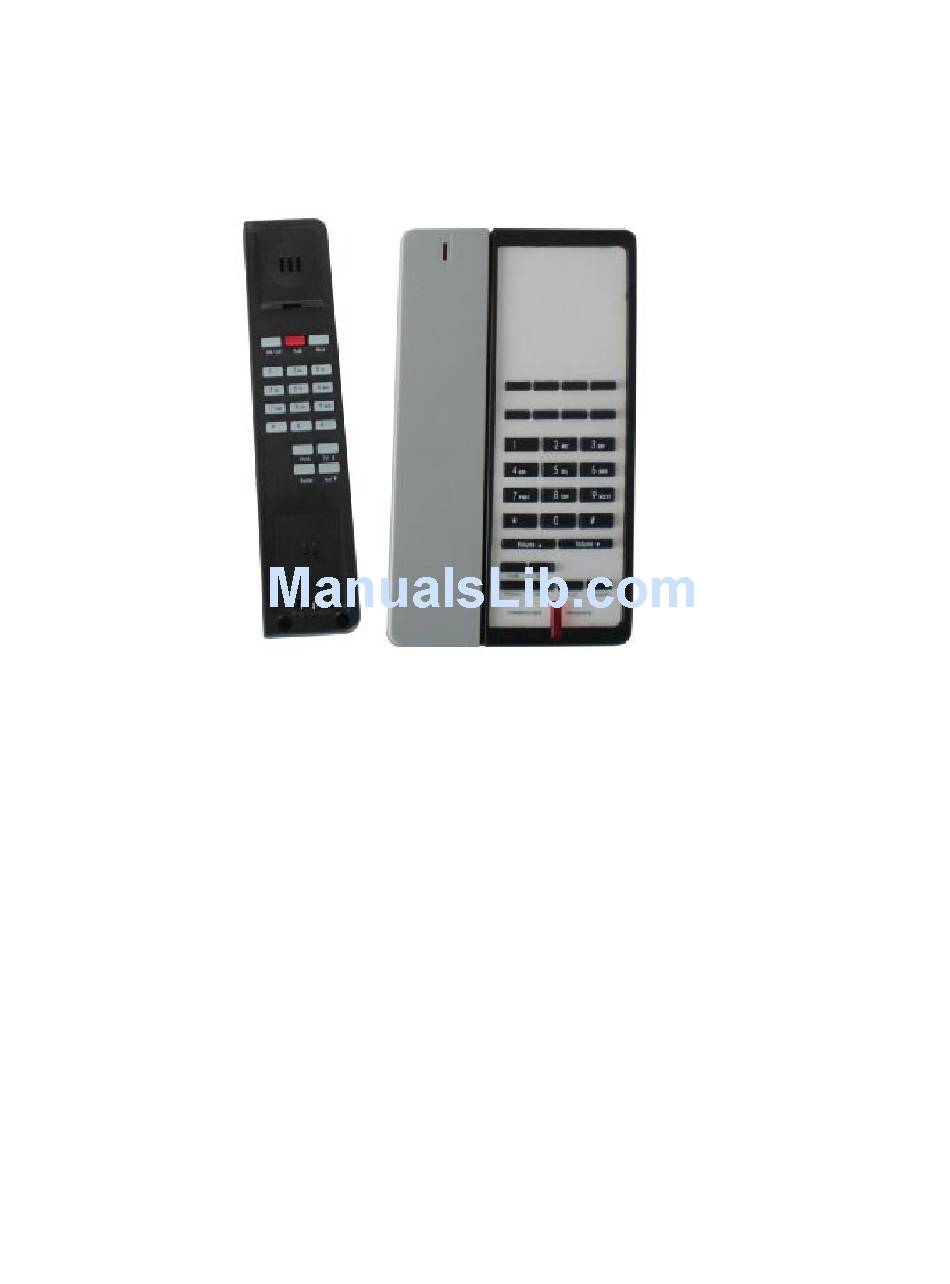

- Page 1 E103-DCX_Digital cordless phone user manual...
-
Page 2: Table Of Contents
1 Parts list：............................3 2 Feature ............................3 3 Operation Guide (with commercial power) ...................3 3.1 Volume control........................3 3.2 pickup and hang-up ......................4 3.3 hold .............................4 3.4 Mute............................4 3.5 Redial...........................4 3.6 Message ..........................4 3.7 Page.............................4 3.7.1 Call the handset .......................4 3.7.2 Register handset ......................5 3.7.3 Delete handset ......................5 3.8 Switches between base and handset ..................5 3.9 Switches between handsets....................5... -
Page 3: Parts List
1 Parts list： Each box contains the following component: cords: 1-RJ45 and 1-RJ11 (2) Line B. Battery for handset C. Base unit D. Mobile handset Paper faceplate Protective plastic faceplate overlay G. Power adapter The following are optional Items possibly included: （must be ordered separately）... -
Page 4: Pickup And Hang-Up
is the volume decrease; there are 5-step volume levels; when tuned to the maximum or minimum sound level would have a warning beep. 3.2 pickup and hang-up Base unit：on-hook status, press line or speaker key to pick up with speaker; again，after the talking, press line or speaker key again to hung-up. -
Page 5: Register Handset
3.7.2 Register handset Manual register: press down “Page” key for 3 seconds, the line indicator begin quickly flashing, the base unit enter into the register mode, and then press “*” key in the handset until the phone give an “toot” prompt tone, release the “*” key, the handset enter into the register mode, when the base and the handset matches successfully, and then the phone will give a beep prompt sound. -
Page 6: Program Key
4 Program key 4.1 Flash The base unit is pick up, press “store” key, hear of “toot” sound, the message indicator begins flashing at the same time, and the phone enter into configuration mode, after pressing any numeric key (0 represents flash time is 1000ms, 1 represents 100ms… 9 represents 900ms), press “store”... -
Page 7: Connect Power Line Cord
l Never install telephone or Ethernet jacks in wet locations unless the jack is specially designed for wet locations. l Never touch uninstalled telephone wires or terminals unless the telephone line has been disconnected at the network interface. l Use caution when installing or modifying telephone and network lines. l Be sure your power adaptor meets your regions requirements prior to installation. - Page 8 Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 9 service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. 4.
- Page 10 This product meets the applicable Industry Canada technical specifications. / Le présent matériel est conforme aux specifications techniques applicables d’Industrie Canada. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
