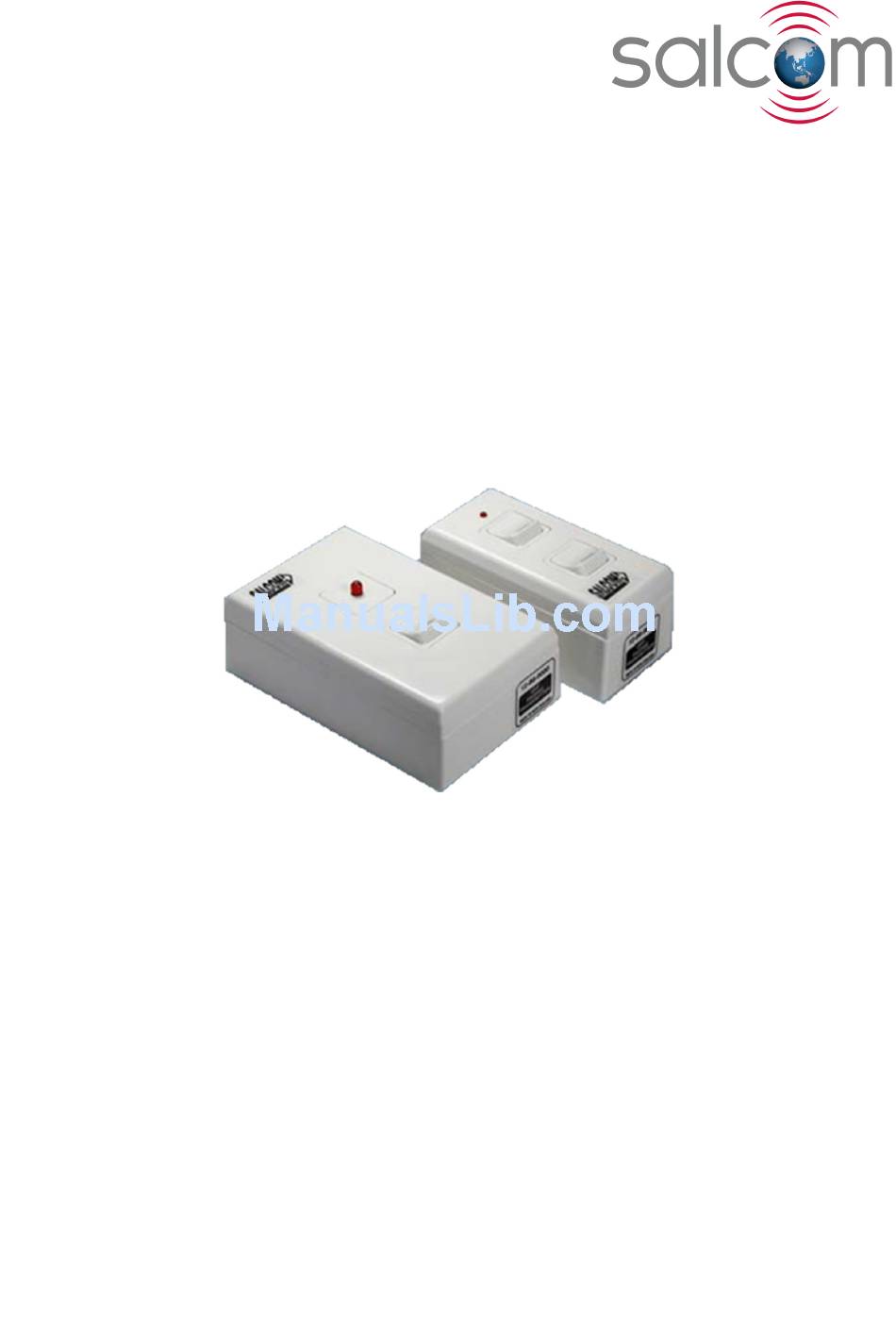

- Page 1 12-86-9000 Callpoint Transmitter PRODUCT MANUAL Version 1.00 April 2017 Copyright © 2017 Sea Air and Land Communications Ltd. All rights reserved.
- Page 2 P a g e Salcom Product Documentation This document is designed to familiarise you with Salcom products and guide you through the hardware, configuration, installation and overall system management. Salcom is an environmentally conscious company and in an effort to conserve paper no longer prints manuals with shipped products.
-
Page 3: Warranty And Disclaimer
P a g e Warranty and Disclaimer Salcom products are warranted for a period of 12 months from the date of purchase against faulty materials and workmanship. Should any fault occur the unit should be returned to the vendor, freight pre-paid. Please include a description of the fault to assist with prompt return. -
Page 4: Product Overview
By default the 12-86-9000 is supplied with a mounting block, but can be flush mounted in the same manner as most electrical switch plates if required. The 12-86-9000 is available in 2 sizes, and is also available in black. By default, the 12-86-9000 is supplied in white as the smaller variant. -
Page 5: Operation
POCSAG message being transmitted. The red transmit LED can also be used as an indication of battery health, and should the LED be dim or fail to light, the CR2032 button cell should be replaced. 12-86-9000 CALLPOINT TRANSMITTER Product Manual Sea Air and land Communications Ltd, 10 Vanadium Place, Addington, Christchurch 8024, New Zealand... - Page 6 In order to program the12-86-5000, programming software should be downloaded from the Salcom website (www.salcom.co.nz). A Salcom 12-47 programming lead is required to program the 12-86 transmitters (the same lead used to program the 11-85 transmitters). This may be purchased separately. The 12-47 programming lead requires the availability of a PC with a serial port, running windows XP.
-
Page 7: General Configuration
Pager beep priority set - 1 highest, 4 lowest. RIC Code: Pager ID. Valid codes are 0000008 to 2000000 12-86-9000 CALLPOINT TRANSMITTER Product Manual Sea Air and land Communications Ltd, 10 Vanadium Place, Addington, Christchurch 8024, New Zealand April 2017... -
Page 8: Battery Replacement
After battery replacement, test that the 12-86 is functional by sending a test message and verifying the red LED lights. If the unit fails to operate, remove battery, confirm correct battery orientation and reinsert. 12-86-9000 CALLPOINT TRANSMITTER Product Manual Sea Air and land Communications Ltd, 10 Vanadium Place, Addington, Christchurch 8024, New Zealand... -
Page 9: Technical Specification
Requires protection from weather, is not waterproof. Type Approvals Australia / NZ - NZS/AS4769 European - ETS 300 224 (EC) USA - FCC Pt 90.203 12-86-9000 CALLPOINT TRANSMITTER Product Manual Sea Air and land Communications Ltd, 10 Vanadium Place, Addington, Christchurch 8024, New Zealand April 2017... -
Page 10: How To Contact Us
P a g e How to Contact Us Sea Air and Land Communications (Salcom) Ltd 10 Vanadium Place Addington Christchurch 8024 New Zealand +64 (0)3 379 2298 W: www.salcom.com support@salcom.com 12-86-9000 CALLPOINT TRANSMITTER Product Manual Sea Air and land Communications Ltd, 10 Vanadium Place, Addington, Christchurch 8024, New Zealand...
