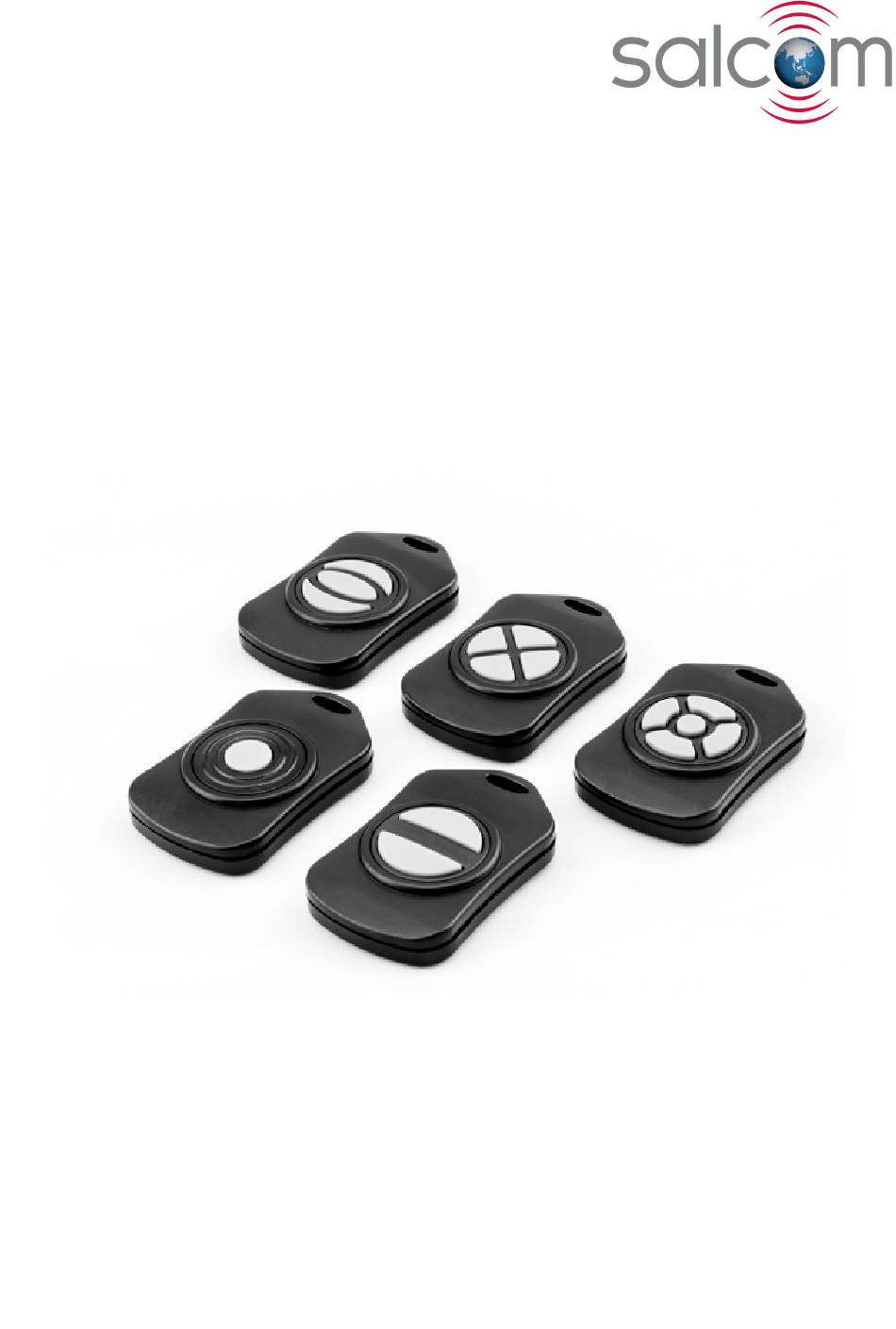

- Page 1 12-86-0000 UHF Key Ring Transmitter PRODUCT MANUAL Version 1.03 February 2019 Copyright © 2017 Sea Air and Land Communications Ltd. All rights reserved.
- Page 2 P a g e Salcom Product Documentation This document is designed to familiarise you with Salcom products and guide you through the hardware, configuration, installation and overall system management. Salcom is an environmentally conscious company and in an effort to conserve paper no longer prints manuals with shipped products.
-
Page 3: Warranty And Disclaimer
P a g e Warranty and Disclaimer Salcom products are warranted for a period of 12 months from the date of purchase against faulty materials and workmanship. Should any fault occur the unit should be returned to the vendor, freight pre-paid. Please include a description of the fault to assist with prompt return. -
Page 4: Product Overview
Programming can be either with a serial programming cable that can be purchased separately or preprogrammed when supplied. Once operating frequency has been set the 12-86-0000 messages can be changed using programming software with an optional programming lead, or without programming leads using a PC with LCD monitor. Programming software when used with an LCD monitor can be used to transmit data as a low rate flashing sequence detected by a light sensor within the transmitter. -
Page 5: Operation
LED can also be used as an indication of battery health, and should the LED be dim or fail to light, the CR2032 button cell should be replaced. 12-86-0000 KEYRING TRANSMITTER Product Manual Sea Air and Land Communications Ltd, 10 Vanadium Place, Addington, Christchurch 8024, New Zealand... - Page 6 P a g e Programming In order to program the 12-86-0000 programming software should be downloaded from the Salcom website (www.salcom.co.nz). A Salcom 12-47 programming lead is required to program the 12-86 transmitters (same lead used to program the 11-85 transmitters), together with a 4-pin header.
- Page 7 Beep Level: Pager beep priority set - 1 highest, 4 lowest. CapCode Code: Pager ID. Valid codes are 0000008 to 2000000 12-86-0000 KEYRING TRANSMITTER Product Manual Sea Air and Land Communications Ltd, 10 Vanadium Place, Addington, Christchurch 8024, New Zealand...
-
Page 8: Battery Replacement
After battery replacement, test that the 12-86 is functional by sending a test message. If the unit fails to operate, remove battery, confirm correct battery orientation and reinsert. 12-86-0000 KEYRING TRANSMITTER Product Manual Sea Air and Land Communications Ltd, 10 Vanadium Place, Addington, Christchurch 8024, New Zealand... -
Page 9: Technical Specification
P a g e Technical Specification Technical Specification 12-86-0000 – UHF Key Ring Transmitter Frequency Range 440-470MHz - UHF Frequency Selection User configurable Power Supply 3V CR2032 button cell Battery Life Approx. 1000 transmissions Approx. 10 years standby Power Consumption... -
Page 10: How To Contact Us
P a g e How to Contact Us Sea Air and Land Communications (Salcom) Ltd 10 Vanadium Place Addington Christchurch 8024 New Zealand +64 (0)3 379 2298 W: www.salcom.com support@salcom.com sales@salcom.com 12-86-0000 KEYRING TRANSMITTER Product Manual Sea Air and Land Communications Ltd, 10 Vanadium Place, Addington, Christchurch 8024, New Zealand...
