4.0 Operation and Setup

The C-100 SmartBob control console is controlled and operated through the use of a 6-button icon-based
keypad and a simple intuitive text-based menu system. The menu system is user-selectable in either the
English or Spanish languages.

4.1 Keypad

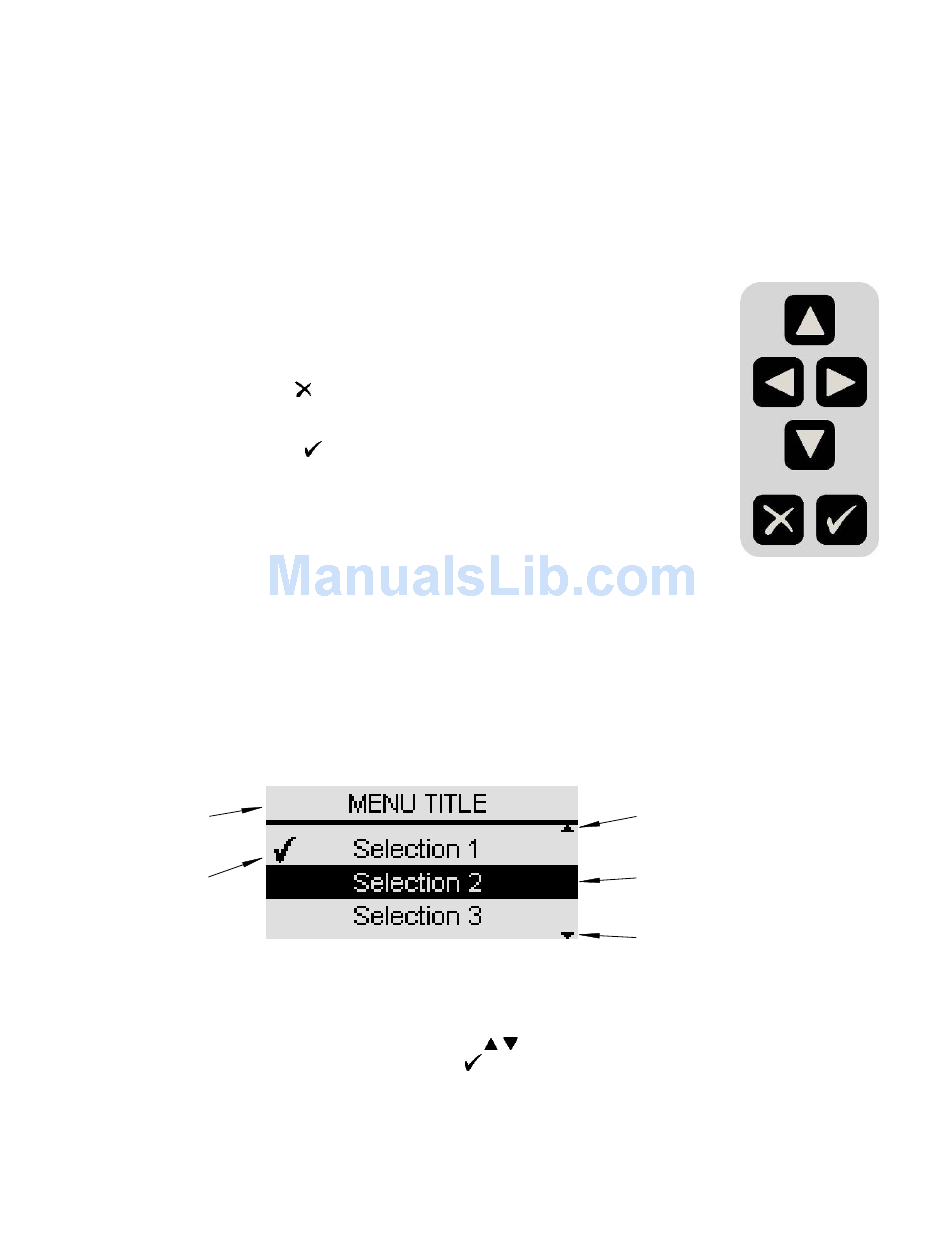

The keypad consists of 6 membrane style keys appearing as shown to the right.
Four of them are labeled with left, right, up and down arrow keys and are used for
navigating menu selection bars and character cursors.
Another key is labeled with a
to stop an action or to exit a screen without taking action.
The final key is labeled with a
the current selection and/or to advance to the next screen.
Most operations will simply require a single press and release of a key; however
some operations may benefit from a key being held. For instance, holding the up or
down arrow keys will allow the user to continuously scroll through long lists of vessel
measurements. In some menus, the left and right arrow keys serve as a page up and page down key for
faster navigation through long lists. Also, in some menus with long lists, you can press the left and up
arrow keys simultaneously for a jump to the top of the list and pressing the right and down arrow keys
simultaneously for a jump to the bottom of the list.

4.2 Menu System

Each menu and/or screen maintains a common format for ease of understanding and use. The example
screen below shows a few of the common items found on most screens.
Menu/Title Bar
Setting Indicator
The Menu/Title Bar will always be present at the top and identify the current menu or screen to the user.
Below that will be up to three lines of text or selection items, depending on the current menu or screen.
The Selection Bar is repositioned vertically with the
menu. Normally a selection isn't accepted until the
The Setting Indicator, displayed as a check mark towards the left of the screen, is used in various places
under the Setup Menu to indicate current or active settings.
925-0270 Rev G
(cross out) for cancel or escape and is generally used
(check mark) for Ok and is generally used to accept
key is pressed.
16
Scroll Up Indicator
Selection Bar
Scroll Down Indicator
/ keys and is used for making a selection in a
