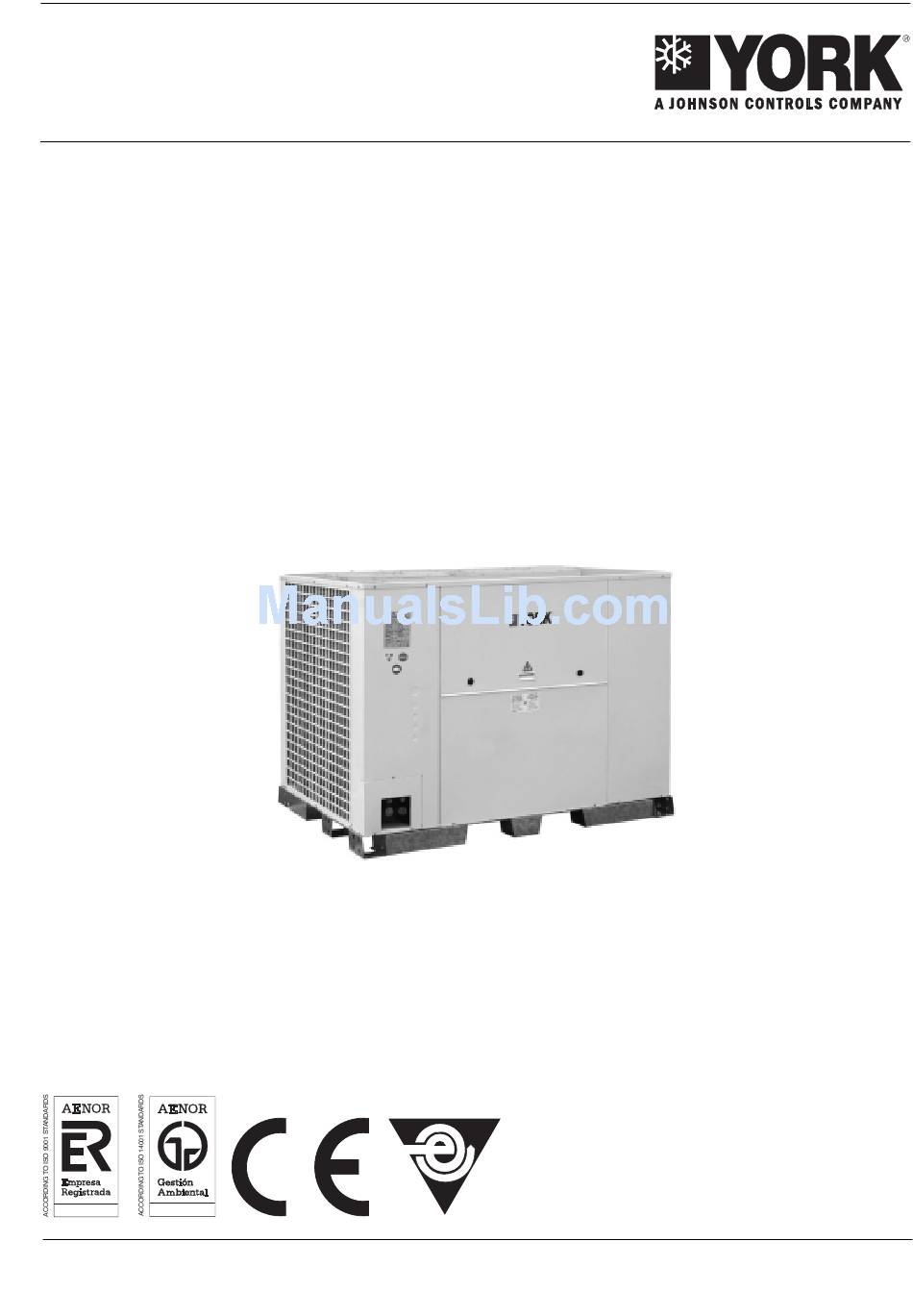

Split Air-Air Heat Pumps
SOH-076 to 300K/
SICH-070B to 180B and 240C, SIH-300B

Technical Information

ER-0028/1991
CGM-97/013
E U R O V E N T
CERTIFIED PERFORMANCE
Clima Roca York S.L. is participating in the EUROVENT Certification Program.
Products are as listed in the EUROVENT Directory of Certified Products,
in the program
AC 1, AC2, AC3, LCP and FC .
Ref: Y-R70132 0706
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOH-076 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for York SOH-076

Summary of Contents for York SOH-076

  • Page 1: Technical Information

    Ref: Y-R70132 0706 Technical Information E U R O V E N T CERTIFIED PERFORMANCE Clima Roca York S.L. is participating in the EUROVENT Certification Program. Products are as listed in the EUROVENT Directory of Certified Products, ER-0028/1991 CGM-97/013 AC 1, AC2, AC3, LCP and FC .

  • Page 2: Table Of Contents

    Index Page Page General information Accessories - General description - Standard accessories - Nomenclature - Hot water coil for SICH-070B-076B, 090B-120B and 150B Technical specifications Internal electri heaters for SICH-070B to 180B - Mechanical specifications - Technical specifications - Ambient thermostat DPC-1 - Assembly and general dimensions 31 - 32 - Physical data...

  • Page 3: General Information

    Axial with free air discharge, without ducts. The unit is The SOH-076 to 300K units are compatible with indoor units equipped with a speed selector in summer cycle that is regu- SICH-070B to 180B and 240C, SIH-300B.

  • Page 4: Physical Data

    Thermostat The SOH-076 to 300K units include, as standard equipment, the electromechanical DPC-1 thermostat. To connect the thermostat to the board, 10x0.22mm screened communication cable should be used. Ambient thermostat DPC-1 AUTO AUTO PROG °C Programmable digital thermostat with communication...

  • Page 5: Limits Of Use

    Indoor units SICH-070B- SICH-090B- SICH-180B SICH-240C SIH-300B SICH-150B Model 076B 120B Motor power rating 0.75 Power supply V.ph.Hz 400.3.50 Motor rpm 1 400 Number of turbines Turbine Ø Turbine width Amount Tubing depth x height 4 x 21 4 x 25 4 x 25 4 x 29 5 x 32...

  • Page 6: General Dimensions

    General dimensions mm SOH-076 and 090K WITH PACKING = +18 1000 WITH PACKING = +100 WITH PACKING = +100 ELECTRICAL 1245 CONNEXIONS 1284 "A" "B" DIAMETER 14: 4 POINTS OF SUPPORT CENTRE OF GRAVITY (A) gas tubing (B) Liquid tubing Weight kgs.
  • Page 7 General dimensions mm SOH-120, 150 und 180K WITH PACKING = +18 1000 WITH PACKING = +100 WITH PACKING = +100 1245 1632 ELECTRICAL CONNEXIONS 1284 1644 DIAMETER 14: "A" "B" 4 POINTS OF SUPPORT CENTRE OF GRAVITY 1522 1644 (A) Gas tubing (B) Liquid tubing Weight kgs.
  • Page 8 General dimensions mm SOH-240K 1000 WITH PACKING = +100 WITH PACKING = +100 WITH PACKING = +18 1983 1635 ELECTRICAL CONNEXIONS 2019 1629 "B" "A" DIAMETER 14: 4 POINTS OF SUPPORT CENTRE OF GRAVITY 1525 1629 Weight kgs. per (A) gas tubing (B) liquid tubing Unit diameter...
  • Page 9 General dimensions mm SOH-300K WITH PACKING = +100 WITH PACKING = +100 1000 WITH PACKING = +18 2 426 2 000 CONEXIONES ELÉCTRICAS 2 454 1 976 "B" "A" DIAMETER 14: 4 POINTS OF SUPPORT CENTRE OF GRAVITY 1856 1976 (A) gas (B) liquid Weight kgs.
  • Page 10 General dimensions mm SICH-070B and 076B DRAIN, INT. R. 3/4" G. Ø 21 LIQUID CONNECTION 1/2" GAS CONNECTION 1 " ELECTRICAL CONNECTIONS SICH-090B and 120B DRAIN, INT. R. 3/4" G. Ø 21 LIQUID CONNECTION 5/8" GAS CONNECTION " ELECTRICAL CONNECTIONS...

  • Page 11: General Dimensions

    General dimensions mm SICH-150B DRAIN, INT. R. 3/4"G LIQUID CONNECTION (2) 1/2" Ø 21 GAS CONNECTION (2) 1 " ELECTRICAL CONNECTION Ø 38 SICH-180B ELECTRICAL CONNECTION Ø 38 (2) LIQUID CONNECTION 5/8" (2) GAS CONNECTION 1 / " DRAIN, INT. R. 3/4" G. (ON OPPOSITE SIDE) SICH-240C &...
  • Page 12 Process for transforming a horizontal dis- as indicated in the standard orientation figure. charge into a vertical discharge 5- Unscrew the fastener of the fan to its support ref. 5. (SICH-070B, 076B, 6- Place panel ref. 3 in the previous prosition of panel ref. 4, 090B, 120B, 150B units) and place panel ref.

  • Page 13: Variant Chart

    Variant chart SOH-076K SICH-070/076B 400.3.50 400.3.50 SOH-090K 400.3.50 SICH-090/120B 400.3.50 SOH-120K 400.3.50 SICH-150B SOH-150K 400.3.50 400.3.50 SICH-180B SOH-180K 400.3.50 400.3.50 SICH-240C SOH-240K 400.3.50 400.3.50 SIH-300B SOH-300K 400.3.50 400.3.50...

  • Page 14: Correcting Factors

    Nominal characteristics Summer Winter Outdoor unit Indoor unit Cooling Heating Consumption W Consumption W capacity W capacity W SOH-076K SICH-070B/076B 22 000 8 300 23 000 6 300 SOH-090K SICH-090B/120B 29 000 11 000 30 000 8 640 SOH-120K SICH-090B/120B 33 400 13 800 34 000...
  • Page 15 Sensible cooling capacities Sensible capacity (W/h) Compressor Total Humid air Dry outdoor absorbed Dry air intake temperature to the coil °C (DB) capacity intake power Model temperature temperature °C (WB) °C (DB) 34 800 10 350 15 243 22 581 27 480 8.26 19.5...

  • Page 16: Sensible Cooling Capacities

    Sensible cooling capacities Sensible capacity (W/h) Compressor Dry outdoor Humid air absorbed Total Dry air intake temperature to the coil °C (DB) intake power Model capacity temperature temperature °C (WB) °C (DB) 64 800 19 662 27 333 38 841 46 524 12.60 19.5...

  • Page 17: Test Conditions

    Test conditions Winter Summer Length of Voltage interconnecting Outdoor temp. °C Indoor temp. °C Outdoor temp °C Indoor temp. °C tubing 7.5 meters Nominal flows The cooling and heating capacities of the corresponding For other flows, apply the correcting factors from the corre- tables are valid for the following nominal flows.

  • Page 18: Indoor Fan Features

    Indoor fan features Model Static pressure available Air flow Absorbed power mm WG 9 200 2.55 1 375 17.9 175.4 7 000 1.94 17.1 167.6 7 500 2.08 16.0 156.8 8 000 2.22 1 045 14.8 137.2 8 500 2.36 1 100 SICH-150B 13.3...

  • Page 19: Electrical Characteristics

    Electrical characteristics Outdoor units Power supply V.ph.Hz. Consumption A Power supply Automatic cable section switch Model Compressor (K curve)(1) Compressor Start Nominal Start Nominal SOH-076K 400.3.50 230.1.50 11.7 SOH-090K 400.3.50 230.1.50 17.1 SOH-120K 400.3.50 230.1.50 21.1 2 x 6 2 x 2.2 SOH-150K 400.3.50 230.1.50...

  • Page 20: Wiring Diagram

    Wiring diagram, SOH-076 and 090K, 400.3.50 SONDA EXTERIOR OUTDOOR PROBE AMARILLO YELLOW SONDA DESCARGA DISCHARGE PROBE BLANCO WHITE SONDA LIQUIDO LIQUID PROBE VALVULA DE 4 VIAS VERDE GREEN 4 WAY VALVE SONDA ASPIRACION SUCTION PROBE NEGRO BLACK PROTECCION COMPRESOR PROTECTION COMPRESSOR...
  • Page 21 Wiring diagram, SOH-120K, 400.3.50 SONDA EXTERIOR OUTDOOR PROBE AMARILLO YELLOW SONDA DESCARGA DISCHARGE PROBE BLANCO WHITE SONDA LIQUIDO LIQUID PROBE VERDE VALVULA DE 4 VIAS GREEN 4 WAY VALVE SONDA ASPIRACION SUCTION PROBE NEGRO BLACK PROTECCION COMPRESOR PROTECTION COMPRESSOR PRESOSTATO DE ALTA Y BAJA HIGH AND LOW PRESSURE SWITCHES...
  • Page 22 Wiring diagram, SOH-150 and 180K, 400.3.50 (1/2) MODULO COMPRESOR 2 COMPRESSOR MODULE 2 MODULO COMPRESOR 1 COMPRESSOR MODULE 1...
  • Page 23 Wiring diagram, SOH-150 and 180K, 400.3.50 (2/2) VALVULA DE 4 VIAS 2 4 WAY VALVE 2 SONDA DESCARGA DISCHARGE PROBE BLANCO WHITE SONDA LIQUIDO LIQUID PROBE VERDE GREEN SONDA ASPIRACION SUCTION PROBE NEGRO BLACK PROTECCION COMPRESOR 2 PROTECTION COMPRESSOR 2 PRESOSTATO DE ALTA Y BAJA 2 HIGH AND LOW...
  • Page 24 Wiring diagram, SOH-240K, 400.3.50 (1/2) MODULO COMPRESOR 2 COMPRESSOR MODULE 2 MODULO COMPRESOR 1 COMPRESSOR MODULE 1...
  • Page 25 Wiring diagram, SOH-240K, 400.3.50 (2/2) VALVULA DE 4 VIAS 2 4 WAY VALVE 2 SONDA DESCARGA DISCHARGE PROBE BLANCO WHITE SONDA LIQUIDO LIQUID PROBE VERDE GREEN SONDA ASPIRACION SUCTION PROBE NEGRO BLACK PROTECCION COMPRESOR 2 PROTECTION COMPRESSOR 2 PRESOSTATO DE ALTA Y BAJA 2 HIGH AND LOW PRESSURE SWITCHES 2...
  • Page 26 Wiring diagram, SOH-300K, 400.3.50 MODULO COMPRESOR 2 COMPRESSOR MODULE 2 MODULO COMPRESOR 1 COMPRESSOR MODULE 1...

  • Page 27: Wiring Diagram

    Wiring diagram, SOH-300K, 400.3.50 VALVULA DE 4 VIAS 2 4 WAY VALVE 2 SONDA DESCARGA DISCHARGE PROBE BLANCO WHITE SONDA LIQUIDO LIQUID PROBE VERDE GREEN SONDA ASPIRACION SUCTION PROBE NEGRO BLACK PROTECCION COMPRESOR 2 PROTECTION COMPRESSOR 2 PRESOSTATO DE ALTA Y BAJA 2 HIGH AND LOW PRESSURE SWITCHES 2 SONDA EXTERIOR...

  • Page 28: Configuration Of Switches, Failures (Lock-Outs) And Incidents

    Configuration of switches, failures (lock-outs) and incidents...

  • Page 29: Standard Accessories

    Accessories Standard accessories Model SICH Accessory 070-076 090-120 SICH-070B-076B Internal electric heater for 10 kW SICH-070B-076B Internal electric heater for 15 kW SICH-090B-120B Internal electric heater for 10 kW SICH-090B-120B Internal electric heater for 20 kW SICH-150B Internal electric heater for 15 kW SICH-150B Internal electric heater for...

  • Page 30: Hot Water Coil For Sich-070B-076B 090B-120B And 150B

    Hot water coil for SICH-070B, 076B, 090B, 120B Heating capacity and 150B Heating Nominal Air circuit Made of copper tubes and aluminium fins. capacity flow-rate pressure drop Designed to be fitted inside the conditioner, on galvanised For model steel supports. Equipped with an 1/8"...

  • Page 31: Technical Specifications

    Internal electric heaters for SICH-076B on steatite supports. - Power supply contactor with a 400 V coil. to 180B - Two thermal protectors located at the top of the heater. The These internal electric heaters are designed to provide backup first, with automatic reset, disconnects the heater when a or complementary heat for the SICH units.

  • Page 32: Assembly And General Dimensions

    Assembly and general dimensions mm SICH-070B to 180B, SICH-090B to 180B, 1 STAGE 2 STAGES Board A3, Board A4, heater accessory heater-2 accessory (control cable Board A3, (control cable heater-1 connection) connection) KM21 KM22 KM12 Heater power Heater power supply supply cable cable connecting strip connection...

  • Page 33: Installation

    Installation sufficient air flow. 10) Connect power supply to the SICH or SCOH/SICH unit Install the electric heater in the SICH unit as follows: and to the heater. In all cases, the established national regulations 11) o configure the accessory, press the test button of con- should be followed.

  • Page 34: Wiring Diagram

    Wiring diagram Heater 10, 15kW, 400.3.50 SICH-076B to 180B POWER AUTOMATIC MINIMUM SECTION SUPPLY SWITCH CABLES mm ² 400 V, 50 Hz, 3 ~, L1 L2 L3 TO J10 OF A1 30 m A L1 L2 L3 Section mm Cu F 14 L1 L2 L3 X1 A1.- CONTROL BOARD...

  • Page 35: Wiring Diagram

    Wiring diagram Heater 20, 30kW, 400.3.50 SICH-090B to 180B POWER AUTOMATIC AUTOMATIC MINIMUM SWITCH SUPPLY SECTION SWITCH CABLES mm ² TO J10 OF A1 400 V, 50 Hz, 3 ~, L1 L2 L3 30 m A L1 L2 L3 F 14 F 15 Section mm Cu 138 °C...

  • Page 36: Duct Electric Heaters For Sich-070B To 180B And 240C, Sih-300B

    Duct electric heaters for SICH-070B to - Power supply contactor with a 400 V coil. - Two thermal switches located at the top of the heater. The 180B and 240C, SIH-300B first, with automatic reset, disconnects the heater when a These duct electric heaters are designed to provide backup temperature of 77°C is reached.

  • Page 37: General Characteristics

    General characteristics Automatic Power supply Front Pressure Power supply Power Consumption Stages switch (1) cable section surface drop (3) Heater model V.ph.Hz SICH-070B and 076B 400.3.50 0,19 SICH-070B and 076B 400.3.50 0.19 SICH-090B to 180B 400.3.50 0.19 and 240C, SIH-300B SICH-090B to 180B 400.3.50 0.19...
  • Page 38 Location of the heater SICH-070B and 076B RETURN AIR INTAKE AIR FILTER COOLING CONNECTIONS FASTENING TO TOP MANUAL THERMAL SWITCH F9 INDOOR AIR OUTLET MANUAL THERMAL SWITCH F9 AUTOMATIC THERMAL SWITCH F10 CONNECTING BOX FASTENING HEATER...
  • Page 39 Location of the heater SICH-090 to 180B and 240C, SIH-300B RETURN AIR INTAKE AIR FILTER COOLING CONNECTIONS COOLING CONNECTIONS (DEPENDING UPON MODEL) (DEPENDING UPON MODEL) MANUAL THERMAL SWITCH F9 MANUAL THERMAL SWITCH F11 FASTENING TO TOP INDOOR AIR INDOOR AIR OUTLET OUTLET AUTOMATIC THERMAL SWITCH F10...

  • Page 40: Wiring Diagram

    Wiring diagram Heater 10, 15kW, 400.3.50 SICH-070B and 076B AUTOMATIC MINIMUM POWER SWITCH CABLE SECTION mm ² 400 V, 50 Hz, 3 ~, L1 L2 L3 TO J10 OF A1 30 m A L1 L2 L3 Section mm Cu F 14 L1 L2 L3 X1 A1.- CONTROL BOARD 138 °C...

  • Page 41: Wiring Diagram

    Wiring diagram Heater 20, 30kW, 400.3.50 SICH-090B to 180B and 240C, SIH-300B AUTOMATIC AUTOMATIC MINIMUM POWER SWITCH CABLE SWITCH SECTION mm ² TO J10 OF A1 400 V, 50 Hz, 3 ~, L1 L2 L3 30 m A L1 L2 L3 F 14 F 15 Section mm Cu...

  • Page 42: Vertical Air Discharge Conversion Kit For Sich-180B To 240C And Sih-300B

    Vertical air discharge conversion kit for: SICH- sion kit. 2- Once the fans are assembled, fasten the top panel ref. 1 180B to 240C and SIH-300B to the unit. The SICH-180B to 240C and SIH-300B unit require a con- 3- Fasten the left and right side fan angles ref. 3 to the unit. version kit that includes: rear and top panels, belts, motor 4- Substitute motor and fan pulleys, and belts ref.
