- Page 1 Temporary Operation Instruction CPC 2000 For Low-Pressure Controller CPC 2000...
- Page 2 Low- Pressure Controller CPC 2000 Information This symbol provides you with information, notes and tips. Warning! This Symbol warns you against actions that can cause injury to people or damage to the instrument. WIKA Operation Instruction Low Pressure Controller Version 0.1...
-
Page 3: Table Of Contents
Re-calibrating and servicing ..................19 Dismantling of the system ..................20 Transport of the system ....................20 Storage of the system ....................21 Placing out of service ....................21 Specifications ......................22 11.1. Dimensions in mm ....................23 Accessories ......................24 Notes ........................25 Version 0.1 WIKA Operation Instruction Low Pressure Controller... -
Page 4: General
WIKA Alexander Wiegand SE & Co. KG. WIKA is a registered trade mark of WIKA Alexander Wiegand SE & Co. KG. Names of companies or products mentioned in this handbook are registered trade marks of the manufacturer. -
Page 5: Safety Instruction
(e.g. at the sensor socket or serial interface)! 7. Significant electromagnetic radiation can adversely affect the measuring signal of the CPC2000 or even disrupt the display of the signal completely. Version 0.1 WIKA Operation Instruction Low Pressure Controller... -
Page 6: Specific Safety Instructions
Pressurized air or breath is not to be used for performance tests, as this could damage instruments with low measurement ranges. Measurement errors may occur if the instrument is not kept protected from sunlight. Specific safety precautions are given in the individual sections of this manual. WIKA Operation Instruction Low Pressure Controller Version 0.1... -
Page 7: Instrument Description
The supply voltage connector is located on the rear of the instrument. WARNING! Electric shock hazard! Failure to unplug the power supply cord before replacing the fuse may result in fatal injuries! Version 0.1 WIKA Operation Instruction Low Pressure Controller... -

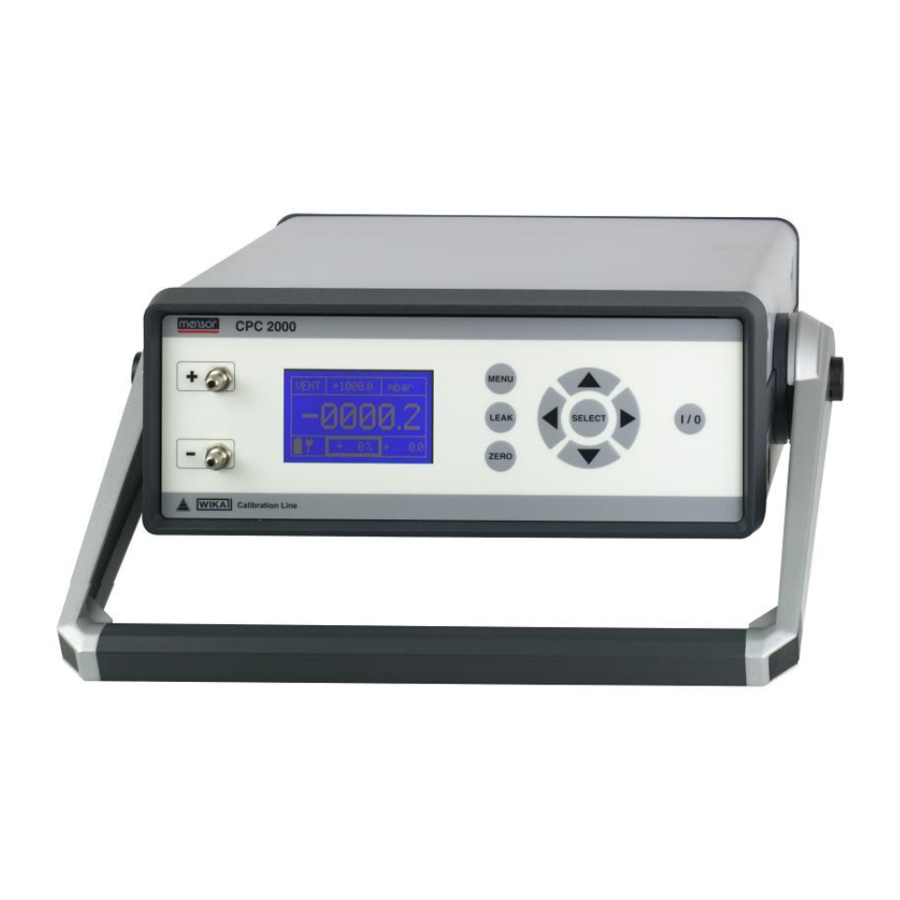

Page 8: Front View Connections And Elements
MEASURE (MEAS): Measuring of differential and gauge pressure o AUTOMATIC (AUTO): drives through a programmed sequence LANGUAGE: Choosing the language SETTINGS: Further settings to the controller can be done in this menu item. WIKA Operation Instruction Low Pressure Controller Version 0.1... -
Page 9: The Menu
RS232 / USB: Choosing the actual interface Display: Brightness adjustment Auto: Setting the pressure range, unit and pressure steps for the automatic mode. Steps Up and Steps Down can be assigned different Version 0.1 WIKA Operation Instruction Low Pressure Controller... -
Page 10: Button Leak
2.11. Overpressure protection It is not allowed to override the permissible overpressure safety: CPC2000-1mbar / CPC2000-10mbar / CPC2000-100mbar have a 5 time overpressure safety; CPC2000- 1000mbar has a 2 time overpressure safety. WIKA Operation Instruction Low Pressure Controller Version 0.1... -
Page 11: Operation And Operation Mode
As soon as the display of the Controller indicates a stable value, the data can be noted: End Value / Span Unit Operation mode Current measuring value Battery status Current set point in unit Set point in % of Span Version 0.1 WIKA Operation Instruction Low Pressure Controller... -
Page 12: Measure (Meas)
Crosses the measured pressure the maximum permissible load (125%) the internal sensor will be blocked by a solenoid valve. Error is indicated in the display. You can unlock and de- allocate the instrument with SELECT key WIKA Operation Instruction Low Pressure Controller Version 0.1... -
Page 13: Automatic (Auto)
After leaving the menu the controller is on hold. All information for the automatic mode are shown at the display. Span Unit Operation mode Current Cycle Current Phase: Phase 1: Venting the system Current pressure value in percent of span Version 0.1 WIKA Operation Instruction Low Pressure Controller... -
Page 14: Leakage (Leak)
As soon as the pressure is stable press the LEAK button. The internal Pump is switched off and the pressure stays in the system Utilization Start value Unit Operation mode Current measuring value Deviation in pressure unit Leakage measuring time Deviation in % WIKA Operation Instruction Low Pressure Controller Version 0.1... -
Page 15: Digital Interface
„SELECT ―, not existing or wrong instructions with „ERROR ―. Command Function / Response :saaz <0 | 1> Auto Zero before each cycle (Phase 4) 0 – Off 1 - On :acy <1…100> Number of cylces 1…100 Version 0.1 WIKA Operation Instruction Low Pressure Controller... - Page 16 Set Baudrate USB 0 --> 1200 1 --> 2400 2 --> 4800 3 --> 9600 4 --> 14400 5 --> 19200 6 --> 28800 7 --> 38400 8 --> 56000 9 --> 57600 WIKA Operation Instruction Low Pressure Controller Version 0.1...
-
Page 17: Drivers
Current interface driver will be available for download on Future Technology Devices International Limited (FTDI) homepage for all established OS (Windows, Linux, Mac Os). Homepage URL: http://www.ftdichip.com Download URL: http://www.ftdichip.com/Drivers/VCP.htm (FTDI Homepage --> Drivers --> VCPDrivers) Version 0.1 WIKA Operation Instruction Low Pressure Controller... -
Page 18: Troubleshooting
Leaks in system, Tubing Secure tubing properly; set pressure; pump runs diameter too large eliminate any leaks continuously Maximum tubing diameter 5 mm Further help can be found through WIKA‗s Test & Calibration Technology Department. WIKA Operation Instruction Low Pressure Controller Version 0.1... -
Page 19: Re-Calibrating And Servicing
Before cleaning the surface of the instrument, it has to be made sure that it is not pressurized, the power is switched off and the power supply is disconnected. Version 0.1 WIKA Operation Instruction Low Pressure Controller... -
Page 20: Dismantling Of The System
Before returning any equipment, please fill out the appropriate Goods-Return Form, found on the WIKA Web site (www.wika.de see: Service / Product return), and a reference number will be issued to you. Then send the instrument with this reference number attached to the delivery address indicated. -
Page 21: Storage Of The System
When placing the system out of service, please dismantle it according to the instructions in the manual under section: 5. „Dismantling of the system―. WIKA provides for appropriate disposal of used calibration instruments. For this purpose, simply return the Low-Pressure Controller CPC2000 to WIKA carriage prepaid. Version 0.1... -
Page 22: Specifications
Humidity (relativ) 30…80 Mass Dimensions 102,6 (H) x 257 (B) x 271 (T) without handle CE- Mark certificate of conformity Incl. 3.1 calibration report according to DIN EN Calibration** 10 204 WIKA Operation Instruction Low Pressure Controller Version 0.1... -
Page 23: Dimensions In Mm
Low- Pressure Controller CPC 2000 11.1. Dimensions in mm Front view Top view Version 0.1 WIKA Operation Instruction Low Pressure Controller... -
Page 24: Accessories
Portable low-pressure controller CPC2000 Power lead 1.5 m with mains plug Operating instructions in English and German language 3.1 calibration report according to DIN EN 10 204 Options DKD calibration certificate RS-232 digital interface cable WIKA Operation Instruction Low Pressure Controller Version 0.1... -
Page 25: Notes
Low- Pressure Controller CPC 2000 13. Notes Version 0.1 WIKA Operation Instruction Low Pressure Controller...
