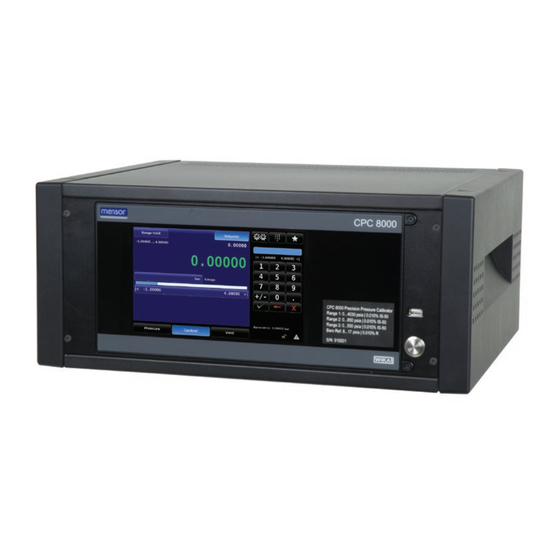

WIKA CPC8000 Operating Instructions Manual

High-end pressure controller
Hide thumbs Also See for CPC8000:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Instructions
High-End Pressure Controller
CPC8000
High-End Pressure Controller CPC8000
PN 0018508001AH • 01/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPC8000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WIKA CPC8000

Summary of Contents for WIKA CPC8000

  • Page 1 Operating Instructions High-End Pressure Controller CPC8000 High-End Pressure Controller CPC8000 PN 0018508001AH • 01/2017...
  • Page 2 This Caution symbol indicates danger for the system and material if the respective safety precautions are not taken. This Notice symbol does not indicate safety notices but information for a better understanding of the facts Operating Instructions - CPC8000...

  • Page 3: Table Of Contents

    5.4 Turning on the CPC8000 ........
  • Page 4 6.2.14.3 Vent Mode ............47 6.2.14.4 State of the Isolation Valves when the CPC8000 is off ......48 7.
  • Page 5 8.3 SCPI WIKA Command Set ........

  • Page 6: General Information

    . Use shielded cables to connect external devices to this instrument to minimize RF radiation. Operating Instructions - CPC8000...

  • Page 7: Trademarks And Copyrights (C)

    . If there are questions regarding this manual, proper use of the equipment, or if you have problems using your CPC8000 and you don’t find the answer in this manual, contact either Mensor or WIKA for personal assistance. We are ready to help.

  • Page 8: Calibration Services

    If the instrument will be subjected to frequent transport then the optional Transport Case shown in Section 9, Options, might be an economical solution. This wheeled case is very rugged and provides complete and long term protection against rough handling . Operating Instructions - CPC8000...

  • Page 9: Safety Notices

    Even after disconnecting the system from the power supply, dangerous voltages can temporarily occur due to capacitance. Repairs must be performed only by authorized service personnel. Additional safety notices are found throughout this manual . Operating Instructions - CPC8000...

  • Page 10: Warnings And Caution Notices

    (printed circuit boards) to prevent static discharge damage to sensitive electronic components. Additional Warning and Caution notes are included throughout this manual. Operating Instructions - CPC8000...

  • Page 11: Product Description

    • 0.008% IS-33 (IntelliScale-33) transducer option • Complies with latest CE and 61010 regulations The CPC8000 is designed to automate the testing and calibration of all types of pressure devices and instruments. Up to three removable / interchangeable pressure transducers are available in full scale (FS) ranges from 0.36 to 6,000 psig, 7.5 to 6015 psia.

  • Page 12: Front Panel

    CPC8000 3.2 Front Panel The front of the CPC8000 has a smooth, uncluttered appearance (see figure 3.2). Its main feature is the large color display plus an identification label in the lower right corner of the display panel. The display panel is hinged for easy access to remove or replace the transducer modules inside.

  • Page 13: Screen Navigation

    The smaller area (Data Entry) on the right side, has the number key pad, variable sliders or discrete choice buttons (radio buttons) that all act to input alpha numeric information or mode changes relating to the test or calibration information being shown on the left . Operating Instructions - CPC8000...

  • Page 14: Main Features

    Multiple languages; simply touch one of the national flags on the display to instantly change the on-screen text language, and the corresponding number and date formats. For more detailed informa- tion see Section 7.1.1, Language . Operating Instructions - CPC8000...

  • Page 15: Specifications

    National Institute of Standards and Technology NIST). A calibration data report has been provided with your new CPC8000 instrument, traceable to NIST. The calibration program at Mensor is accredited to both ISO/IEC 17025:2005 and Z540-1-1994 by A2LA. Mensor, LP is registered to ISO 9001:2008.

  • Page 16: Control Specifications

    Clean, dry, non-corrosive, non-combustible, non oxidizing gases . No oxygen . Metals in contact with media 6000 series Aluminum, 316 SS, Brass Non-metals in contact Teflon, Urethane, Silicone, RTV, Silicone grease, PVC, Epoxy, Ceramics with media Operating Instructions - CPC8000...
  • Page 17 WARNING! This is class A equipment for emissions and is intended for use in industrial environments. In other environments, e.g. residential or commercial installations, it can interfere with other equipment under certain conditions. In such circumstances the operator is expected to take the appropriate measures. Operating Instructions - CPC8000...

  • Page 18: Transducer Removal/Replacement

    10:1 of the primary transducer . In other words, the lowest full scale range in the CPC8000 cannot be less than one tenth of the range of the primary transducer full scale range (see Section 4.6, Transducer...

  • Page 19: Regulator Ranges

    CPC8000 4.5 Regulator Ranges The CPC8000 is supplied with one of five different needle valve regulators (NVR) modules. Table 4.5 shows each regulator and its corresponding pressure range limits: LP (low pressure), MP (medium pressure), SP (standard pressure), HP (high pressure) and EP (extended pressure).

  • Page 20: Transducer Choices

    CPC8000 4.6 Transducer Choices Transducer measuring modes can be gauge, absolute, or bi-directional. The CPC8000 will be equipped with one, two or three transducers of the same mode. Transducer type will be “Standard” (accuracy of 0.01% FS, or 0.01% IS-50) or “Premium” (accuracy of 0.008% IS-33, or 0.008% IS-50). The transducers must be all “Standard”...

  • Page 21: Transducer Type / Range / Mode / Accuracy

    CPC8000 4.6.1 Transducer Type / Range / Mode / Accuracy Each transducer within the CPC8000 or additional transducers will conform to the limits shown in the fol- lowing table . Table 4.6.1 - Transducer Type / Range / Mode / Accuracy...

  • Page 22: Intelliscale

    See figure 4.7.1b. Total Uncertainty Total Uncertainty 0.008% of 33% 0.01% of 50% of FS pressure of FS pressure %FS Pressure %FS Pressure Figure 4.7.1a - IntelliScale IS-50 Figure 4.7.1b - IntelliScale IS-33 Operating Instructions - CPC8000...

  • Page 23: Installation

    Vacuum: minimum 50 liters per minute (if required) 5.1 Initial Installation The initial installation of the CPC8000 includes the following steps: Unpack the system, place it in a suitable work place, connect it, switch it on and configure. A Quick Start Guide has been placed inside the shipping box containing your instrument. This guide provides a quick reference to the pneumatic and electrical connections and an introduction to the opera- tor interface .

  • Page 24: Dimensions

    16.9 ack mount 16.9 front view side view Adaptor Fitting: 1/4 in. Tube OD x 7/16-20 Male SAE/MS Straight Thread -or- 6 mm Tube OD x 7/16-20 Male SAE/MS Straight Thread rear view Operating Instructions - CPC8000...

  • Page 25: Turning On The Cpc8000

    High-End Pressure Controller CPC8000 5.4 Turning on the CPC8000 After the pressure connections are secure in accordance with Section 5.5 below, apply power to the power connector on the rear of the instrument and switch the power switch ON. The instrument will go through an initialization process and system check .
  • Page 26 . In the Measure mode a pressure applied to the Measure/Control port is measured by the instrument transducer . ■ Barometric Reference The Barometric Reference port is connected to the internal barometric transducer and should be left open to atmospheric pressure . Operating Instructions - CPC8000...

  • Page 27: Pneumatic Connections And Pressure Fittings

    5.6 Pneumatic Connections and Pressure Fittings The CPC8000 is supplied with five 1/4 in. tube OD x 7/16-20 male SAE/MS straight thread adaptors or five 6 mm tube OD x 7/16-20 male SAE/MS straight thread adaptors (per order). The 7/16-20 male SAE/ MS straight thread end of the adaptors should be connected to the instrument’s 7/16-20 female SAE/MS...

  • Page 28: Electrical & Communication Connections

    OUTPUT5-COM NRFD OUTPUT1-COM OUTPUT5-NC NDAC OUTPUT1-NC OUTPUT5-NO OUTPUT1-NO OUTPUT6-COM Note: OUTPUT2-COM OUTPUT6-NC No Null Modem OUTPUT2-NC OUTPUT6-NO SHIELD Required OUTPUT2-NO OUTPUT7-COM OUTPUT3-COM OUTPUT7-NC OUTPUT3-NC OUTPUT7-NO OUTPUT3-NO OUTPUT8-COM OUTPUT4-COM OUTPUT8-NC OUTPUT4-NC OUTPUT8-NO Figure 5.7 - Electrical Connections Operating Instructions - CPC8000...

  • Page 29: Notices Regarding The Electrical Connections

    5.7.1.4 USB Host Interface The USB Host interface is a service port used to upgrade software and download information from the device. It has the same function as the USB Host port on the front of the CPC8000. 5.7.1.5 USB Device Interface The USB Device jack is a standard USB Type B receptacle interface used for remote communication.

  • Page 30: Local Operation

    6.1 will appear. This is the main operating screen. At this point the CPC8000 is ready for operation . However, for critical tests and measurements allow the unit to warm up for at least 15 minutes with power on to ensure rated accuracy .

  • Page 31: Buttons, Keys, Switches, Tabs, And Other Terms

    6.1.2 Map of the Main Screen Features Figure 6.1.2 is a map of the main screen features and reflects a CPC8000 without any of the extra display options. The map includes a title box for each screen feature and the section number of the explanatory text about the feature and its use .

  • Page 32: Main Screen Features

    The presently active range is highlighted. Touch either one of the listed ranges, or [Autorange] and that choice is immediately effective. If the CPC8000 is under pressure, only those transducers with ranges equal to or above the internal pressure are allowed to be chosen .

  • Page 33: Pressure Reading

    To edit the setpoint value, first touch the [Setpoint] button. This will activate the system for setpoint changes. The sidebar will display the default number key pad or a pre-chosen setpoint entry method. To change the setpoint value use one of these methods described in Section 6.2.6 . Operating Instructions - CPC8000...

  • Page 34: Setup

    Returns the number key pad to the main screen (see 6.2.6.1) . Sets the setpoint step value (see 6.2.6.2) . Sets the selected setpoint digit (see 6.2.6.3) . Activates a program and program control (see 6.2.6.4) . Figure 6.2.6 - Setpoint Entry Methods Operating Instructions - CPC8000...

  • Page 35: Number Key Pad

    ] or the Step Down [ key. If the Enter [ ] key is pressed the newly entered value will register as a new setpoint value on the main screen rather than a step value . Operating Instructions - CPC8000...

  • Page 36: Digital Step

    If the resolution of the instrument were set to 4 then the right most digit in the Digital Step screen would correspond to the least significant digit of the setpoint and the left two digits in the Digital Step screen would not be used . Operating Instructions - CPC8000...

  • Page 37: Program Data Entry

    CPC8000 6.2.6.4 Program Data Entry The Program Data entry method provides an automated way to interact with the CPC8000. Many setting or process that can be entered manually can be programmed into the unit and saved and used in the Program portion of the data entry screen.

  • Page 38: Favorites

    / [Troubleshoot] screen where errors can be viewed. See Section 7.5.2.5.9, Trouble- shoot for more information. The error register will clear itself when it is viewed, however, this does not correct the error. A corrective action still must be specifically addressed. Operating Instructions - CPC8000...

  • Page 39: Secondary And Tertiary Display

    Section 7.1.2, Secondary and Tertiary Display . Secondary Display Tertiary Display Figure 6.2.9a - Secondary and Tertiary Displays Figure 6.2.9b - Screen of Display Choices Operating Instructions - CPC8000...

  • Page 40: Limits

    The bar graph is always active and reports in real time the pressure at the Measure/Control port. This provides a visual comparison between the actual pressure and the user selected control limits . Bar Graph Figure 6.2.11 - Bar Graph Operating Instructions - CPC8000...

  • Page 41: Pressure Units

    CPC8000 6.2.12 Pressure Units The pressure units that the CPC8000 is currently using are displayed very near the center of the main screen, just above the bar graph. To change pressure units, touch the current unit symbol to display a page of the units menu in the sidebar.

  • Page 42: Operating Modes

    CPC8000 6.2.14 Operating Modes The CPC8000 has three operating modes: Measure, Control, and Vent. After the system has been switched on, and after a subsequent short self-test, the instrument will automatically be placed in Mea- sure mode. The operator can switch from one mode to another by using the mode selection keys located just below the front panel display.

  • Page 43: Measure Mode

    Measure mode . The setpoint value can be input while in the Measure mode then Control mode can be activated by press- ing the [Control] key and the CPC8000 will start to control to the setpoint value. Operating Instructions - CPC8000...
  • Page 44 1) In Autorange Mode when the system pressure is outside of the connected transducer range. NC = Normally Closed 2) In Range Hold mode when another transducer is selected. Otherwise it is open. 6.2.14.1b - Isolation Valves in Measure Mode Operating Instructions - CPC8000...

  • Page 45: Control Mode

    The Control mode is activated by pressing the [Control] button in the main menu. The Control mode can be accessed from the Measure mode or the Vent Mode by pressing the [Control] button. In the Control mode the CPC8000 acts as a precision pressure controller and provides a stable pressure output at the Measure/Control port .
  • Page 46 NO = Normally Open outside of the connected transducer range. NC = Normally Closed 2) In Range Hold mode when another transducer is selected. Otherwise it is open. Figure 6.2.14.2b - Isolation Valves in Control Mode Operating Instructions - CPC8000...

  • Page 47: Vent Mode

    Personnel and sensitive equipment should not be in close proximity to the vent port during venting. WARNING! In some cases venting high pressure will cause a loud sound. Personnel should wear a hearing protection device when working with high pressures. Operating Instructions - CPC8000...

  • Page 48: State Of The Isolation Valves When The Cpc8000 Is Off

    Figure 6.2.14.3b - Illustration Showing Isolation Valves in Vent Mode 6.2.14.4 State of the Isolation Valves when the CPC8000 is off When the CPC8000 is turned off the valves revert to their normal state: either Normally Open (NO) or Normally Closed (NC) as indicated above .

  • Page 49: Setup

    Netmask multiplier ■ Tune ■ Gateway ■ Admin ■ Port ■ Software ■ DHCP Serial ■ Baud ■ Data Bits ■ Stop Bits ■ Parity ■ Echo Figure 7b - Menu Tree of the Setup Menus Operating Instructions - CPC8000...

  • Page 50: General Tab

    7.1 General Tab 7.1.1 Language The languages that are available in the CPC8000 are shown by pressing Setup [ ], then press the [General] tab, and then the [Language] button. Note that the active language is indicated on the right side of the [Language] button.

  • Page 51: Brightness

    “bar graph” will appear in the sidebar. This shows the relative volumes available and can be changed by sliding ones finger up and down on the bar graph or simply touching an area on the graph that corresponds to the desired volume level . Figure 7.1.4 - Volume Operating Instructions - CPC8000...

  • Page 52: Barometer (Units)

    When the [Load] button is chosen a choice of several configura- tions are displayed on the sidebar. When one configuration is chosen its saved parameters and settings will be active in the instrument . Operating Instructions - CPC8000...

  • Page 53: Save (Configuration)

    5 psi per second. These parameters can be set and assigned (saved) in one of the configuration numbers and recalled (loaded) before this test is run . Operating Instructions - CPC8000...

  • Page 54: Sensor Tab

    The filter can be set to Off, Low, Normal or High simply by pressing the associated button on the right site of the menu . Figure 7.2.1 - Filter Operating Instructions - CPC8000...

  • Page 55: Resolution (Display Digits)

    This same selection of units can be accessed directly from the Main screen by pressing the button displaying the current units . Figure 7.2.3 - Units Operating Instructions - CPC8000...

  • Page 56: Rate Units

    0.703069 as the multiplier. The new user unit associated with this base unit and multi- plier would now be displayed when that User Unit is chosen in the main menu or on the Setup [ [Sensor] / [Units] screen. Figure 7.2.5 - User Units and User Units Multiplier Operating Instructions - CPC8000...

  • Page 57: Control Tab

    These limits can only be set within the range of the active transducer. When the CPC8000 is in Autorange the limits can only be set within the range of the primary transducer which, by convention, will have the widest range.

  • Page 58: Stable Limits

    ] menu. Both of these are used to define a stable condition for pressure control or measurement (see figure 7.3.2a). When the controller enters a stable condition the font color for the pressure indica- tion will change from white to green. For example, an operator would like the CPC8000 to show a stable ±...

  • Page 59: Rate Setpoint

    ] / [Control] menu. The rate setpoint sets the rate of pressure change when the CPC8000 is controlling up or down to a setpoint. The rate is limited to 0.001% of the full scale range/second to 10% of the full scale range/second.
  • Page 60 The vent limit can be set within the values shown for the limits above the keypad. Figure 7.3.5 - Vent Limit Operating Instructions - CPC8000...

  • Page 61: Remote Tab

    CPC8000. When the [Command Set] button is chosen any of the listed command sets seen in the side bar can be selected. This will immediately change the active command set enabling the instrument to respond to commands in that set.

  • Page 62: Ieee-488 Address

    . If a DHCP server fails to respond, DHCP will automatically turn off. Turning DHCP off allows the ethernet parameters to be edited and a static IP address assigned . Figure 7.4.3 - Ethernet Settings Operating Instructions - CPC8000...

  • Page 63: Serial Settings

    . Figure 7.4.4 - Serial Settings 7.4.5 USB Device Setting The USB Device jack is a standard USB Type B receptacle interface used for remote communication. The USB Driver can be downloaded at http://www.mensor.com/download_software_drivers_en_um.WIKA Operating Instructions - CPC8000...

  • Page 64: Applications Tab

    Both passwords can be changed and saved in the [Admin] page within the [Setup] [ ] / [Applications] section. If the passwords are forgotten, contact Mensor or your local Mensor service center for instructions to access the protected areas and to reset the passwords. Operating Instructions - CPC8000...

  • Page 65: Calibration Of Internal Transducers

    This section is included for those who wish to calibrate their CPC8000 within their own calibration lab. Because calibration involves special training and calibration components that are not addressed here, only personnel qualified in calibration procedures should be allowed to calibrate the CPC8000.

  • Page 66: Calibration Environment

    CPC8000 7.5.2.1 Calibration Environment For maximum accuracy, allow the CPC8000 to warm up for a minimum of 30 minutes in an ambient temperature within the compensated range prior to commencing a calibration . In addition the instrument should be at rest on a stable platform that is free of excessive vibration and shock .
  • Page 67 Setup for Gauge or Differential Pressure PRESSURE SUPPLY LINE REGULATOR Computer (optional) METERING VENT VALVE SHUT-OFF VALVE VOLUME CONTROLLER RS232, IEEE488, Ethernet, or USB PRESSURE MEASURE/CONTROL PORT PRESS CPC8000 REFERENCE PORT PRESSURE STANDARD REFERENCE ATMOSPHERE Figure 7.5.2.4 - Calibration Setup Operating Instructions - CPC8000...

  • Page 68: Calibration Adjustment Procedure

    7.5.2.5 Calibration Adjustment Procedure There are three methods that can be used to calibrate all of the transducers in the CPC8000. A simple [1-Point Calibration] can be used to adjust a single point (usually the zero point). A [2-Point Calibration] extends this capability to adjust two points (usually points close to the Zero and Span).

  • Page 69: 1-Point Calibration

    With an absolute transducer, the instrument should be put in [Measure] mode with an appropriate high accuracy reference standard connected to the Measure/Control port on the back of the CPC8000 . If a sub-atmospheric zero point is required, a vacuum pump can be connected to the Measure/Control port to bring the pressure down to a value closer to absolute zero .

  • Page 70: 2-Point Calibration

    After the value has been accepted by pressing the [check] mark on the numeric key pad the value will appear with a green background where the [New Value] button was. These actions complete the low point calibration . Operating Instructions - CPC8000...

  • Page 71: Linearize

    The [Linearize] application (see figure 7.5.2.5.3a) provides a place to record [As Found] calibration data and to linearize each internal transducer in the CPC8000 using that data . An “as found calibration” can be performed by connecting a suitable pressure standard to the Measure/Control port, placing the instru- ment in [Measure] mode and supplying all 11 pressure points across the complete range of the trans- ducer being calibrated.
  • Page 72 . In the Live Cal, the reference standard is connected to the Measure/Control port and the CPC8000 is placed in Measure mode . Choose the transducer to be tested by pressing the [Primary], [Secondary], [Tertiary], or [Barometer] button. The reference pressure generated by the standard is recorded in the “Reference”...

  • Page 73: Head Correction (Password Protected)

    (elevation) compared to the transducer inside of the CPC8000. Touching any of the active buttons in this screen will activate the number key pad. Each of the four rows in figure 7.5.2.5.4 represent a different parameter in the head correction calculation.

  • Page 74: Programs

    ] / [Applications] / [Programs] screen is used to create, view and edit programs that are used to automatically run a sequence of commands within the CPC8000. There are two tabs at the bottom of the Program screen shown in figure 7.5.2.5.6a. The Display tab provides a place to view each program or add a new one .
  • Page 75 Starts the sequence from the beginning (None) SETPOINT Sets the control setpoint for the instrument (Numerical Entry) SETPOINT% Sets the control setpoint in % of current range (Numerical Entry) WAIT Waits for a manual input or stable condition (Stable or Input) Operating Instructions - CPC8000...

  • Page 76: Favorites

    “Vent”. Each input can be assigned to one of the choices listed on the right by pressing the input then the choice. [ Keylock ] will lock out the touch screen interface preventing local operation and [Start] will start the most recent program selected in Favorites [ ] menu . Operating Instructions - CPC8000...
  • Page 77 In figure 7.5.2.5.8b Output 1 (one) is assigned to the [Vent] mode of the instrument. Output 1 will be energized when the CPC8000 is in Vent mode. Each output can be assigned to one of the choices listed on the right by pressing the output and then the choice . Each output switch will be energized when the assigned instrument mode is active.

  • Page 78: Troubleshoot

    ] / {Applications] / [Troubleshoot] screen provides a list of internal or remote errors that may have occurred. Figure 7.5.2.5.9 below gives an indication that the CPC8000 access door has been opened. Once the errors have been viewed in this screen, they are cleared. The [Remote tab shows communication send/receive messages that have been made through one of the remote communication ports and is helpful in de-bugging remote control software programs .
  • Page 79 . CAUTION: If an emergency vent of the system is required for any reason, press the power button and turn off the instrument. Caution [Restore Factory]: Loads all of the factory settings back into the instrument. Operating Instructions - CPC8000...

  • Page 80: Tune

    [Linearity Graphs] and [Gain Test] should only be used with close supervision from Mensor Customer Service. Changing parameters within this section will change the regulator response and may cause the CPC8000 to fail to meet control specifica- Caution tions or output pressure that could damage externally connected instruments .
  • Page 81 High-End Pressure Controller CPC8000 Figure 7.5.2.5.11c - Characterize Screen Figure 7.5.2.5.11d - Linearity Graphs Screen Figure 7.5.2.5.11e - Gain Test Screen showing graph for Control Adaptation Operating Instructions - CPC8000...

  • Page 82: Admin

    7.5.2.5.12.1 Change Password Press the [Change Password...Calibrate] button to enter a new password, and then accept by pressing the Check [ ] button. The same procedure applies to the [Change Password ...Service] button. Figure 7.5.2.5.12.1 - Change Password Operating Instructions - CPC8000...

  • Page 83: Software Upgrade

    USB drive. Copy Programs to USB: This button will copy the programs from the CPC8000 programs application to the USB drive and store them in the root directory in a folder named “seq.” Each program will be stored within that folder as a .txt file.

  • Page 84: Info Tab

    ] key and then press the [Info] tab. Information displayed will be the Mensor contact address information, the instrument’s serial number, firmware version, a list of the integrated transducers and other information. Figure 7.6 - Info Tab Operating Instructions - CPC8000...

  • Page 85: Remote Operation

    <CR> and/or a <LF>. A query command ends with a ? for queries. The data column represents the response of the CPC8000. All response strings begin either with a space character or an “E” representing that there is an error in the error queue.
  • Page 86 (0 = complete, 1 = local autozero, 2 = remote autozero), T represents the estimat- ed time to complete in seconds, and x is a (0) character since this data location is not used at this time . Operating Instructions - CPC8000...
  • Page 87 Sets the control rate. Variable mode is a predetermined user-defined rate setpt. Crate? <sp>CCCCCC<cr><lf> Returns the control rate – CCCC is variable in length and corresponds to the param- eters for the CRATE command. Ctype? Returns the type of regulator. Operating Instructions - CPC8000...
  • Page 88 Gets the head pressure gas temperature. Gateway nnn .nnn .nnn .nnn Sets the Ethernet gateway address. Gateway? <sp>nnn .nnn .nnn . Gets the Ethernet gateway address. nnn<cr><lf> Gauge? <sp>YES or NO<cr><lf> Returns if the primary transducer is native gauge Operating Instructions - CPC8000...
  • Page 89 Sets the lower control limit for the instru- ment LowerLimit? <sp>+n.nnnnnE+nn<cr><lf> Returns the lower control limit for the instru- ment in current units . Lowovershoot Does not apply to the CPC8000 Lowovershoot? <sp>YES<cr><lf> Returns YES Measure None Instrument placed in Measure Mode Measure? <sp>(YES or No)<cr><lf>...
  • Page 90 . RangeMin? <sp>+n.nnnnnE+nn<cr><lf> Returns the minimum range of the active transducer in the current units . Rate? <sp>+n.nnnnnE+nn<cr><lf> Returns the rate reading of the instrument in current units/current time unit . See Runits. Operating Instructions - CPC8000...
  • Page 91 RLLimit? <sp>n.nnnnnE+nn<cr><lf> Alias for “RLowerLimit?”. See RLowerLimit? RLowerLimit Set the rate lower control limit RLowerLimit? <sp>n.nnnnnE+nn<cr><lf> Returns the rate lower control limit RULimit Alias for “RUpperLimit”. See RUpperLimit RULimit? <sp>n.nnnnnE+nn<cr><lf> Alias for “RUpperLimit?”. See RUpper- Limit? Operating Instructions - CPC8000...
  • Page 92 > 50% FS and has a 1% limit. CALDISABLE must be OFF/NO. Span? <sp>+n.nnnnnE+nn<cr><lf> Returns span scale factor for active trans- ducer . Sparity Even, ODD, NONE Sets the serial parity. Sparity? <sp>CCCC<cr><lf> Returns the serial parity. Operating Instructions - CPC8000...
  • Page 93 High-End Pressure Controller CPC8000 Srqmask Stable,Error or both Sets the CPC8000 to issue a service request (SRQ) over the IEEE when the pressure control is stable, or an error occurs. These are 80 hex and 40 hex respectively . Srqmask? <sp>{string}<cr><lf>...
  • Page 94 Returns YES if instrument is in Vent, NO if otherwise Vent_Limit Set the pressure where the vent valve will open completely during a controlled vent Vent_Limit? <sp>+n.nnnnnE+nn<cr><lf> Returns the vent limit in current units. Vent_Rate Set the controlled vent rate Operating Instructions - CPC8000...

  • Page 95: Scpi Wika Command Set

    NO . See Section 7.5.2.5.5, Remote Zero Calibration . Zero? <sp>+n.nnnnnE+nn<cr><lf> Returns zero offset for active transducer 8.3 SCPI WIKA Command Set Table 8.3 - SCPI Commands Command or Query Response/Function MEASure [:PRESsure] [R]? Returns the pressure from range R.
  • Page 96 Returns the units conversion for units code <n>. [:PRESsure] bar|mbar|Pa|psi Sets the pressure units. [:PRESsure]? Returns the pressure units. :USER :FACTOR <n>, <f> Sets the multiplier to <f> for user unit <n> :FACTOR ? <n> Returns the multiplier <f> for user unit <n> Operating Instructions - CPC8000...
  • Page 97 SOURCE [:PRESsure] [:LEVel] [:IMMediate] [:AMPLitude] <n> Sets the setpoint. [:AMPLitude]? Returns the setpoint. :SLEW <n> Sets the slew rate setpoint in %FS/sec. :SLEW? Returns the slew rate setpoint. :TOLerance <n> Sets the stable window in %FS. Operating Instructions - CPC8000...
  • Page 98 -3, pressure supply too high or wrong mode -4, default during controller adaption -5, calculation fault -6, abandoned process :TARE :STATe ON/OFF/1/0 Tare the current reading. The same tare value is applied to all measuring transducers . :STATe? Returns the tare value. Operating Instructions - CPC8000...

  • Page 99: Scpi Error Messages And Error Codes

    Regulator error message Default configuration not found Calibration mode active! Deactivate before setting C0..C3 Sensor not available DCS instance not available Create DCS instance failed DCS still active Command currently not allowed General purpose error message Operating Instructions - CPC8000...

  • Page 100: Command Emulation

    Sets command set to PCS 200 _pcs4 list? Returns range list _pcs4 opt? Returns option list (old pcs400 format) _pcs4 option? Returns option list. _pcs4 outform<digit> Sets output format. _pcs4 outform? Returns the current output format. Operating Instructions - CPC8000...
  • Page 101 Returns the number of the currently active transducer. _pcs4 xducerid? Returns the internal transducer number, serial number, min and max transducer range . _pcs4 zero? Returns the stored zero offset of the active transducer and turndown in the current pressure units . Operating Instructions - CPC8000...

  • Page 102: Options

    15 inches by 24 inches by 26 inches (38.10 cm x 60.96 cm x 66.04). Figure 9.1 - Transport Case 9.2 Rack Mount Kit This kit provides the materials and instructions necessary for the user to convert a desk top CPC8000 for installation into a standard 19” rack. 9.3 Barometric Reference Transducer This optional transducer allows gauge mode instruments to operate in absolute mode, and similarly, absolute mode instruments to operate in gauge mode .

  • Page 103: Model 75 Pressure Booster System

    9.4 Model 75 Pressure Booster System To control pressure, the CPC8000 requires a pressure supply of 10% above the full scale of the instru- ment. For ranges of 3000 psi or greater, this is above the typical gas bottle/cylinder. The Model 75 Pressure Booster System provides the ability to boost bottle pressure up to the supply pressure require- ments of all possible CPC8000 range configurations while maximizing gas bottle/cylinder usage.

  • Page 104: Maintenance

    CPC8000 10. Maintenance The CPC8000 was designed for maintenance-free operation. User maintenance is not recommended. If you have questions not covered by this manual, call 1-800-984-4200 (USA only), or 1-512-396-4200 for assistance or send an email to tech .support@mensor .com .
  • Page 105 . If you need help or assistance, contact Mensor at Phone: 1-512-396-4200 or 1-800-984-4200 (USA only) Fax: 512-396-1820 Email: sales@mensor .com tech .support@mensor .com Website: www.mensor.com Operating Instructions - CPC8000...

  • Page 106: Pressure Transducer Location

    The panel can then swing away to reveal the transducers lined up across the interior. If the system has not been powered down, opening the front panel will trip an inter- lock to vent the system to atmosphere. Operating Instructions - CPC8000...
  • Page 107 3mm Allen cap screws accessible inside the lift-recesses. With the cap-screws removed pull the side panel straight out away from the chassis with enough force to overcome the friction pins which hold it in position . Operating Instructions - CPC8000...

  • Page 108: Appendix

    @0 degrees Celcius mHg 0C meters of water @20 degrees Celcius mH2O @20C meters of water @4 degrees Celcius mH2O @4C meters of sea water grams per centimeter squared g/cm kilogram per meters squared kg/m Operating Instructions - CPC8000...

  • Page 109: Conversion Factors, Bar

    Millimeter mercury column 0ºC (Torr) mmHg (0ºC) 1 .333224E-03 7.500615E+02 Centimetres mercury column 4ºC cmHg (4ºC) 1 .333224E-02 7.500615E+01 Inch mercury column 0ºC inHg (0ºC) 3 .386380E-02 2.953006E+01 Inch mercury column 60ºF inHg (60ºF) 3 .376850E-02 2.961340E+01 user user user Operating Instructions - CPC8000...

  • Page 110: Conversion Factors, Psi

    51715 .08 0.00001933672 micronHg @0C 51715 .08 0.00001933672 mmHg @0C 51 .71508 0.01933672 cmHg @0C 5 .171508 0.1933672 mHg 0C mH2O @20C 0 .704336 1.419777 mH2O @4C 0.7030890 1.422295 0 .6838528 1 .462303 g/cm 70.30697 0 .01422334 Operating Instructions - CPC8000...

  • Page 111: Conversion Factors, Millitorr

    10000 .00000 Torr 0 .001 1000 .000000 0 .0001333220 7500.636259 0 .1333220 7.500636259 dyn/sq cm 1 .333220 0 .750063626 g/sq cm 0.001359506 735 .561166 kg/sq cm 0.000001359506 735561 .166 mSW @0C 3.5% salinity 0 .00001322347 75623 .11663 Operating Instructions - CPC8000...
  • Page 112 0.000001392244 718265 .0575 micronHg @0C 1 .0 1 .000000000 tons/sq in 0.00000000966836 103430160 .00 0 .001333220 750.0636259 0 .0000001333220 7500636.259 mmH2O @20C 0.01361955 73 .42388114 cmH2O @20C 0.001361955 734 .2388114 mH2O @20C 0.00001361955 73423 .88114 Operating Instructions - CPC8000...
  • Page 113 High-End Pressure Controller CPC8000 NOTES Operating Instructions - CPC8000...
  • Page 114 Tel. 512-396-4200 Fax 512-396-1820 sales@mensor .com www .@mensor .com High-End Pressure Controller CPC8000 PN 0018508001AH • 01/2017 WIKA Alexander Wiegand SE & Co. KG Alexander-Wiegand-Straße 30 63911 Klingenberg / Germany Tel. +49 9372 132-5015 Fax +49 9372 132-8767 CTSales@wika.de www .wika .de...
