6 | Appliance information
2.7
Regular boiler layout and components
1
21
20
19
18
17
16
15
14

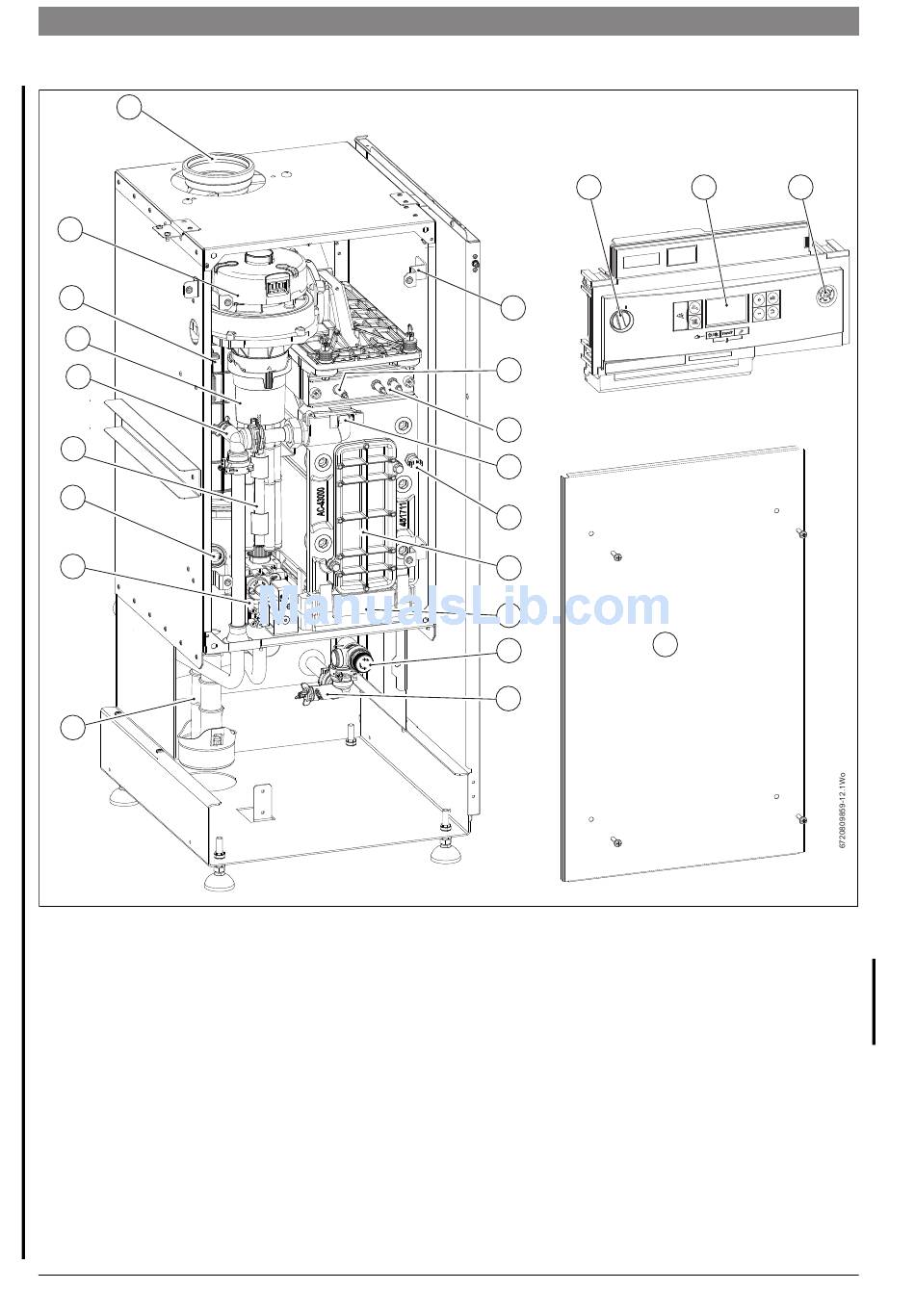

Fig. 3
Component layout KBR
Legend to figure 3:
[1]
Flue connector
[2]
ON/OFF switch
[3]
Display
[4]
Pressure gauge
[5]
Combustion chamber cover mounting bracket x 4
[6]
Flame sense electrode
[7]
Electrode assembly
[8]
Flow temperature sensor
[9]
High limit thermostat
[10] Heat exchanger inspection cover
[11] Condensate pan
[12] Pressure relief valve
[13] Drain cock
[14] Condensate trap
[15] Gas valve
[16] Flue overheat thermostat
[17] Air Intake pipes (30 and 42kW boilers only)
6 720 ... ... (YYYY/MM)
2
5
6
7
8
9
10
11
12
13
[18] Manual vent
[19] Pre-mix chamber
[20] Spark generator
[21] Fan
[22] Combustion chamber cover
3
4
22
