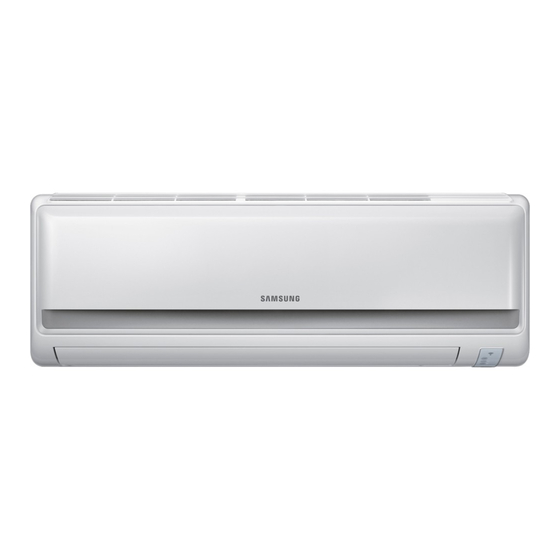

Air conditioner Installation manual ACMNADKH / ACMNTDEH • Thank you for purchasing this Samsung air conditioner. • Before operating this unit, please read this Installation manual carefully and retain it for future reference. -
Page 2: Table Of Contents
Step 2.12 Fixing the indoor unit to the installation plate Step 2.13 Assembling the cover panel Setting an indoor unit address and installation option Troubleshooting For information on Samsung’s environmental commitments and product specific regulatory obligations e.g. REACH visit: samsung.com/uk/aboutsamsung/samsungelectronics/ corporatecitizenship/data_corner.html 2 English... -
Page 3: Installation
• This manual explains how to install an indoor unit the electrical lines. Always disassemble the electric with a split system with two SAMSUNG units. The use lines before the refrigerant tubes. of other types of units with different control systems may damage the units and invalidate the warranty. - Page 4 Safety Information on Installation trucks, scaffolding or any other means of elevation • Install the indoor unit away from lighting apparatus won’t be considered in-warranty and will be charged using the ballast. to end user. - If you use the wireless remote controller, reception error may occur due to the ballast of the lighting apparatus.
-
Page 5: Preparation
Preparation Step 1.1 Choosing the installation Step 1.2 Checking and preparing location accessories and tools Overview of installation location requirements Accessories Accessories in the indoor unit package 100 mm or more ACMNADKH (recommended) 125 mm 125 mm or more or more Installation plate (1) Installation plate (1) (recommended) -
Page 6: Step 1.3 Drilling A Hole Through The Wall
Preparation ACMNTDEH Step 1.3 Drilling a hole through the wall Installation plate (1) Remote control (1) Before fixing the installation plate to a wall and then fixing 100 the indoor unit to the installation plate, a window frame, or a gypsum board, you must determine the position of a hole (with 65 mm inner diameter) through which the pipe bundle (consisting of power and communication cables, refrigerant pipes, and drain hose) will pass and then drill... - Page 7 CAUTION • Discharge all the nitrogen to create a vacuum and charge the system. Pipe bundle hole Step 1.5 Wrapping the pipes with the <Minimum distances between the hole and the installation plate> insulation (Unit : mm) Model After checking for gas leaks in the system, insulate the pipe, hose and cables.
-
Page 8: Indoor Unit Installation
Indoor Unit Installation Please scan this QR code for detail video of indoor unit installation. (This QR code only for ACMNADKH) Step 2.1 Disassembling the cover panel (Only for ACMNADKH) Remove the cap screws, then the screws. Cap screw Screw Step 2.2 Disassembling the installation plate Phillips screwdriver... -
Page 9: Step 2.3 Connecting The Power And Communication Cables (Assembly Cable)
Step 2.3 Connecting the power and • When performing electrical and earthing works, be sure to comply with the 'technical standards of communication cables (assembly electrical installations' and the 'wiring regulations' in cable) the local regulations. • Tighten the terminal block screw to 1.2-1.8 N•m (12- 18 kgf•cm). NOTE • Each wire is labelled with the corresponding terminal number. -
Page 10: Step 2.4 Optional: Extending The Power Cable
Indoor Unit Installation Step 2.4 Optional: Extending the Using a crimping tool, compress the two points and flip it over and compress another two points in the power cable same location. Prepare the following tools. • The compression dimension should be 8.0. Tools Spec Shape... -
Page 11: Step 2.5 Installing And Connecting The Drain Hose
have the same level of withstand voltage with the power CAUTION cable. (Comply with the local regulations on extensions.) • Make sure that the indoor unit is in upright position WARNING when you pour water to check for leakage. Make sure that the water does not overflow onto the electrical • In case of extending the electric wire, please DO NOT part. -
Page 12: Step 2.7 Optional: Changing The Direction Of The Drain Hose
Indoor Unit Installation Step 2.7 Optional: Changing the Insert the drain hose by fixing it into the groove of the drain hose and the outlet of the drain pan. direction of the drain hose ACMNADKH Drain pan Drain pan outlet outlet Rubber cap Rubber cap... -
Page 13: Step 2.8 Installing And Connecting The Assembly Pipes To The Refrigerant Pipes (Assembly Pipe
Step 2.8 Installing and connecting Outer diameter (mm) Torque (N•m) Torque (kgf•cm) the assembly pipes to the refrigerant ø 6.35 14 to 18 140 to 180 pipes (assembly pipe) ø 9.52 34 to 42 350 to 430 ø 12.70 49 to 61 500 to 620 ø... -
Page 14: Step 2.9 Optional: Installing Dpm
Indoor Unit Installation Step 2.9 Optional: Installing DPM Flare nut • When installing DPM,you should set "DPM setting" to the outdoor unit. • If DPM model is not set,communication error may occur. Indoor outlet pipe Connecting pipe • While the outdoor unit is tracking the indoor unit for (Unit: mm) one minute after the power supply is turned on.the operation may stop if the remote control reception... -
Page 15: Step 2.11 Fixing The Installation Plate
NOTE Plastic anchor • Excessive torque may cause gas leakage. When extending the pipe with welding or brazing, ensure that nitrogen is used during the welding or brazing Wall process. The joint must be accessible and serviceable. 20 mm CAUTION (Unit : mm) Model • Tighten the flare nut at the specified torque. -
Page 16: Step 2.12 Fixing The Indoor Unit To The Installation Plate
Indoor Unit Installation Step 2.12 Fixing the indoor unit to the installation plate CAUTION • Make sure that the pipe bundle does not move when you install the indoor unit onto the installation plate. Step 2.13 Assembling the cover panel (Only for ACMNADKH) Lock the side hooks (D), then centre hooks (B). -
Page 17: Setting An Indoor Unit Address And Installation Option
Setting an indoor unit address and installation option • Set the indoor unit address and installation option Enter the mode for setting the options: with remote controller option. Set the each option Remove the batteries from the remote control, separately since you cannot set the ADDRESS setting and then insert them again. - Page 18 Setting an indoor unit address and installation option Take the steps presented in the following table: Option setting Status Setting SEG2, SEG3 option Press Low Fan button to enter SEG2 value. Press High Fan button to enter SEG3 value. Each time you press the button, will be selected in rotation.
- Page 19 Option setting Status Setting SEG11, SEG12 option Press Low Fan button to enter SEG11 value. Press High Fan button to enter SEG12 value. Each time you press the button, will be selected in rotation. SEG11 SEG12 10 Setting Auto mode Press Mode button to be changed to AUTO mode in the OFF status.
- Page 20 Setting an indoor unit address and installation option Option setting Status 17 Setting SEG21, SEG22 option Press Low Fan button to enter SEG21 value. Press High Fan button to enter SEG22 value. Each time you press the button, will be selected in rotation.
- Page 21 Setting the indoor unit addresses Make sure that the power is supplied to the indoor unit. If the indoor unit is not plugged in, it must include a power supply. The panel(display ) should be connected to an indoor unit to receive option. Before installing the indoor unit, assign an address to the indoor unit according to the air conditioning system plan.
- Page 22 Setting an indoor unit address and installation option SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12 assign option codes except SEG 1, 7 which are page options. Setting the installation options in a batch Make sure that the power is supplied to the indoor unit. If the indoor unit is not plugged in, it must include a power supply.
- Page 23 Option SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 Setting the output Use of external Explanation PAGE S-Plasma ion Buzzer control control of external control Indication Details Indication Details Indication Details Indication Details Indication Details Disuse Thermo Disuse RESERVED On/Off Indication and control details control...
- Page 24 Setting an indoor unit address and installation option Example : When installing DPM ( 1 Outdoor unit with 4 indoor units) Condition SEG 14 Setting Result External Level control Indoor 1 Indoor 2 Indoor 3 Indoor 4 control Default Not set (0) Slave (All) Master (Indoor 1), Disuse...
-
Page 25: Troubleshooting
Troubleshooting Detection of errors If an error occurs during the operation, an LED flickers and the operation is stopped except the LED. If you re-operate the air conditioner, it operates normally at first, then detect an error again. LED Display on the receiver &... - Page 26 Troubleshooting LED Display Error Abnormal condition code 1. COND mid sensor is detached E241 2. Refrigerant leakage (2nd detection) E554 3. Abnomally high temperature on Cond (2nd detection) E450 4. Low pressure s/w (2nd detection) E451 5. Abnomally high temperature on discharged air on outdoor unit E416 (2nd detection) 6.
