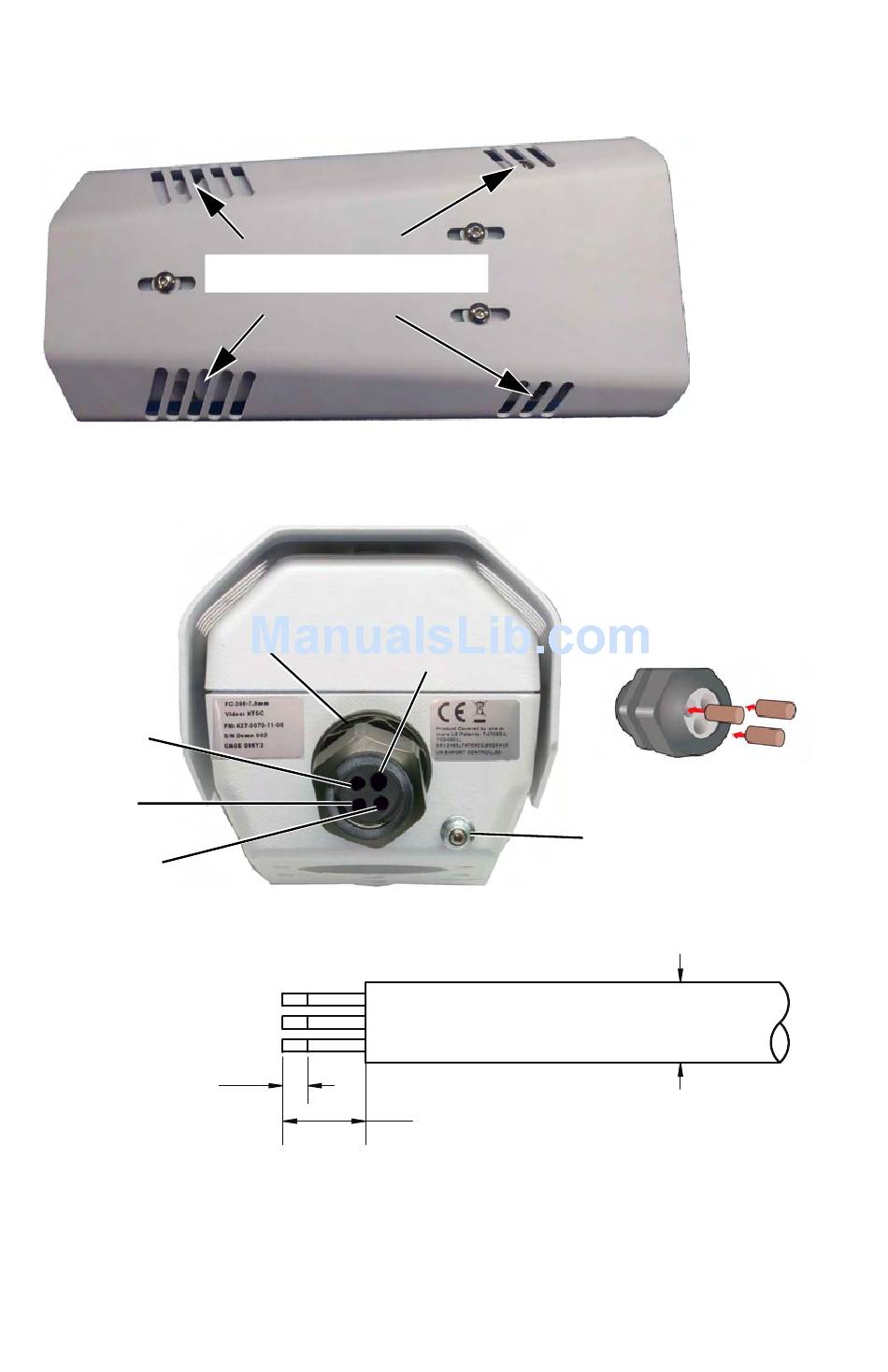

Step 1 Remove cover: Using 3 mm hex key, loosen four captive
screws. Removal of sunshield not necessary.

Step 2 Install cables through sealing gland:

Accessory
Ethernet
Power cable
Step 3 If using conventional power cable, strip cable as described
below:
Strip ends 3 Places
(0.2±.04 in)
6.0±1 mm
427-0073-12-28 Rev 110
Access captive screws
through slots in sunshield.
Gland nut
Video coax
Min diameter = 6.8 mm (0.27 in)
Max diameter = 9.4 mm (0.37 in)
Remove outer jacket
(0.8±.20 in)
20.0±5 mm
Re-tighten gland nut after
installation is completed.
Fill any unused hole with
orange plug.
Ground
Power Cable
May 2015
