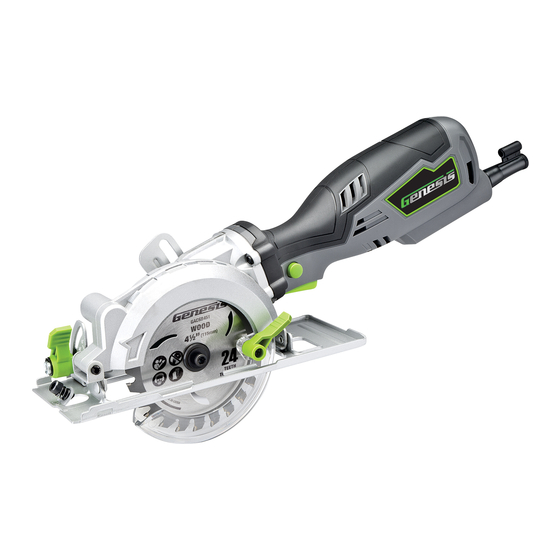

- Page 1 GCS545C 5.8 Amp, 4-1/2" Circular Saw Scie circulaire de 115 mm , 5,8A Sierra circular de 4-1/2”, 5,8A Operator’s Manual Manuel d’utilisation Manual del Operario TOLL FREE 888-552-8665 HELP LINE: www.genesispowertools.com WEBSITE:...
-
Page 2: Specifications
SPECIFICATIONS • Model: ------------------------ GCS545C • Rated Power: ------------------ 1 20V~ /60Hz, 5.8 Amp • No Load Speed: --------------- 3500 RPM • Blade Size: -------------------- 4-1/2” (115mm) • Arbor Size: -------------------- 3/8” (9.5mm) • Cutting Capacity at 90°: -------1-11/16” (42.8mm) • Cutting Capacity at 45°: -------1-1/8” (28mm) • Net Weight: -------------------- 5 .5 lbs Includes: 24T Carbide-tipped blade, Rip guide, Vacuum adaptor and Allen wrench WArNING: o reduce the risk of injury, user must read and understand this operator’s manual before operating this tool. Save this Manual for future reference. -
Page 3: Electrical Safety
Keep bystanders, children, and visitors away while operating a power tool. • Distractions can cause you to lose control. ELECTRICAL SAFETY Power tool plugs must match the outlet • . Never modify the plug in any way. Do not use any adaptor plugs in any earthed (grounded) power tools. Double insulated tools are equipped with a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a polarized outlet. Do not change the plug in any way. Double insulation eliminates the need for the three wire grounded power cord and grounded power supply system. Do not expose power tools to rain or wet conditions •... -
Page 4: Extension Cords
This will ensure that the safety of the power tool is maintained. Service your power tool periodically • . When cleaning a tool, be careful not to disassemble any portion of the tool since internal wires may be misplaced or pinched. SAVE THESE INSTRUCTIONS EXTENSION COrDS Grounded tools require a three wire extension cord Double insulated tools can use either a two or three wire extension cord. As the distance from the power supply outlet increases, you must use a heavier gauge extension cord. using extension cords with inadequately sized wire causes a serious drop in voltage, resulting in loss of power and possible tool damage. Refer to the table shown below to determine the required minimum wire size. The smaller the gauge number of the wire, the greater the capacity of the cord. for example: a 14-gauge cord can carry a higher current than a 16-gauge cord. When using more than one extension cord to make up the total length, be sure each cord contains at least the minimum wire size required. If you are using one extension cord for more than one tool, add the nameplate amperes and use the sum to determine the required minimum wire size. 5.8 Amp, 4-1/2" Circular Saw Operator’s Manual GCS545C... -
Page 5: Specific Safety Rules For Circular Saws
Guidelines for Using Extension Cords • If you are using an extension cord outdoors, be sure it is marked with the suffix “W-A” (“W” in Canada) to indicate that it is acceptable for outdoor use. • Be sure your extension cord is properly wired and in good electrical condition. Always replace a damaged extension cord or have it repaired by a qualified person before using it. • Protect your extension cords from sharp objects, excessive heat, and damp or wet areas. Recommended Minimum Wire Gauge for Extension Cords (120 Volt) Nameplate Extension Cord Length Amperes 25 Feet 50 Feet 75 Feet 100 Feet 150 Feet 200 Feet (At Full Load) 0–2.0 2.1–3.4 3.5–5.0... - Page 6 Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS 5.8 Amp, 4-1/2" Circular Saw Operator’s Manual GCS545C...
- Page 7 SYMBOLS Some of the following symbols may appear on this product. Study these symbols and learn their meaning. Proper interpretation of these symbols will allow for more efficient and safer operation of this product. SYMBOL DESCRIPTION SYMBOL DESCRIPTION Volts Alternating current or A.C.
- Page 8 Failure to do so could result in serious personal injury. CONTENTS IN PACKAGE Description Q'ty Description Q'ty Saw Allen Wrench Blade Vacuum Adaptor Rip Guide Operator’s Manual 5.8 Amp, 4-1/2" Circular Saw Operator’s Manual GCS545C...
-
Page 9: Assembly And Adjustments
ASSEMBLY AND ADJUSTMENTS WArNING: Always be sure that the tool is switched off and unplugged before adjusting, adding accessories, or checking a function on the tool. WArNING: 4-1/2” is the maximum blade capacity of your saw. Never use a blade that is too thick to allow the outer flange washer to fit properly on the spindle. Too thick a blade will prevent the blade bolt from securing the blade on the spindle. -
Page 10: Operation
The blade coming into contact with the work piece before reaching full speed could cause your saw to KICKBACK towards you resulting in serious personal injury. To stop the saw, release the trigger Allow the blade to come to a complete stop. NOTE: o not remove your saw from the work piece while the blade is still moving. 5.8 Amp, 4-1/2" Circular Saw Operator’s Manual GCS545C... -
Page 11: Bevel Cutting
APPLICATION CAUTION: To make sawing easier and safer, be sure to move the tool forward in a straight line gently. Forcing or twisting the tool will result in overheating the motor and dangerous KICKBACK, possibly causing severe personal injury. It’s important to understand the correct technique for operating your saw and to learn what the correct and incorrect ways for handling your saw. - Page 12 IMPOrTANT! The work piece must have a flat surface. Otherwise the cutting process will not be stable and will lead to poor cutting accuracy. IMPOrTANT! The saw only works with the Rip Cutting Tracking System with no bevel. Make sure the bevel setting on the saw is in 0° position before cutting. • Assemble the tracks. • Stabilize the track on the work piece. • Mount the front portion of the saw base on the start end of the track by inserting the right side edge of the base into the slot on the track. Make sure the blade is not contacting the work piece to be cut. • Align the indicator line on the base to the cutting line marked FIG 8 on work piece. • Secure the track by using the G-Clamps provided with the track system. • Switch on the tool and wait for a moment for the blade to run up to speed. Push the saw gently forward along the track. (Never draw the tool backwards.) • Once the cut has been finished, release the switch trigger. Wait for the blade to completely stop before remove the saw off the track. • The rubber on the track will be cut off during first cutting. This is normal. 5.8 Amp, 4-1/2" Circular Saw Operator’s Manual GCS545C...
-
Page 13: Maintenance
ACCESSOrIES recommended accessories for this tool: Model # Image Description Appliaction GACSB451 24 Teeth TCT Premium for cutting wood, plastic and other soft Saw Balde materials GACSB452 60 Teeth HSS Saw Balde for cutting drywall, wood, aluminum and other non-ferrous thin sheet metal • Make super accurate rip cuts up to 48" GAPCS203 Rip cutting track system • Add addtional tracks for even longer cuts MAINTENANCE CLEANING Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. use clean cloths to remove dirt, dust, oil, grease, etc. WArNING: Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury. -
Page 14: Two Year Warranty
THIS PRODUCT IS NOT WARRANTED IF USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES. ACCESSORIES INCLUDED IN THIS KIT ARE NOT COVERED BY THE 2 YEAR WARRANTY. TOLL-FrEE HELP LINE 888-552-8665 for questions about this or any other GeNeSIS™ Product, please call Toll-free: www.genesispowertools.com Or visit our web site: ©Richpower Industries, Inc. All Rights reserved Richpower Industries, Inc. 736 Hampton Road Williamston, SC 29697 Printed in China, on recycled paper 5.8 Amp, 4-1/2" Circular Saw Operator’s Manual GCS545C... - Page 15 Richpower Industries, Inc. 736 Hampton Road Williamston, SC USA www.genesispowertools.com 2016.01. V01...
