- Page 1 7 1⁄4" Circular Saw Operator’s Manual Scie circulaire de 18.4 cm (7 1⁄4") Manuel d’utilisation Sierra Circular de 7 1⁄4" Manual del Operario GCS100...
-
Page 2: Specifications

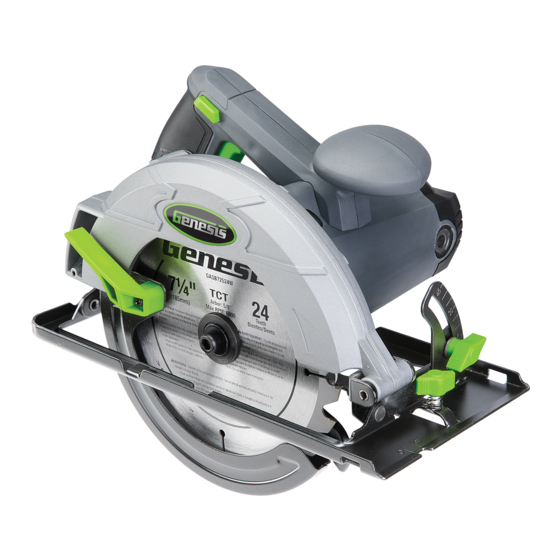

7 1⁄4" Circular Saw 10 Amp Operator’s Manual Specifications: • Model # GCS100 • Description: 7 1⁄4" Circular Saw • Input: 120V AC, 60Hz, 10.0 Amp • Blade Size: 7 1⁄4" • Blade Bevel: 0-45 degrees • No-Load Blade Speed: 5000 RPM • Arbor Size: 5/8" • Cutting Capacity at 90 degrees: 2-9/16" • Cutting Capacity at 45 degrees: 1-5/8" • Net Weight: 11.6 lbs. • Includes: Circular Saw with Carbide Blade, Blade Wrench, and Rip Guide WArning: To reduce the risk of injury, user must read and understand this operator’s manual before operating this tool. Save this Manual for future reference. - Page 3 15. USE THE COrrECT TOOL FOr THE JOB. Don’t force the tool or attachment to do a job for which it was not designed. Don’t use the tool for a purpose not intended as damage to the machine and/or personal injury may result. 16. USE rECOMMEnDED ACCESSOriES. using accessories and attachments not recommended by the manufacturer or intended for use on this type tool, may cause damage to the machine or result in personal injury to the user. Consult the operator’s manual for recommended accessories. 17. MAKE SUrE YOUr EXTEnSiOn COrD iS THE PrOPEr SiZE AnD iS in gOOD COnDiTiOn. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and tool overheating. Consult the extension Cord Chart for the correct size based on the cord length and nameplate ampere rating. If ever in doubt, use the next heavier wire gauge cord. The smaller the gauge number, the heavier the cord. 18. SECUrE THE WOrK-PiECE. use clamps or a vise to hold the work-piece when practical. using clamps or similar mechanical device is safer than using your hand(s) and allows you to use both hands to operate the tool. Losing control of the work-piece can cause personal injury. 7 1⁄4” Circular Saw Operator’s Manual GCS100...
- Page 4 Always use properly fitting niOSH/ OSHA approved respiratory protection appropriate for dust exposure, and wash exposed areas with soap and water. 7 1⁄4” Circular Saw Operator’s Manual GCS100...
-
Page 5: Guidelines For Using Extension Cords
2. Check lower guard for proper closing before each use. Do not operate saw if lower guard does not move freely and close instantly. never clamp or tie the lower guard into the open position. If saw is accidentally dropped, lower guard may be bent. Raise the lower guard with the Retracting Lever and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut. To check lower guard, open lower guard by hand, then release and watch guard closure. Also check to see that Retracting Lever does not touch tool housing. Leaving blade exposed is VeRY DANGeROuS and can lead to serious personal injury. 7 1⁄4” Circular Saw Operator’s Manual GCS100... - Page 6 17. Blade depth and bevel adjusting locking levers must be tight and secure before making cut. If blade adjustment shifts while cutting, it will cause binding and KICKBACK. 18. Use extra caution when making a “Pocket Cut” into existing walls or other blind areas. The protruding blade may cut objects that can cause KICKBACK. 7 1⁄4” Circular Saw Operator’s Manual GCS100...
-
Page 7: Operation
Always maintain the correct blade depth setting. For all cuts the blade depth should not exceed 1⁄4” below the material being cut. Excessive blade depth increases the chance of saw KiCKBACK. Bevel Angle Adjustment • Loosen the clamp knob at the bevel scale plate on the front of the saw base. • Tilt the saw base until the desired graduation on the bevel scale aligns with the indicator line on the stationary bevel bracket. • Tighten the clamp knob securely. • Always make a test cut in scrap lumber and measure the cut angle to confirm the bevel angle is set properly; if necessary, adjust the bevel angle appropriately before cutting the work piece. 7 1⁄4” Circular Saw Operator’s Manual GCS100... -
Page 8: Installing The Rip Guide
Unplug the saw and reposition the cord to prevent it from hanging up again. 7 1⁄4” Circular Saw Operator’s Manual GCS100... -
Page 9: Bevel Cutting
• Start the saw and let the blade reach full speed. • Guide the saw down into the work piece and make the cut. WArning: Always cut in a forward direction when pocket cutting. Cutting in the reverse direction could cause the saw to climb up on the work piece and back toward you. • Release the trigger and allow the blade to come to a complete stop. • Lift the saw from the work piece. • Repeat this procedure for the remaining sides, and then clear the corners out with a hand saw or jig saw. WArning: never tie the lower blade guard in a raised position. Leaving the blade exposed could lead to serious injury. 7 1⁄4” Circular Saw Operator’s Manual GCS100... -
Page 10: Two Year Warranty
3. Lower Guard 4. Blade Screw 5. Base Plate 6. Dust extraction Chute 7. Rear Handle 8. front Handle 9. Trigger Switch Two-Year Warranty This product is warranted free from defects in material and workmanship for 2 years after date of purchase. This limited warranty does not cover normal wear and tear or damage from neglect or accident. The original purchaser is covered by this warranty and it is not transferable. Please return the tool to store location of purchase along with your receipt, and you will receive a new drill or a refund. THIS PRODUCT IS NOT WARRANTED IF USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES. Toll-Free Help Line: for questions about this or any other GeNeSIS Product, please call Toll-free: 888-552-8665. 7 1⁄4” Circular Saw Operator’s Manual GCS100... - Page 11 Richpower Industries, Inc. 736 Hampton Road Williamston, SC USA www.richpowerinc.com...
