Asco 8262 series Installation & Maintenance Instructions

Installation & Maintenance Instructions
NORMALLY OPEN OR NORMALLY CLOSED OPERATION
BRASS OR STAINLESS STEEL CONSTRUCTION - 1/8 , 1/4 , OR 3/8 PIPE THREADS
IMPORTANT: See separate solenoid installation and maintenance
instructions for information on: Wiring, Solenoid Temperature,
Causes of Improper Operation, and Coil or Solenoid Replacement.

DESCRIPTION

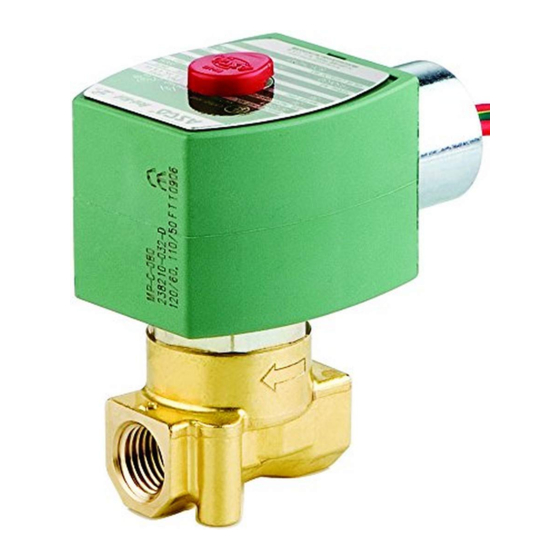

Series 8262 and 8263 valves are 2-way direct-acting general service
solenoid valves. Valves bodies are of rugged brass or stainless steel.
Series 8262 or 8263 valves may be provided with a watertight/
explosionproof solenoid enclosure.
Notice: Brass valves are not certifi ed as lead-free under the Safe
Water Drinking Act SWDA 1417 and are not intended for use on
drinking water systems. They are intended for control of water in
industrial applications. Consult ASCO for valves rated for use in
potable water applications.

OPERATION

Normally Open: Valve is open when solenoid is de-energized; closed
when energized.
Normally Closed: Valve is closed when solenoid is de-energized;
open when energized.
IMPORTANT: No minimum operating pressure required.
Manual Operation (Valves with Suffi x MS)
Manual operator allows manual operation when desired or during
an electrical power outage. To engage manual operator, rotate stem
on the side of the body clockwise until it hits a stop, approximately
90º from its original position. Do NOT rotate beyond stops. Do NOT
apply excessive force beyond stops. Valve will now be in the same
position as when the solenoid is energized. To disengage,rotate stem
counterclockwise until it hits a stop, approximately 90º from its original
position. Do NOT rotate beyond stops. Do NOT apply excessive force
beyond stops.
MS option is not available on normally closed valves that have a
pressure rating greater than 750 PSI. MS option is not available on
normally open valves.
CAUTION: Do NOT rotate beyond 90 stops. Do NOT
apply excessive force beyond stops. Rotating beyond the
90 result in equipment damage.
CAUTION: For valve to operate electrically, manual
operator stem must be fully rotated counterclockwise.

INSTALLATION

Check nameplate for correct catalog number, pressure, voltage,
frequency, and service. Never apply incompatible fl uids or exceed
pressure rating of the valve. Installation and valve maintenance to be
performed by qualifi ed personnel.
Note: Inlet port will either be marked "1" or "IN". Outlet port will be
marked "2" or "OUT". (see Figure 1)

Future Service Considerations.

Provision should be made for performing seat leakage, external leakage,
and operational tests on the valve with a nonhazardous,noncombustible
fl uid after disassembly and reassembly.

Temperature Limitations

For maximum valve ambient and fl uid temperatures, refer to the
following tables. Use catalog number, coil prefi x, suffi x,and watt rating
on nameplate to identify the maximum ambient and fl uid temperatures.
ASCO Valves®
©ASCO Valve, Inc. 50 Hanover Road, Florham Park, New Jersey 07932 www.ascovalve.com
2-WAY DIRECT-ACTING SOLENOID VALVES
REVISION "H" & "R"
E244785 - 4/14
NOTE: The following Temperature Limitations Tables do not apply
to Magnetic Latch Valves: Catalog Numbers 8262A610 to 8262A627;
8263A615 to 8263A618, and 8263A624 to 8263A627. See separate
Instruction Manual.
Max. Ambient Temperature Limitations for AC and DC Coil Valves,
Catalog Numbers 8262H/R & 8263H/R
Coil
Prefi x

Class
EF,EV FT 6.1, 10.1 8.1, 10.1
EF,EV FB 9.1, 17.1 11.1, 17.1
FT 6.1, 10.1 8.1, 10.1
FB 9.1, 17.1 11.1, 17.1
HT
HB
EF,EV HT
EF,EV HB
HT 6.1, 10.1 8.1, 10.1
HB 9.1, 17.1 11.1, 17.1
EF,EV HT 6.1, 10.1 8.1, 10.1
EF,EV HB 9.1, 17.1 11.1, 17.1
-
Max. Ambient Temperature Limitations for AC and DC Coil Valves,
Catalog Numbers 8262H/R & 8263H/R
Valve
Elastomer/
Class
Suffi x
UR/None
NBR/
None
FT, FB,
CR/J
HT, HB
Lt-Nitrile/A
EPDM/E
HT with
EF/EV
Prefi x
FKM/V &
HB with
PTFE/T
EF/EV
Prefi x
HB
 = EF, EV data applies to Explosionproof coils only.
 = DC Normally closed solenoid valves can be operated at maximum
ambient temperature of 55° C / 131° F with reduced pressure
ratings. See page 5 of 5, Section 2 of 2 for maximum operating
pressure
 = Solenoid coils with prefi x EF & EV are limited to a maximum fl uid
temperature of 99°C/ 210°F

= Urethane (UR) elastomer applies to catalog numbers 8262H079, 089,
096 099, 106, 107, 154, 155, 159, 161, 167, 168, 173, 175, 176, 180,
181, 198, 199, 200, 214 and 8262R107, 181, 155, 161, 168, 169.

= Normally open 8262H & 8263H valves fi tted with HB 17.1 watt AC
coils have a maximum fl uid temperature of 75°C (167°F)
All Rights Reserved.
I&M No. V 9575 R5 - Sec. 1
(Section 1 of 2)
Watt Ratings
AC
DC
60Hz 50Hz
-
-
-
-
- - 10.6, 11.6
- - 22.6, 18.6
- - 10.6, 11.6
- - 22.6, 18.6
-
-
-
-
2 2 2
Watt Ratings
Coil
AC
60Hz 50Hz
6.1, 10.1, 8.1, 10.1,
9.1, 17.1, 11.1,
2 17.1, 2
FT 6.1, 10.1 8.1, 10.1
FB 11.1, 17.1
6.1, 10.1 8.1, 10.1 10.6, 11.6
9.1, 17.1 11.1, 17.1 18.6, 22.6
HT 6.1, 10.1 8.1, 10.1 10.6, 11.6
9.1, 17.1 11.1, 17.1 18.6, 22.6
- 2 2
differential.
I&M No. V 9575 R5 - Sec. 1
Page 1 of 5 (Section 1 of 2)
SERIES
8262
8263
Max Ambient
Temperature
Normally Normally
Closed Open
°C °F °C °F
52 125
52 125
- -
55 131
55 131
- -
40 104
55 131
 
60 140
55 131
60 140 60 140
- -
60 140
Max. Fluid
Temp.
DC
°C °F
60 140
82 180
10.6,
 
11.6,
18.6,
75 167
22.6, 2
99 210
 
-
-
99 210
 
121 250
 
2
