STEP 6: Remove the terminal cover
1. Using a flat bladed screwdriver, turn the terminal cover locking clip anti-clockwise by approximately 30°.
2. Slide the terminal cover down.
3. Remove terminal cover in direction shown.
STEP 7: Identify the features of the drive

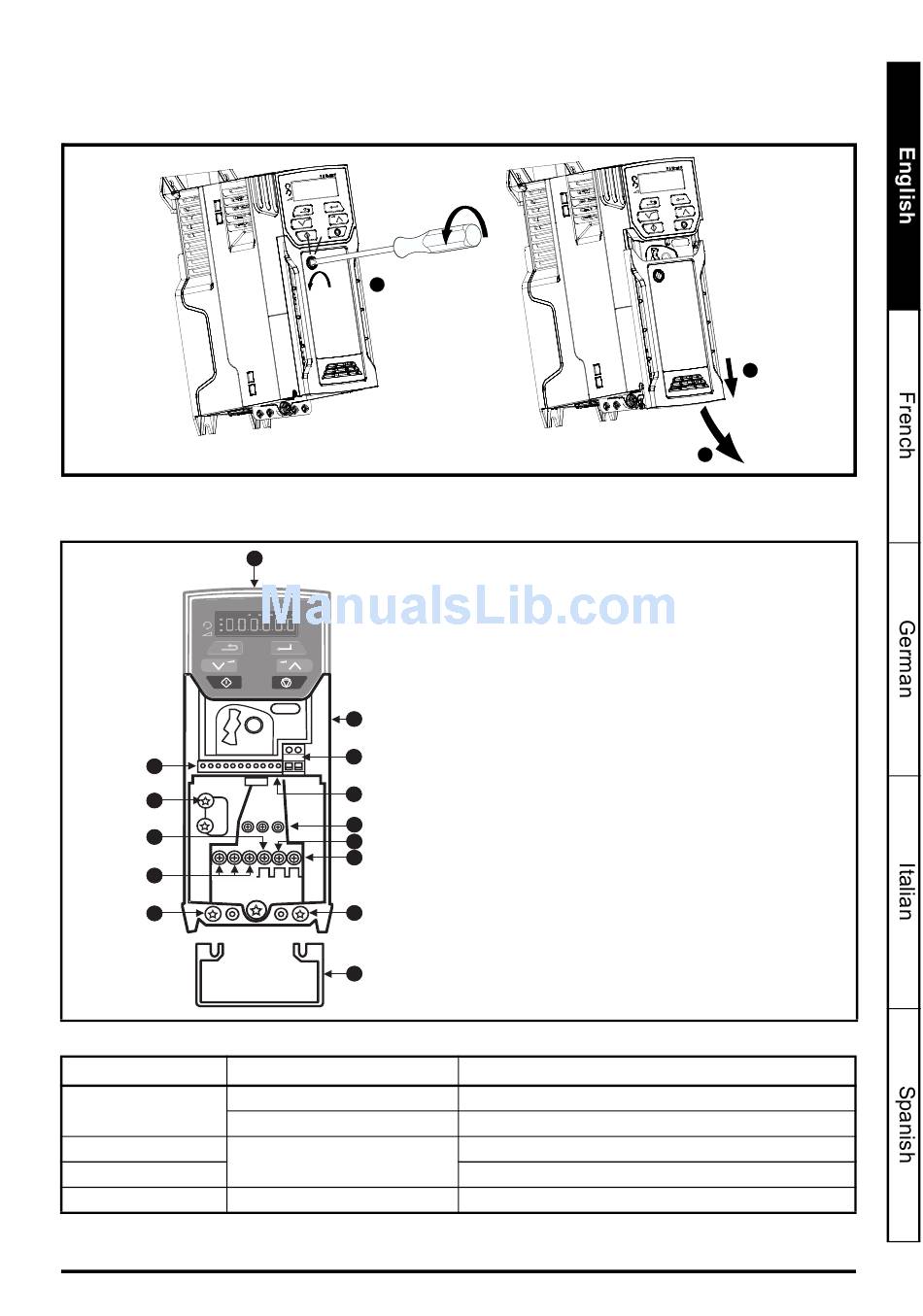

Figure 7-1 Feature diagram (size 2 shown)
+
4
EMC
6
8
MOV
9
U V
11
Table 7-1 Recommended torque settings
Model size
All
1
2, 3, 4
All
Unidrive M100/M101/M200/M201/M300 Step By Step Guide
Issue Number: 1
1
2
1
3
12
L1 L2 L3
10
7
5
W - + BR
11
13
Terminal block description
Control terminals
Relay terminals
Power terminals
Ground terminals
Key
1. Rating label (on side of drive)
2. Identification label
3. Relay connections
4. Control connections
5. Braking terminal
6. Internal EMC filter screw*
7. DC bus +
8. DC bus -
9. Motor connections
10. AC supply connections
11. Ground connections
12. Safe Torque Off terminals (STO)**
13. Cable bracket to screw onto ground
terminals (11).
* Before removing the screw, refer to section 4.7.2
in the Power Installation
** Unidrive M300 only.
Torque settings
0.2 N m (0.15 Ib ft)
0.5 N m (0.37 Ib ft)
0.5 N m (0.37 Ib ft)
1.4 N m (1.03 Ib ft)
1.5 N m (1.10 Ib ft)
2
3
Guide.
5
