Quick Start
Use this guide for help with setting up Juno
Capture. For more detailed information, see the Juno Software User Guide and the
Juno System User guides.

Set your system up in 3 easy steps!

1. Connect cables.
2. Install software.
3. Activate the software license.

1. Connect the Juno Tower to Your Computer

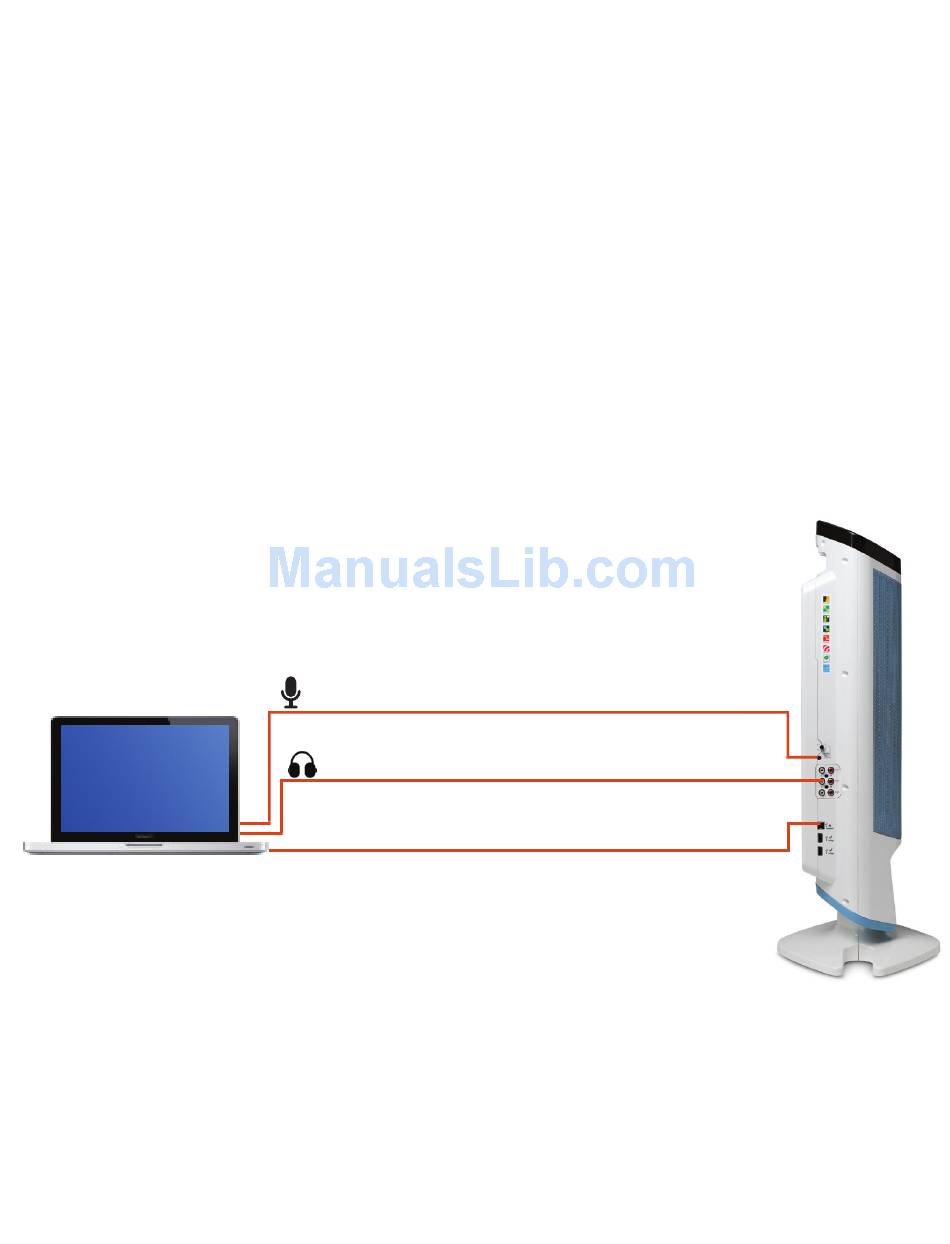

1. Connect the 3 cables shown below between your Juno Tower and
the computer.*
Computer
* The 3.5mm to 3.5mm and USB cables are only necessary if using the optional FrontRow
Desktop and Juno Lesson Capture Software. The 3.5mm to RCA cable is for audio playback
from the computer through the Juno Tower.
and getting started with Juno Lesson
®
3.5mm – 3.5mm
Line / Mic In
Line Out
audio cable*
3.5mm – RCA
audio cable
USB cable*
Audio Out
Audio In
