Intel Compute Card User Manual page 3

Intel Compute Card User Guide – v1.0
This user guide includes setup and usage information for Intel® Compute Cards when
used with the Intel® Compute Card Dock DK132EPJ.
Topics
Product descriptions
•
Connect keyboard and mouse
•
Connect to a network
•
Connect to a display
•
Connect power
•
Insert Intel Compute Card
•
Eject a Card
•
Install an operating system
•
Install driver and BIOS updates
•
Attach the VESA bracket (optional)
•
Secure Dock with a cable lock (optional)
•

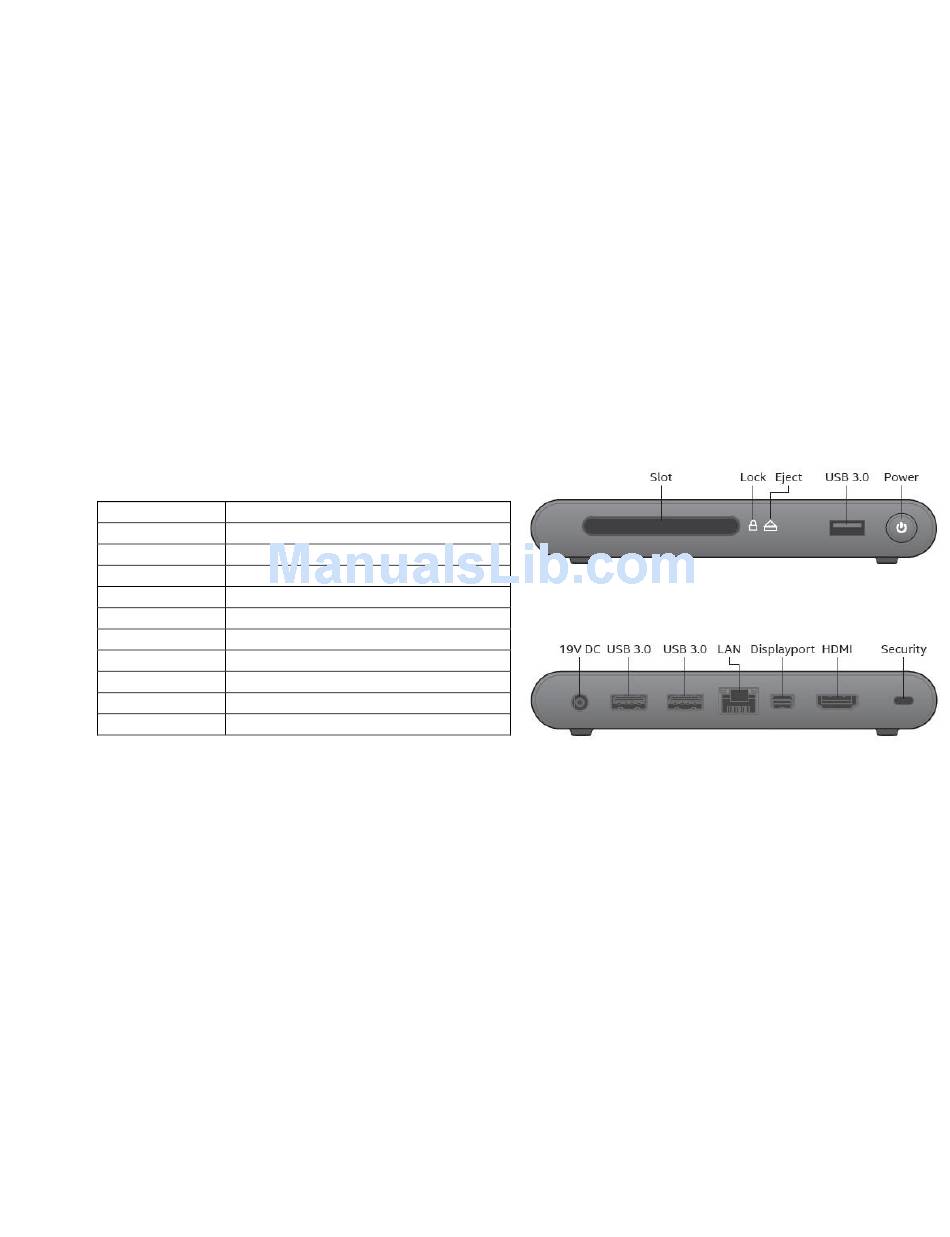

Product Description (Dock)
Symbol Description
Slot Slot for Intel Compute Card
Lock Lock Indicator
Eject Eject Button / Indicator
USB 3.0 One on front and two on back
Power Power Button / Indicator
19V DC Power input jack
LAN Gigabit Ethernet port
Displayport MiniDisplayPort connector
HDMI HDMI (standard size) connector
Security Security cable lock connector
