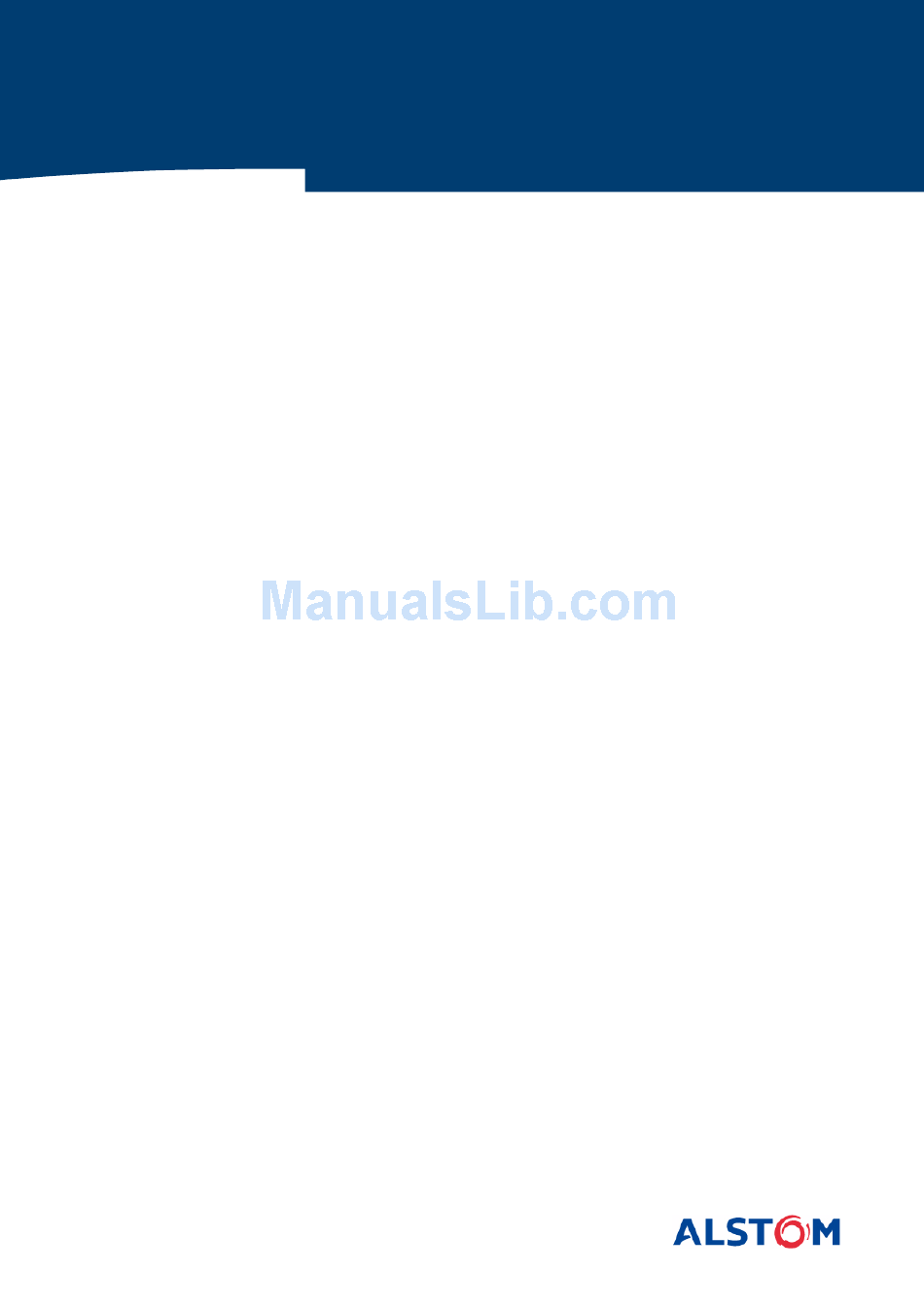

© - ALSTOM 2016. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be relied on that it
is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is provided without liability and is
subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is strictly prohibited.
MiCOM P14DB
MICS
Model Implementation Conformance
Statement
Platform Hardware Version: A
Platform Software Version: 57
Publication Reference:
P14DB-MC-EN-7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Micom P14DB and is the answer not in the manual?

Questions and answers

Related Manuals for Alstom Micom P14DB

Summary of Contents for Alstom Micom P14DB

  • Page 1 P14DB-MC-EN-7 © - ALSTOM 2016. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be relied on that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is provided without liability and is...
  • Page 3 The "M/O" field is not present as the definitions are as deployed within the model • An additional column "X" is used to signify ALSTOM custom attributes Logical Device definitions The MiCOM relay implements an IEC 61850 server that can contain one or more Logical Devices.
  • Page 4 P14DB-MC-EN-7 MICS (MC) 2 MiCOM 40 Agile P14DB LN Instance LN Type Description Measurements LLN0 LLN0_STANDARD Measurements Logical Device LPHD1 LPHD_STANDARD Physical Device Information PriAvgMSTA1 MSTA_V Primary Metering Statistics (Moving Average Voltage) PriFouMMXU1 MMXU_FOURIER_P145 Primary Fourier Measurements PriMMTR1 MMTR_PRIV Primary based metering quantities PriMSQI1 MSQI_ALL Primary Sequence Measurements...
  • Page 5 MICS P14DB-MC-EN-7 MiCOM 40 Agile P14DB (MC) 3 LN Instance LN Type Description FrqPTUF1 PTUF_NO_SEG F< 1 Under Frequency FrqPTUF2 PTUF_NO_SEG F< 2 Under Frequency FrqPTUF3 PTUF_NO_SEG F< 3 Under Frequency FrqPTUF4 PTUF_NO_SEG F< 4 Under Frequency FrqPTUF5 PTUF_NO_SEG F< 5 Under Frequency FrqPTUF6 PTUF_NO_SEG F<...
  • Page 6 P14DB-MC-EN-7 MICS (MC) 4 MiCOM 40 Agile P14DB LN Instance LN Type Description VtpPhsPTUV2 PTUV_SEG V< 2 Undervoltage VtpPhsPTUV3 PTUV_SEG V< 3 Undervoltage VtpResPTOV1 PTOV_NEU VN> 1 Residual Overvoltage VtpResPTOV2 PTOV_NEU VN> 2 Residual Overvoltage VtpResPTOV3 PTOV_NEU VN> 3 Residual Overvoltage ZrvAvgPTOV1 PTOV_NO_SEG V0avg>...
  • Page 7 MICS P14DB-MC-EN-7 MiCOM 40 Agile P14DB (MC) 5 LN Type Description Name Space LLN0_PROT (LLN0) Protection Domain Logical Node 0 IEC 61850-7- 4:2003 LLN0_STANDARD (LLN0) General Logical Node 0 IEC 61850-7- 4:2003 LPHD_STANDARD (LPHD) Px40 Physical Device Information IEC 61850-7- 4:2003 MMTR_PRIV (MMTR) Metering...
  • Page 8 P14DB-MC-EN-7 MICS (MC) 6 MiCOM 40 Agile P14DB 1.4.1 Logical Node: CILO_INTERLOCK Description: Control Interlocking LN Class: CILO Attribute Attr. Type Explanation INC_MOD Mode INS_BEH Behaviour Health INS_HEALTH Health NamPlt LPL_LN Name Plate EnaOpn SPS_WD Enable OPEN Commands EnaCls SPS_WD Enable CLOSE Commands 1.4.2 Logical Node: GGIO_ALM_96...
  • Page 9 MICS P14DB-MC-EN-7 MiCOM 40 Agile P14DB (MC) 7 Attribute Attr. Type Explanation Alm27 SPS_D General single alarm Alm28 SPS_D General single alarm Alm29 SPS_D General single alarm Alm30 SPS_D General single alarm Alm31 SPS_D General single alarm Alm32 SPS_D General single alarm Alm33 SPS_D General single alarm...
  • Page 10 P14DB-MC-EN-7 MICS (MC) 8 MiCOM 40 Agile P14DB Attribute Attr. Type Explanation Alm72 SPS_D General single alarm Alm73 SPS_D General single alarm Alm74 SPS_D General single alarm Alm75 SPS_D General single alarm Alm76 SPS_D General single alarm Alm77 SPS_D General single alarm Alm78 SPS_D General single alarm...
  • Page 11 MICS P14DB-MC-EN-7 MiCOM 40 Agile P14DB (MC) 9 1.4.4 Logical Node: GGIO_IND_3 Description: Generic Process I/O (w.r.t 3 Indication Elements) LN Class: GGIO Attribute Attr. Type Explanation INC_MOD Mode INS_BEH Behaviour Health INS_HEALTH Health NamPlt LPL_LN Name Plate Ind1 SPS_D General Indication (Binary input) Ind2 SPS_D...
  • Page 12 P14DB-MC-EN-7 MICS (MC) 10 MiCOM 40 Agile P14DB Attribute Attr. Type Explanation Ind26 SPS_D General indication (binary input) Ind27 SPS_D General indication (binary input) Ind28 SPS_D General indication (binary input) Ind29 SPS_D General indication (binary input) Ind30 SPS_D General indication (binary input) Ind31 SPS_D General indication (binary input)
  • Page 13 MICS P14DB-MC-EN-7 MiCOM 40 Agile P14DB (MC) 11 Attribute Attr. Type Explanation Ind30 SPS_D General indication (binary input) Ind31 SPS_D General indication (binary input) Ind32 SPS_D General indication (binary input) Ind33 SPS_D General indication (binary input) Ind34 SPS_D General indication (binary input) Ind35 SPS_D General indication (binary input)
  • Page 14 P14DB-MC-EN-7 MICS (MC) 12 MiCOM 40 Agile P14DB Attribute Attr. Type Explanation SPCSO2 SPC_CONTROL_NS Single point controllable status output SPCSO3 SPC_CONTROL_NS Single point controllable status output SPCSO4 SPC_CONTROL_NS Single point controllable status output SPCSO5 SPC_CONTROL_NS Single point controllable status output SPCSO6 SPC_CONTROL_NS Single point controllable status output SPCSO7...
  • Page 15 MICS P14DB-MC-EN-7 MiCOM 40 Agile P14DB (MC) 13 Attribute Attr. Type Explanation SPCSO47 SPC_CONTROL_NS Single point controllable status output SPCSO48 SPC_CONTROL_NS Single point controllable status output SPCSO49 SPC_CONTROL_NS Single point controllable status output SPCSO50 SPC_CONTROL_NS Single point controllable status output SPCSO51 SPC_CONTROL_NS Single point controllable status output SPCSO52 SPC_CONTROL_NS Single point controllable status output SPCSO53 SPC_CONTROL_NS Single point controllable status output...
  • Page 16 P14DB-MC-EN-7 MICS (MC) 14 MiCOM 40 Agile P14DB Attribute Attr. Type Explanation OcpBeh INS_BEH_D_PRIV Overcurrent Behaviour NgcMod INC_CTRL_PRV_NS Negative Sequence Mode NgcBeh INS_BEH_D_PRIV Negative Sequence Behaviour EfmMod INC_CTRL_PRV_NS Earth Fault 1 (Measured) Mode EfmBeh INS_BEH_D_PRIV Earth Fault 1 (Measured) Behaviour EfdMod INC_CTRL_PRV_NS Earth Fault 2 (Derived) Mode EfdBeh...
  • Page 17 MICS P14DB-MC-EN-7 MiCOM 40 Agile P14DB (MC) 15 1.4.12 Logical Node: LPHD_STANDARD Description: Px40 Physical Device Information LN Class: LPHD Attribute Attr. Type Explanation PhyNam DPL_STANDARD Physical device name plate PhyHealth INS_HEALTH Physical device health Proxy SPS_D Indicates if this LN is a proxy PwrUp SPS_D Power up detected...
  • Page 18 P14DB-MC-EN-7 MICS (MC) 16 MiCOM 40 Agile P14DB Attribute Attr. Type Explanation WYE_SEG Phase apparent power (S) WYE_SEG Phase power factor 1.4.15 Logical Node: MMXU_RMS_P145 Description: Standard measurements (w.r.t RMS Values - P145) LN Class: MMXU Attribute Attr. Type Explanation INC_MOD Mode INS_BEH...
  • Page 19 MICS P14DB-MC-EN-7 MiCOM 40 Agile P14DB (MC) 17 Attribute Attr. Type Explanation AvW2 MV_FLOAT_D Average real power AvW3 MV_FLOAT_D Average real power AvW4 MV_FLOAT_D Average real power MaxW1 MV_FLOAT_D Maximum real power MaxW2 MV_FLOAT_D Maximum real power MaxW3 MV_FLOAT_D Maximum real power AvVAr1 MV_FLOAT_D Average reactive power AvVAr2...
  • Page 20 P14DB-MC-EN-7 MICS (MC) 18 MiCOM 40 Agile P14DB Attribute Attr. Type Explanation T X INS_BEH Behaviour Health INS_HEALTH Health NamPlt LPL_LN Name Plate ACD_NEU Start ACT_NEU Operate 1.4.21 Logical Node: PTOC_NO_SEG Description: Timed Overcurrent (w.r.t No Phase Segregation) LN Class: PTOC Attribute Attr.
  • Page 21 MICS P14DB-MC-EN-7 MiCOM 40 Agile P14DB (MC) 19 Attribute Attr. Type Explanation T X Health INS_HEALTH Health NamPlt LPL_LN Name Plate ACD_NEU Start ACT_NEU Operate 1.4.25 Logical Node: PTOV_NO_SEG Description: Overvoltage (w.r.t Phase Segregation) LN Class: PTOV Attribute Attr. Type Explanation T X INC_MOD Mode...
  • Page 22 P14DB-MC-EN-7 MICS (MC) 20 MiCOM 40 Agile P14DB Attribute Attr. Type Explanation NamPlt LPL_LN Name Plate MV_FLOAT Current for thermal load model TmpRl MV_FLOAT Relation between temperature and maximum temperature ACT_NO_SEG Operate AlmThm ACT_NO_SEG Thermal alarm MTRRs SPC_CTRL_PRV_NS Reset Thermal State 1.4.29 Logical Node: PTUF_NO_SEG Description:...
  • Page 23 MICS P14DB-MC-EN-7 MiCOM 40 Agile P14DB (MC) 21 Attribute Attr. Type Explanation INS_BEH Behaviour Health INS_HEALTH Health NamPlt LPL_LN Name Plate OpEx ACT_NO_SEG Breaker failure trip ("External trip") T 1.4.33 Logical Node: RDRE_BASIC Description: Disturbance Recorder function (w.r.t Mandatory Attributes only) LN Class: RDRE Attribute Attr.
  • Page 24 P14DB-MC-EN-7 MICS (MC) 22 MiCOM 40 Agile P14DB FC Name Semantic Source Definition GOOSE Control IEC 61850-7-2 GSSE Control (UCA2 GOOSE) IEC 61850-7-2 Logging IEC 61850-7-2 Multicast sampled value control IEC 61850-7-2 Measurands (Analogue values) IEC 61850-7-2 Unbuffered reports IEC 61850-7-2 Setting Group Editable IEC 61850-7-2 Setting Group...
  • Page 25 MICS P14DB-MC-EN-7 MiCOM 40 Agile P14DB (MC) 23 Attribute Type FC Enumeration Comment dirPhsA ENUMERATED8 ST dir Phase A direction (unknown, forward or (MMS Type: INT8) backward) phsB BOOLEAN Trip or start event of Phase B has happened dirPhsB ENUMERATED8 ST dir Phase B direction (unknown, forward or (MMS Type: INT8)
  • Page 26 P14DB-MC-EN-7 MICS (MC) 24 MiCOM 40 Agile P14DB Attribute Type FC Enumeration Comment Quality Quality of counter value TimeStamp ST Time of last counter change pulsQty FLOAT32 Magnitude of the counted value 'per count' (value = actVal x pulsQty) 1.5.8 Common Data Class: CMV_MAG_ANG_FLOAT Description: Complex Measured value (w.r.t Floating Point Magnitude and Angle)
  • Page 27 MICS P14DB-MC-EN-7 MiCOM 40 Agile P14DB (MC) 25 1.5.11 Common Data Class: DPC_CTRL_PRV_NS Description: Controllable Double Point (NAME SPACE) CDC Class: Attribute Type FC Enumeration Comment ctlVal BOOLEAN Control value (Off - FALSE, On - TRUE) bypass ENUMERATED8 Bypass Bypass (MMS Type: BSTR16) origin Originator...
  • Page 28 P14DB-MC-EN-7 MICS (MC) 26 MiCOM 40 Agile P14DB 1.5.14 Common Data Class: INC_MOD Description: Controllable Integer Status (w.r.t Mode) CDC Class: Attribute Type FC Enumeration Comment stVal INT32 ST Mod Status value of the data (MMS Type: INT8) Quality Quality of the status value TimeStamp Timestamp of the last change in state of status value...
  • Page 29 MICS P14DB-MC-EN-7 MiCOM 40 Agile P14DB (MC) 27 1.5.19 Common Data Class: INS_HEALTH Description: Integer Status (w.r.t health) CDC Class: Attribute Type FC Enumeration Comment stVal INT32 ST Health The element status (MMS Type: INT8) Quality The quality of the status value TimeStamp Timestamp of the last change in state 1.5.20...
  • Page 30 P14DB-MC-EN-7 MICS (MC) 28 MiCOM 40 Agile P14DB 1.5.23 Common Data Class: MV_FLOAT_D Description: Measured value (w.r.t Floating Point Value with Description) CDC Class: Attribute Type FC Enumeration Comment AnalogueValue_Float Deadbanded magnitude of the instantaneous value of a measured value or harmonic value.
  • Page 31 MICS P14DB-MC-EN-7 MiCOM 40 Agile P14DB (MC) 29 1.5.26 Common Data Class: SPC_CTRL_PRV_NS Description: Controllable Single Point (NAME SPACE) CDC Class: Attribute Type FC Enumeration Comment ctlVal BOOLEAN Control value (Off - FALSE, On - TRUE) bypass ENUMERATED8 Bypass Bypass (MMS Type: BSTR16) origin Originator...
  • Page 32 P14DB-MC-EN-7 MICS (MC) 30 MiCOM 40 Agile P14DB 1.5.29 Common Data Class: SPS_WD_PRIV Description: Single Point Status (without Description with Name Space)) CDC Class: Attribute Type FC Enumeration Comment stVal BOOLEAN The element status (TRUE or FALSE) Quality The quality of the status value TimeStamp Timestamp of the last change in state dataNs...
  • Page 33 MICS P14DB-MC-EN-7 MiCOM 40 Agile P14DB (MC) 31 Common data attribute type definitions Common data attribute types, known herein as components, are defined for use in the Common Data Classes defined in the sections above. 1.6.1 Component: AnalogueValue_Float Comment: General analogue value (w.r.t Floating Point value) Parent Type: AnalogueValue Attribute Type Enumeration Comment...
  • Page 34 P14DB-MC-EN-7 MICS (MC) 32 MiCOM 40 Agile P14DB 1.6.6 Component: Vector_MagnitudeAngle_Float Comment: Complex vector (w.r.t Floating Point Magnitude and Angle values) Parent Type: Vector Attribute Type Enumeration Comment AnalogueValue_Float The magnitude of the complex value AnalogueValue_Float The angle of the complex value (the unit is degrees) Enumerated type definitions The following sub-sections specify the enumerations that are associated to some Common...
  • Page 35 MICS P14DB-MC-EN-7 MiCOM 40 Agile P14DB (MC) 33 1.7.3 Enumerated type: Bypass Description: Bypass(Private) Ordinal Semantic locking-bypass mode-bypass automation-bypass uniqueness-bypass select-bypass status-bypass 1.7.4 Enumerated type: CBOpCap Description: Enumeration for CB Operation Ordinal Semantic None Open Close-Open Open-Close-Open Close-Open-Close-Open 1.7.5 Enumerated type: ctlModel Description: Control Model...
  • Page 36 P14DB-MC-EN-7 MICS (MC) 34 MiCOM 40 Agile P14DB 1.7.8 Enumerated type: Health Description: Health Ordinal Semantic Warning Alarm 1.7.9 Enumerated type: Description: Mode Ordinal Semantic blocked test test/blocked 1.7.10 Enumerated type: multiplier Description: Exponents of the multiplier value in base 10. Ordinal Semantic µ...
  • Page 37 MICS P14DB-MC-EN-7 MiCOM 40 Agile P14DB (MC) 35 Ordinal Semantic station-control remote-control automatic-bay automatic-station automatic-remote maintenance process 1.7.12 Enumerated type: seqT Description: Sequence Measurement Type Ordinal Semantic pos-neg-zero dir-quad-zero 1.7.13 Enumerated type: SIUnit Description: SI Units derived from ISO/IEC 1000 Ordinal Semantic years months...
  • Page 38 P14DB-MC-EN-7 MICS (MC) 36 MiCOM 40 Agile P14DB Ordinal Semantic °C m² m³ m/s² m³/s m/m³ kg/m³ m²/s W/m K rad/s Watts cos(phi) V² A² A²t VArh V/Hz...
  • Page 39 MICS P14DB-MC-EN-7 MiCOM 40 Agile P14DB (MC) 37 MMS data-type conversions The following table shows the relationships between the Part 7 and Part 8-1 data types. The definitions presented above use Part 7 data types, however these are subject to 'translation' when exposed over an MMS (Part 8-1) interface: Part 7 Type MMS Type...
  • Page 40 Alstom Grid © - ALSTOM 2016. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be relied on that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances.
