Summary of Contents for ACTISOL Perimeter Pro

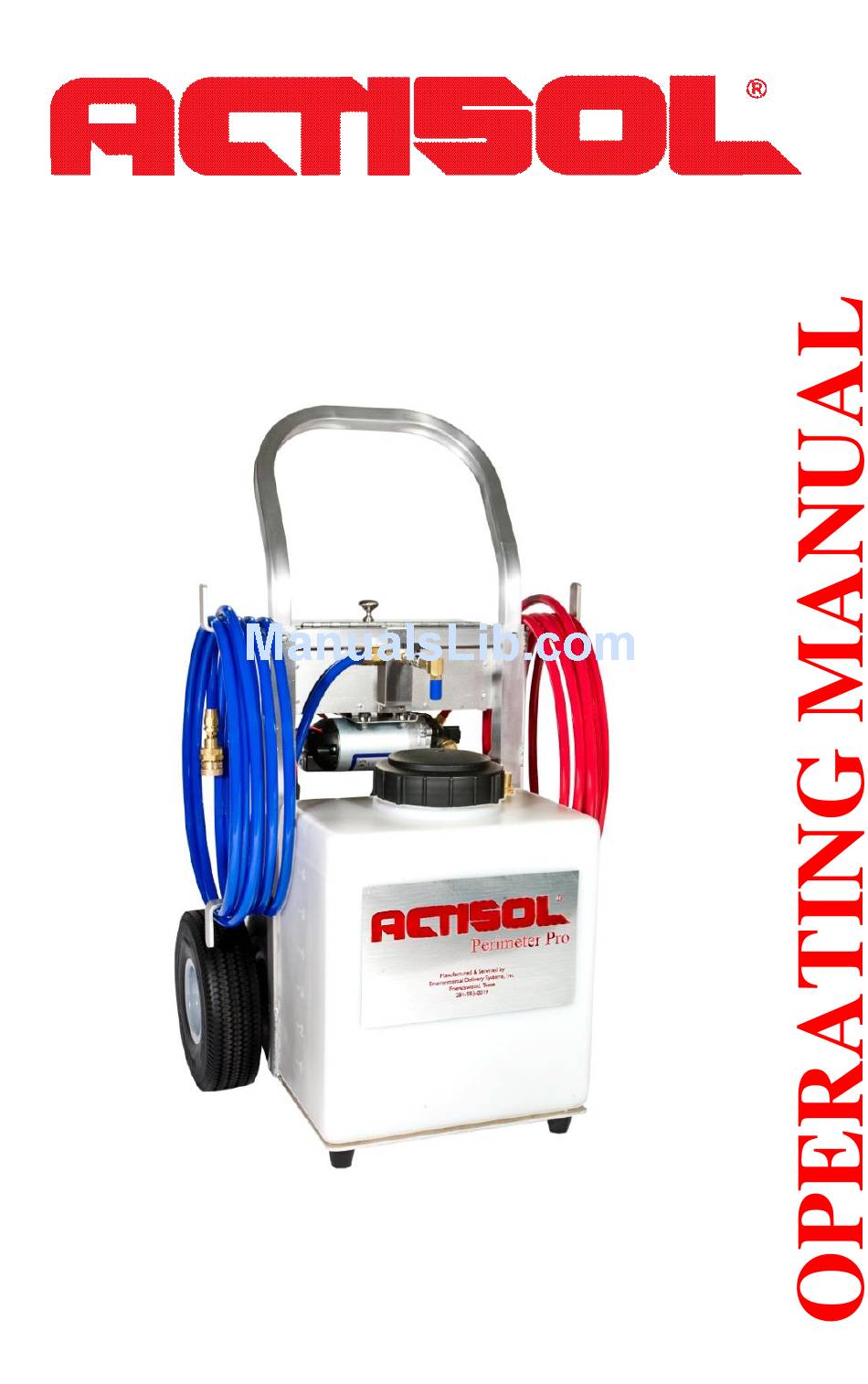

- Page 1 Perimeter Pro B390100...
- Page 2 OPERATING MANUAL ® Thank you and Congratulations on your choice of the Actisol Perimeter Pro, a unique mobile delivery system designed to provide today’s pest management professional with the ability to perform precision exterior and perimeter applications, reduce costs, increase productivity and enhance professional appearance.
-
Page 3: Table Of Contents
Page 11 TROUBLESHOOTING Page 18 SPRAY GUN Exploded Parts Page 19 Item #’s, Product Codes and Descriptions Page 20 PERIMETER PRO FRONT VIEW Exploded Parts Page 21 Item #’s, Product Codes and Descriptions Page 22 REAR VIEW Exploded Parts Page 23 Item #’s, Product Codes and Descriptions... -
Page 4: Operating Instructions
LOADING & UNLOADING ® The Actisol Perimeter Pro should be emptied of any product and/or items to lighten the unit for loading into or out of service vehicle. (Remember water is over 8 pounds per gallon.) ®... - Page 5 ADJUSTING THE HANDLE ® The Actisol Perimeter Pro features an adjustable handle which can be lowered to save on space and raised to improve mobility. Raise the Handle 1. Push in on the two buttons located above the tank on the frame.
- Page 6 Filling / Mixing ® The Actisol Perimeter Pro is designed to be filled and refilled easily from any common hose spigot. Before adding water, be sure the blue valve on the inlet gap fill assembly above the tank is in the cross line (+) position and the 100m filter bag is in place, covering the opening.
- Page 7 / backflow prevent it is best to remove one of them to allow sufficient flow. It is recommended to remove the vacuum break / ® backflow prevent from the inlet / fill hose of the Actisol Perimeter Pro. 4. Turn on water at spigot or hose.
- Page 8 7. Priming the System Sometimes the pump will pick up air in the line from emptying the tank. To achieve full pressure and volume the air must be displaced out of the pump. After refilling this may be achieved by following these steps: 1) Be sure the pump is on, using the on/off switch.
-
Page 9: Spray Gun
SPRAY GUN Tip Shroud Spray Adjustment Lever Trigger 1/4” Inlet Compression Features: 1. The adjustable tip shroud is designed to protect the tip of the gun. 2. The spray adjustment lever and the trigger lock can be activated with just one hand. 3. -
Page 10: Pump
PUMP ® The Actisol Perimeter Pro is equipped with a ShuRflo 8000 series industrial pump. The information outlined by this manual is general and not specific to all 8000 series pumps. “Intermittent Duty” is defined as; operated and/or Caution: frequently started within a period of time that would cause the motor to reach its maximum thermal limits. - Page 11 Pressure Switch Operation The pressure switch reacts to outlet pressure, and interrupts power at the preset shut-off pressure indicated on the pump label. When outlet pressure drops below a predetermined limit (*typically 15- 20 psi. [1-1.4 bar] less than the shut-off pressure) the switch will close and the pump operates until the shut-off (high) pressure is achieved.
- Page 12 Page 9...
- Page 13 SERVICE KITS Service kits are readily available to repair standard 8000 series pumps. Repair kits include simple illustrated instructions allowing easy installation. To insure that the correct kit is received the model number and all name plate data must be included with order. Contact Environmental Delivery Systems, Inc., a SHURflo distributor, or SHURflo directly to order the necessary repair kit.
- Page 14 Page 11...
-
Page 15: Battery
BATTERY Page 11... - Page 16 Page 12...
- Page 17 BATTERY CHARGER – 1202S CHARGER This charger is a solid-state battery charger designed to charge your 12-volt battery and maintain and hold it to a full charge. This charger will keep your battery fully charged and will never over charge your battery. The conventional linear battery charger is an electrical device whereas;...
- Page 18 2. CAUTION-To reduce the risk of injury; charge only 12- volt wet-lead-acid, sealed-lead-acid, gel, and absorbed matt batteries. 3. Do not let charger get wet. 4. To reduce the risk of damage to the plug and cord, pull the plug only to disconnect the charger. 5.
- Page 19 Input Requirements 1. 90VAC to 132VAC 2. 47 to 63 Hz Input AC tolerance +/- 20%. This means the charger will operate satisfactorily in areas where the input voltage is low. This charger is also suitable for every part of the world where 115VAC is used and for Japan where input is 100VAC.
- Page 20 LED is used to show the charging status. When the LED is ORANGE, the charger is in charging or recharging mode and the current is at 1 Amp constant. When the LED is GREEN, the charger is in Standby mode and no current (zero) is flowing.
- Page 21 Protection 1. Reverse polarity protection – provided 2. Short circuit protection – provided 3. Over voltage protection – provided 4. Over current protection – provided 5. AC surge protection - provided Soft Start and Stop Starts and stops gradually. No sudden in-rush current. This protects both the batteries and any other circuits connected to the charger.
-
Page 22: Troubleshooting
TROUBLESHOOTING PUMP WILL NOT START: Fuse or breaker For correct voltage (±10%) and electrical connections Pressure switch operation and correct voltage at switch or motor wire (as equipped) Rectifier or motor for open or grounded circuit ... - Page 23 NOISY / ROUGH OPEATION: Mounting Feet that are compressed to tight Does the mounting surface multiply noise (flexible) For loose pump head or drive screws Is the pump plumbed with rigid pipe causing noise to transmit Page 19...
-
Page 24: Perimeter Pro
PERIMETER PRO – SPRAY WAND ® ACTISOL ITEM DESCRIPTION 300242 High Performance Spray Gun Coupling – 1/2” FNPT x 1/4” FNPT 300243 Unvalved Nipple – 1/4” NPT 300263 Page 20... - Page 25 PERIMETER PRO – FRONT VIEW ® ACTISOL Gap Fill Assembly Discharge Valve Assembly Page 21...
- Page 26 300236 Pan Phillips Screw – 10/32 X 1/2 – Not Shown 300062 Important Sticker – Large – Not Shown 300248 Perimeter Pro Box – Not Shown 300249 300253 #10 Flatwasher 18-8 SS– Not Shown 300254 10-32 Nylon Insert Nut SS– Not Shown In Tank Filter Bag –...
- Page 27 PERIMETER PRO –REAR VIEW ® ACTISOL Page 23...
- Page 28 300236 Pan Phillips Screw – 10/32 X 1/2 – Not Shown 300062 Important Sticker – Large – Not Shown 300248 Perimeter Pro Box – Not Shown 300249 300253 #10 Flatwasher 18-8 SS– Not Shown 300254 10-32 Nylon Insert Nut SS– Not Shown In Tank Filter Bag –...
- Page 29 SERVICE ® If the Actisol Perimeter Pro requires factory service be sure to drain the tank, back flush the wand and hose, and pack the unit in its original carton and packing material for shipping. If the original carton is not available, pack the unit a durable box and protect the unit as best you can.
- Page 30 PRODUCT LIMITED WARRANTY Environmental Delivery Systems, Inc. and it’s products are warranted to be defect free in materials and workmanship under normal use, for a period of (1) year from the date of manufacture or (1) year of use, with proof of purchase. This limited warranty will not exceed (2) years, in any event.
- Page 31 Environmental Delivery Systems, Inc. 314 Morningside Drive Friendswood, TX 77546 1-877-ACTISOL (1-877-228-4765) (281)993-0019—Phone (281)993-1112—Fax www.actisol.com facebook.com/Actisol Copyright© 2015 Environmental Delivery Systems, Inc.
