ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

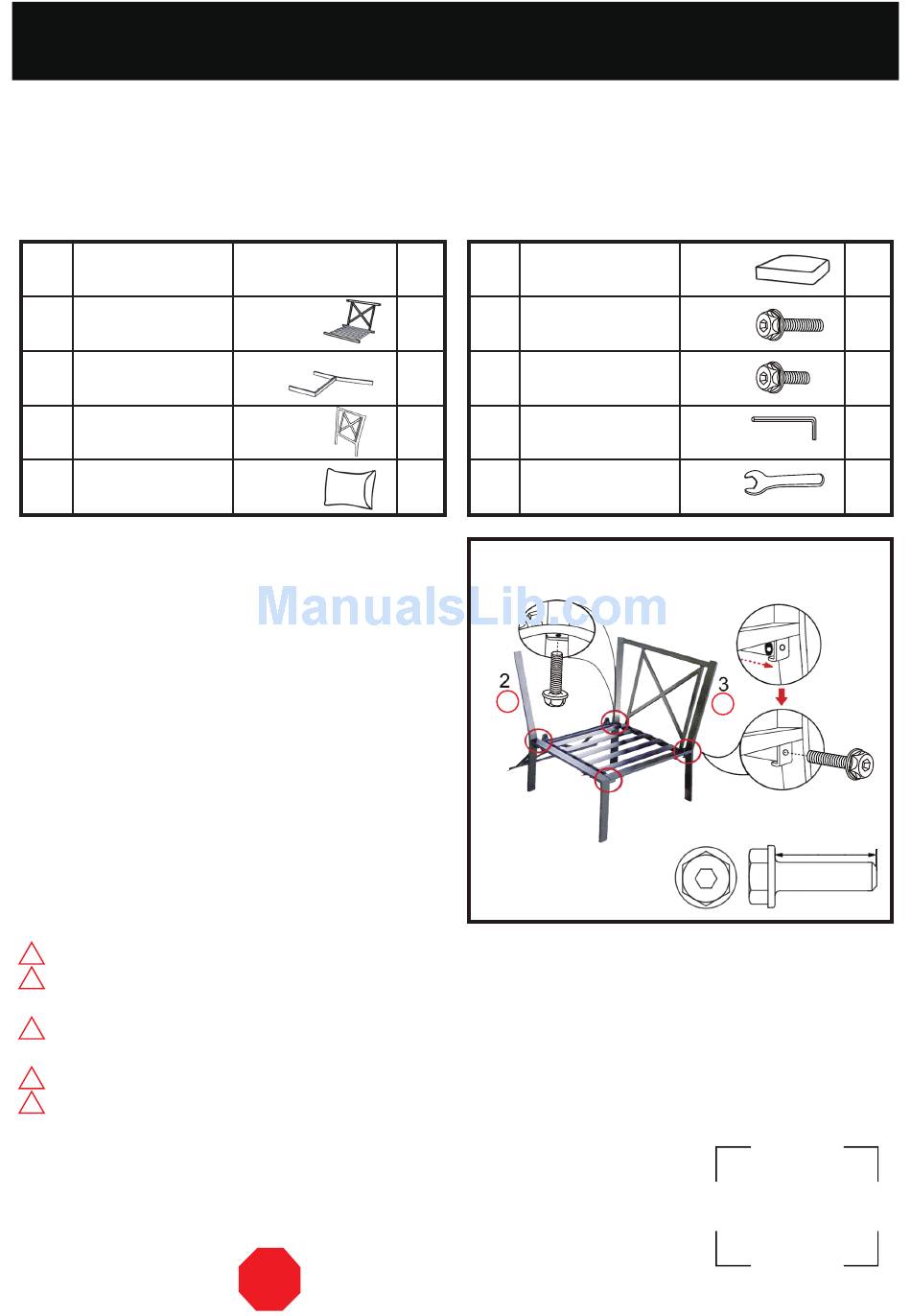

PARTS LIST

PART
MATERIAL CODE
NO.
1
KFS563F-CS01
2
KFS562F-CS03
3
KFS563F-CS02
4
61K563FX00001BA
Attention:
Make sure that each bolt needed for all steps
matches the corresponding figure to ensure proper
assembly.

Step 1:

Insert the seat assembly (#1) into the leg B (#2) and
the leg A (#3). Fasten them together by using bolts
(#6). Keep the bolts loose. See Figure 1.
Note:
The number labels "1, 3" attached on the legs
should coincide with Figure 1, 2 to ensure proper
assembly.
Use the correct bolts as indicated. Do not tighten any of the bolts until is completely assembled.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and
!
fittings required.
!
Keep children away during assembly. This item contains small parts that can be swallowed by
children. Children should always be under direct adult supervision while using this product.
!
Retain these assembly instructions for future reference.
!
Quote the following FQC NO. when contacting the service center.
V-3
INTENDED FOR RESIDENTIAL USE ONLY.
KFS563F
PART
Q'TY
SEAT ASSEMBLY
LEG B
LEG A
BACK CUSHION
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
DO NOT RETURN TO STORE!
STOP
PAGE 1 OF 2
5
61K563FY00001BA
1
6
17C40A0708001YX
1
7
17C40A0702001YX
1
8
17KAA0101----Y4
2
9
17KAC3101----Y3
FIGURE 1
6
3
#6 BOLT M6*20
SEAT CUSHION
BOLT M6*20
BOLT M6*10
HEX. KEY WRENCH 4MM
HEX. KEY WRENCH 10MM
1
1
COURTYARD CREATIONS INC.
1
4
2
1
1
6
20
