2.3.1

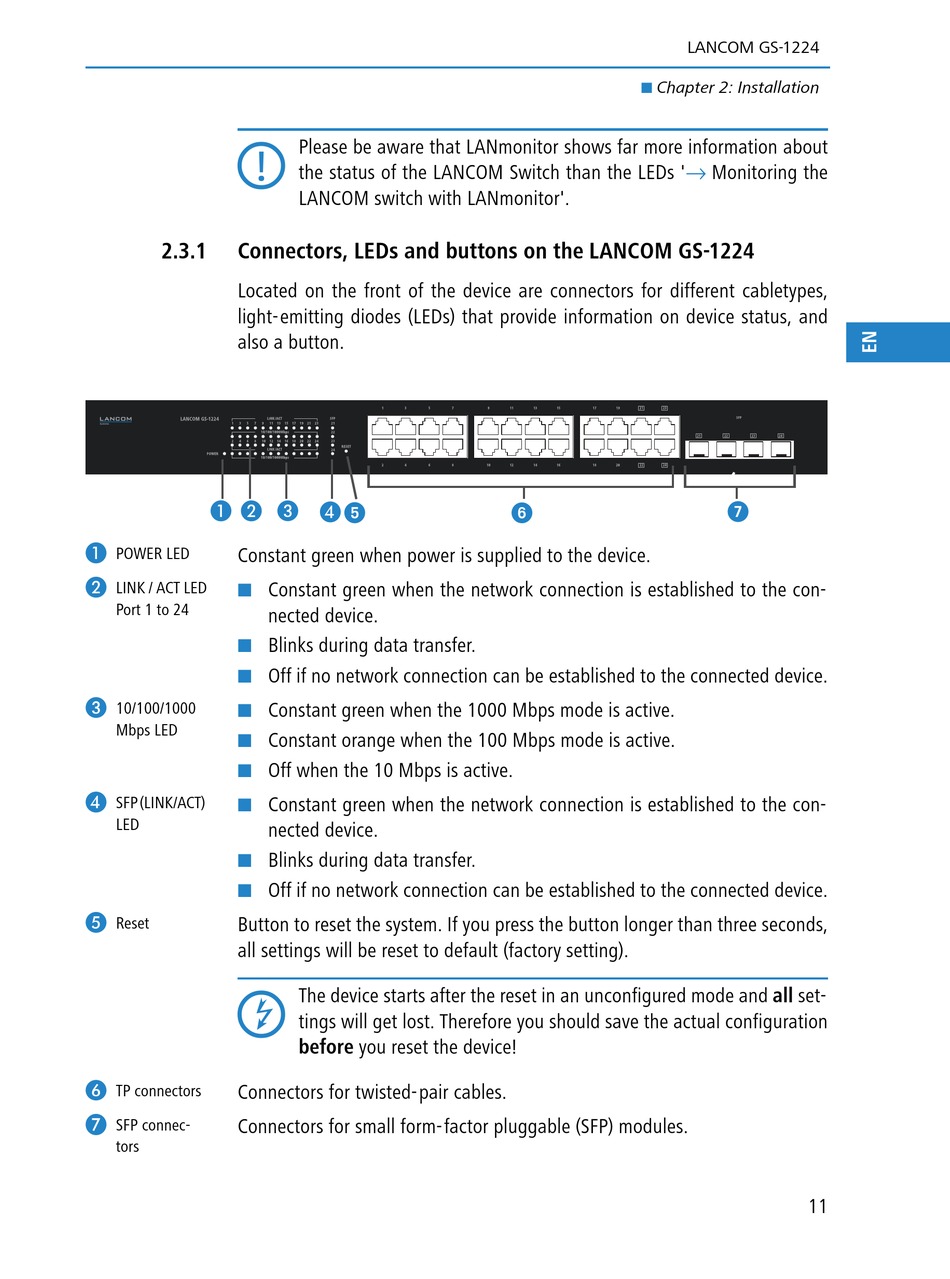

Connectors, LEDs and buttons on the LANCOM GS-1224

Located on the front of the device are connectors for different cabletypes,
light-emitting diodes (LEDs) that provide information on device status, and
also a button.
³ · » ¿
³
POWER LED Constant green when power is supplied to the device.
·
LINK / ACT LED
Port 1 to 24
»
10/100/1000
Mbps LED
¿
SFP (LINK/ACT)
LED
´
Reset Button to reset the system. If you press the button longer than three seconds,
all settings will be reset to default (factory setting).

²
TP connectors Connectors for twisted-pair cables.
¶
SFP connec- Connectors for small form-factor pluggable (SFP) modules.
tors
Please be aware that LANmonitor shows far more information about
the status of the LANCOM Switch than the LEDs
LANCOM switch with LANmonitor'.
Constant green when the network connection is established to the con-
nected device.
Blinks during data transfer.
Off if no network connection can be established to the connected device.
Constant green when the 1000 Mbps mode is active.
Constant orange when the 100 Mbps mode is active.
Off when the 10 Mbps is active.
Constant green when the network connection is established to the con-
nected device.
Blinks during data transfer.
Off if no network connection can be established to the connected device.
The device starts after the reset in an unconfigured mode and all set-
tings will get lost. Therefore you should save the actual configuration
before you reset the device!
LANCOM GS-1224
Chapter 2: Installation
'→ Monitoring the
