4.3 Display Screen

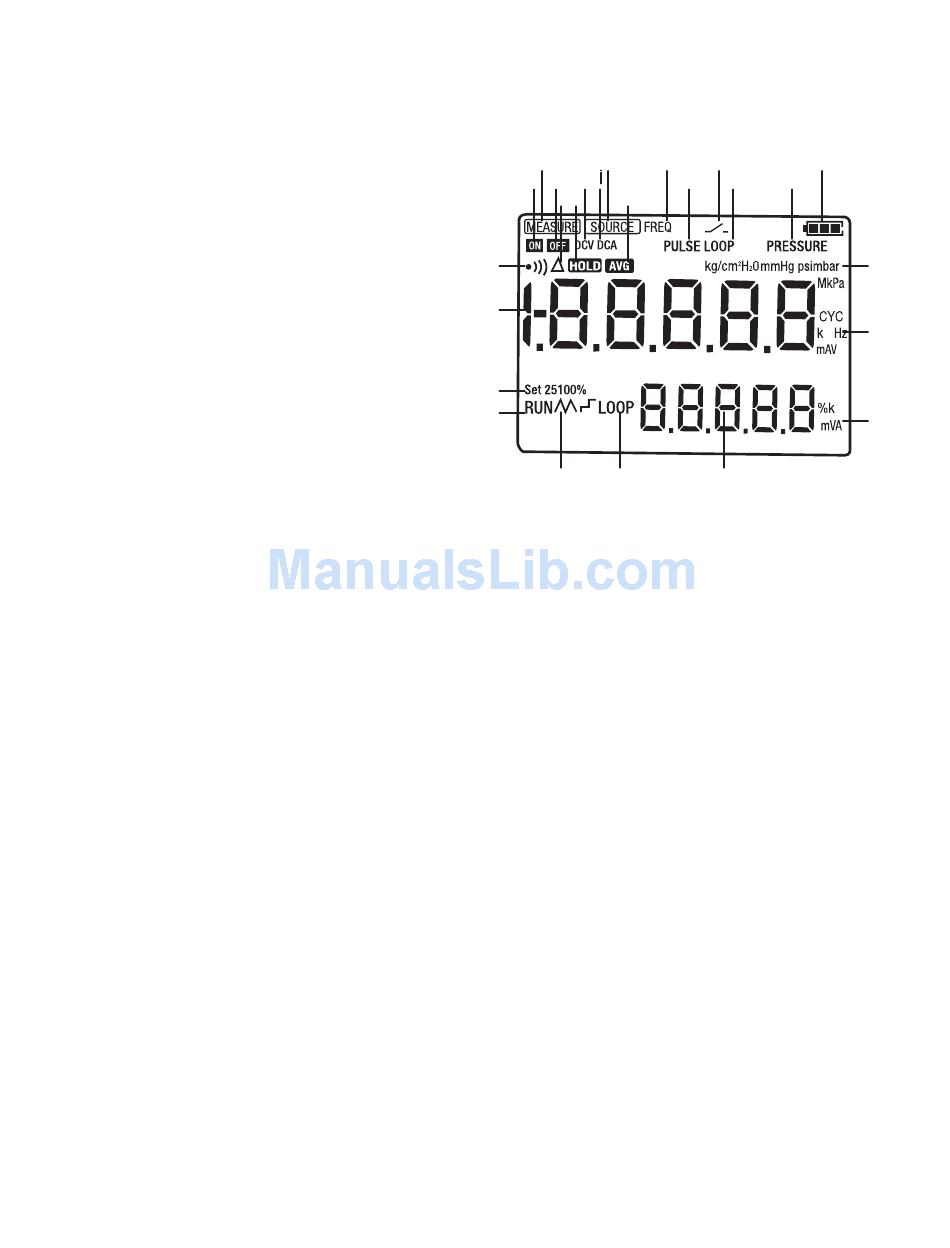

Figure 4 shows a typical display screen.
a. Measurement
b. Source
c. Measurement/Source frequency
d. Not used
e. Battery level indicator
f.
Measurement/Source function ON
g. Source function OFF
h. Measurement/Source voltage
i.
Measurement/Source current
j.
Source pulse
k. 24V Loop Power Supply ON
l.
Not used
m. Beeper for measurement continuity
n. Not used
o. Measured value HOLD
p. Measurement average value
q. Not used
r.
Main numerical display
s. Unit of measure for main display
t.
DCmA 25% or 100% manual step source
u. Start source number of pulses / DCmA auto-stepping or sweeping source function
v. 24V Loop Power Supply ON
w. DCmA auto-stepping or sweeping source
x. Unit of measure for secondary display
y. Secondary numerical display
Figure 4 - LCD display
a
b
f g h
n o
p
m
r
t
u
w
v
Page 6
c
d
e
j
k
l
y
PRC50-EN-V2.1 11/11
q
s
x
