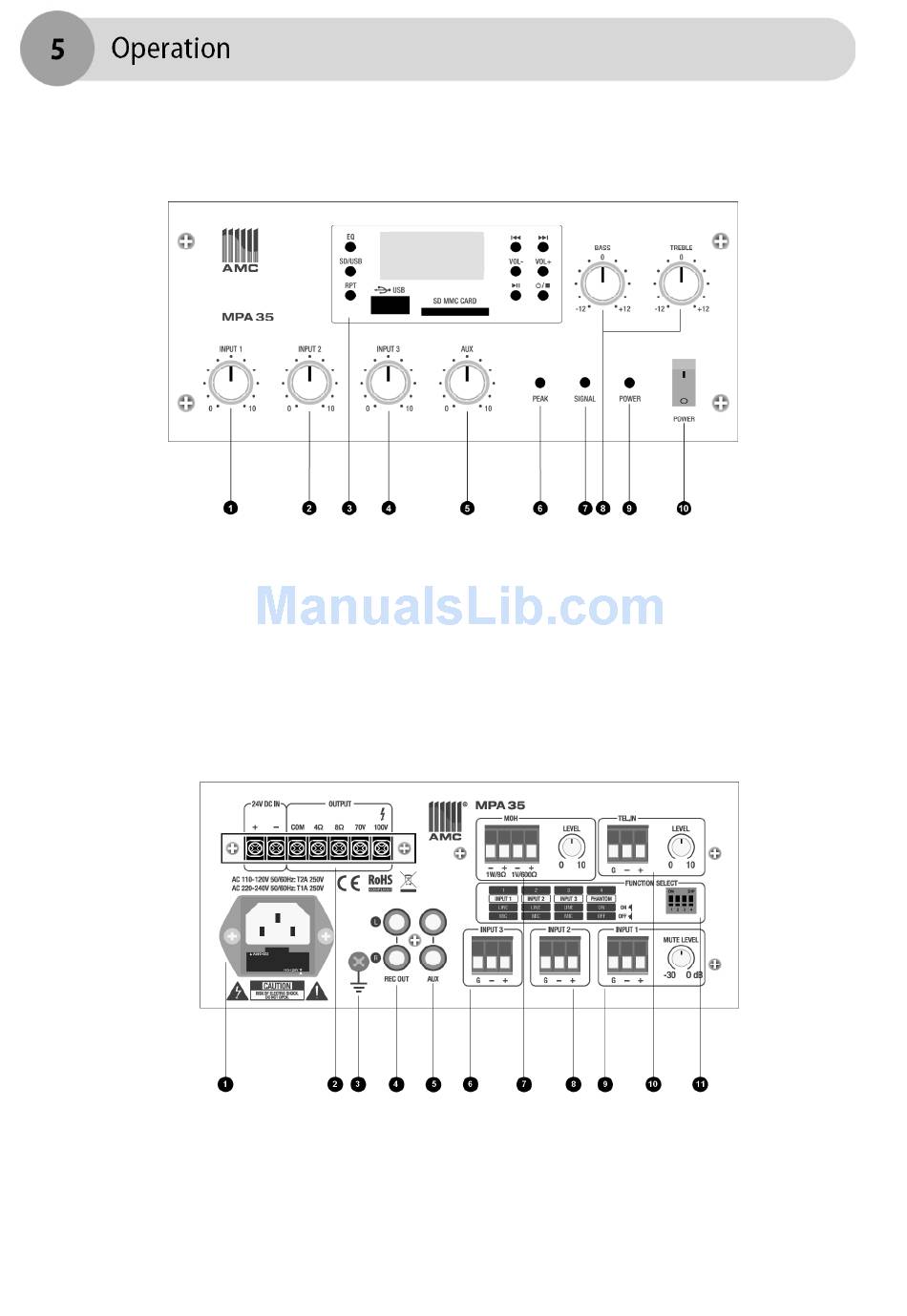

Front Panel
1. Input 1 level control
2. Input 2 level control
3. USB/SD/MMC player
4. Input 3 level control
5. Input AUX level control
Rear Panel
1. Power connector and AC fuse
2. Output terminal
3. GND screw
4. REC output
5. AUX input
6. Balanced input 3
6. PEAK indicator
7. Signal indicator
8. Tone control
9. Power indicator
10. Power switch
7. Monitor output
8. Balanced input 2
9. Balanced input 3
10. Tel. input
11. DIP switch for inputs gain and
phantom power selection
