Important Do not install this equipment in a confined space such as a book case or similar unit. The apparatus should not be dripped or splashed and no objects filled with liquids, such as vases, should not be placed on the apparatus. -
Page 3: Table Of Contents
CONTENTS: Before you start Introductions Features Connection example Operation Front panel Rear panel Function description (amplifier) Function description (media player) Specifications General specifications... -
Page 4: Introductions
Introductions This MPA 35 media player amplifier are designed for public address systems such as: paging, announcements and background music broadcasting in industrial plants, offices, schools, shopping centers, night clubs, dinning rooms, convention halls, auditoriums and recreations area Features Universal balanced phoenix inputs, RCA AUX and record output connectors. •... -
Page 5: Front Panel

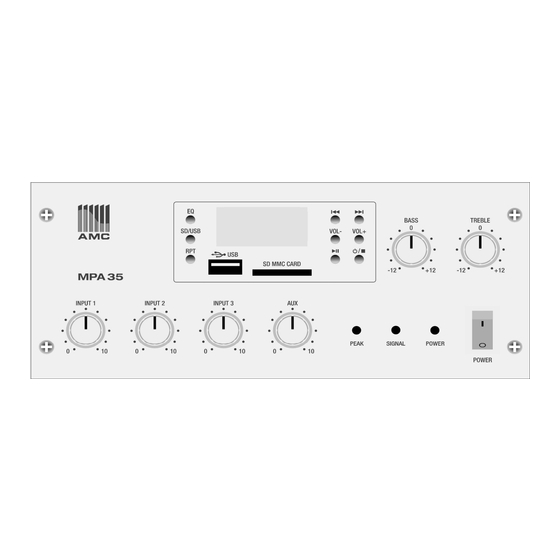

Front Panel 1. Input 1 level control 6. PEAK indicator 2. Input 2 level control 7. Signal indicator 3. USB/SD/MMC player 8. Tone control 4. Input 3 level control 9. Power indicator 5. Input AUX level control 10. Power switch Rear Panel 1. -
Page 6: Function Description (Amplifier)
Function description Amplifier INPUT1, INPUT2 and INPUT3 Level control These knobs are designed for volume level controlling. TONE CONTROL These knobs are used to attenuate a high and low frequency. High frequency can by adjusted in ±10dB range at 10kHz point, low frequency can by adjusted in ±10dB range at 100Hz point. PEAK INDICATOR If signal in the input or output is clipping this LED starts blinking. - Page 7 There is possibility to connect external power supply, external battery etc. Please find the connection example.
-
Page 8: Function Description (Media Player)
REC OUTPUT This line level output is designed for recording. AUX INPUT This is line level audio input, designed for connecting external CD player or FM/AM tuner to amplifier. BALANCED INPUT1, INPUT2 ,INPT3 These balanced phoenix inputs are universal, the sensitivity of this inputs are selectable by DIP switch. When microphone sensitivity is selected phantom power can be activated by using phantom power switch. -
Page 9: General Specifications
GENERAL SPECIFICATIONS Power supply Mains Voltage AC 115/230V, 50/60 Hz or 24V DC Power output 30 W RMS AC Power Consumption 68 W @ RATED POWER 0,5% Total harmonic distortions MIC level sensitivity -50dB LINE level sensitivity -16dB AUX sensitivity -16dB Frequency Response 50 Hz - 18K Hz +/- 3 dB... - Page 10 AMC is a registered trademark of AMC Baltic www.amcpro.lt...
